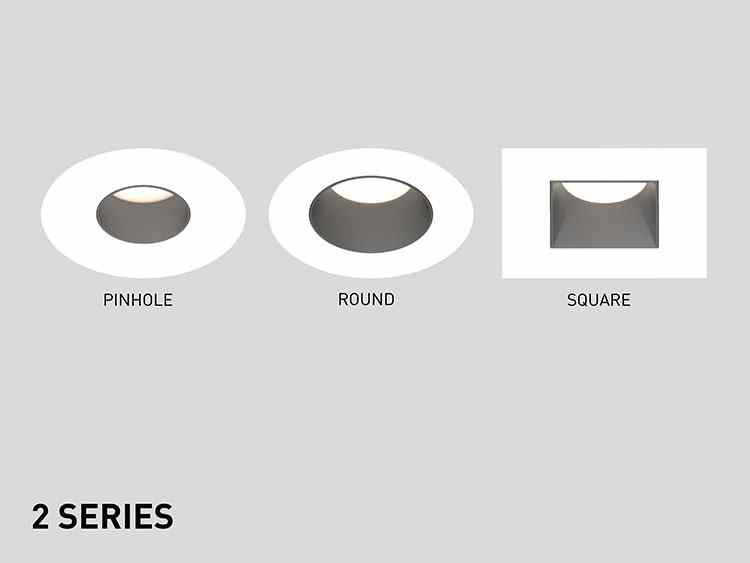

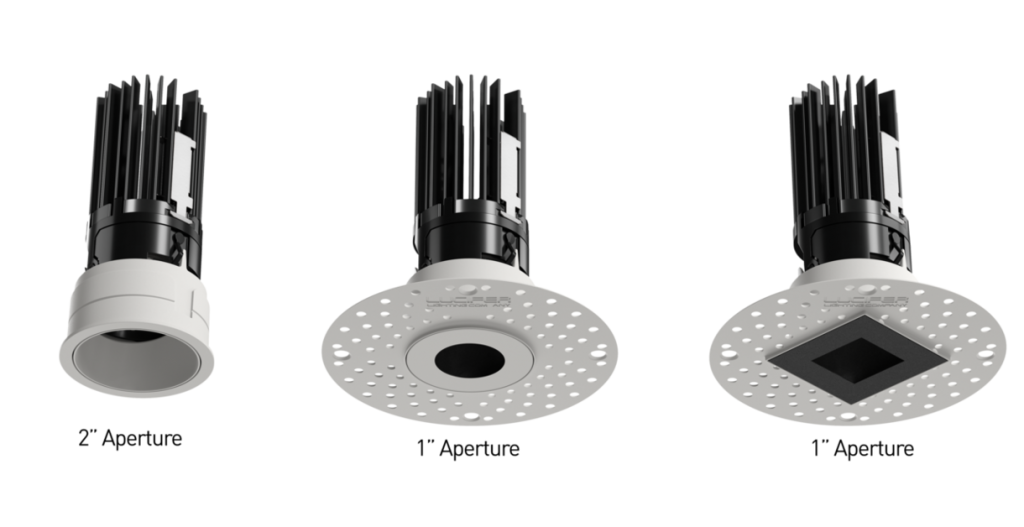

ATOMOS™2 SQUARE ADJUSTABLE

• 2″ Square aperture
• Up to 912lm delivered
• Trim options: flange overlay, trimless, or trimless millwork
• NEW Standard baffle and trim finishes include White, Black, Cashmere Gold, Satin Silver and Burnt Bronze

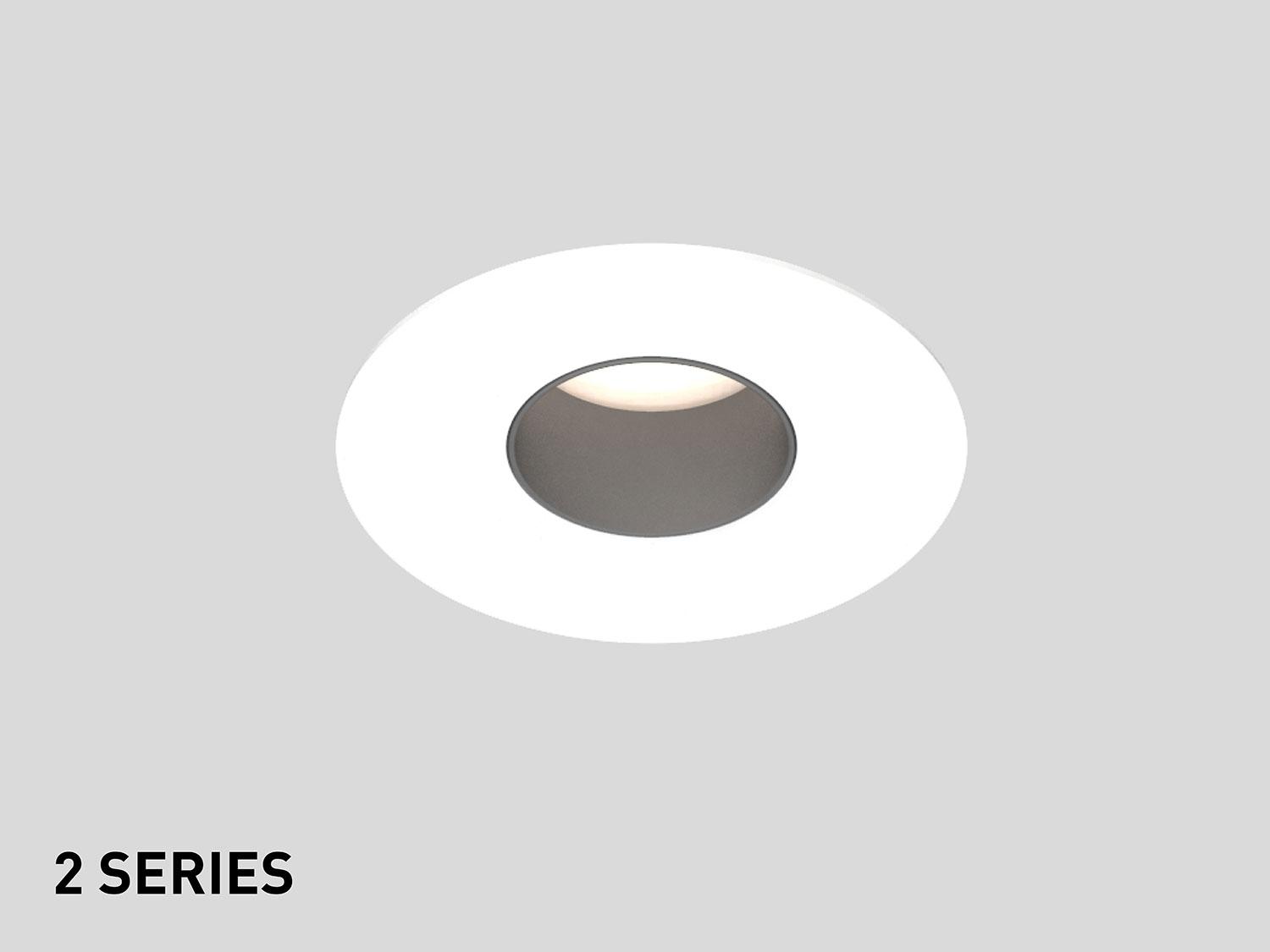

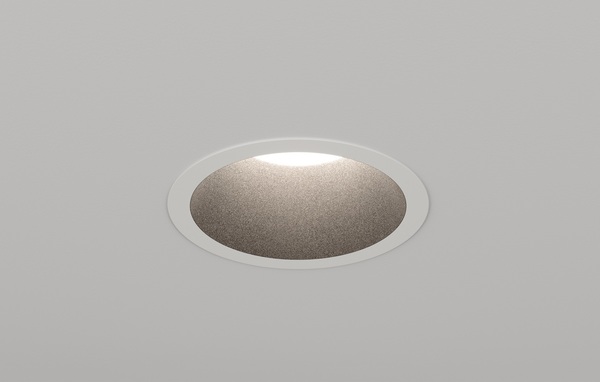

2″ round aperture

• Delivering up to 1080 lumens
• Trim options: flange overlay, trimless, or trimless millwork

1″ aperture available in round and square, exclusively in zero-sightline

• Delivering up to 550 lumens
• Trim options: zero-sightline drywall and zero-sightline millwork

Static white and Warm Dim sources

• 2700K, 3000K, 3500k, 4000K Static white
• 1800K – 3000K Warm Dim

IC/NIC housings for new construction with integral drivers, remodel as well as with driver configurations for export internationally

Offered in fixed distributions of: 15º, 25º, 35º, and 50º

Features our new special accessory: the Adjustable Zoom Optic

• A proprietary optic that allows the client to have real time control of beam spreads without additional replacement optics. This optic offers 24º, 30º, 36º, 42º and 48º with a simple twist of the optic

Compatible in ceilings ranging between .5″ – 2″

New Website Alert!

Click below and take a look around!

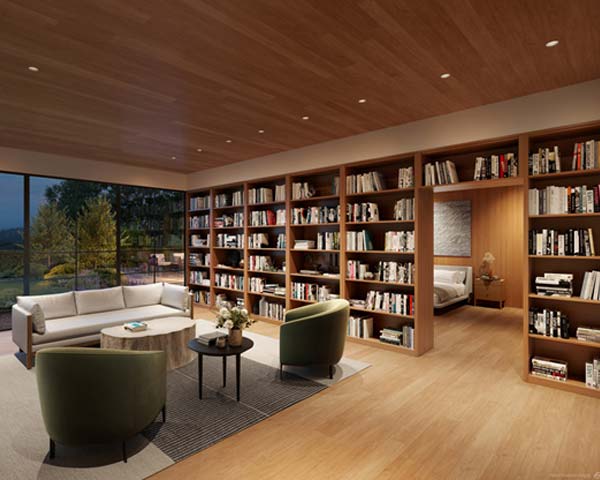

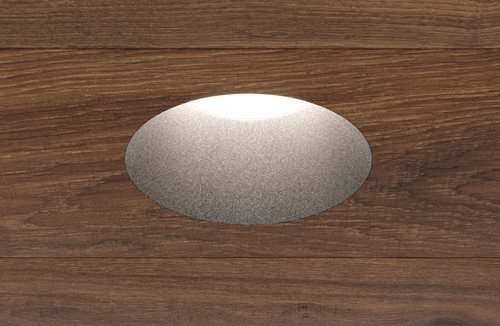

NEW FRAXION®3 Wood Trimless

We announced this offering earlier this year but wanted to share the special features.

• Available with ceiling thicknesses ranges of 0.5” – 2.125”
• Fixture can be landed on seams / joints
• Simplified installation. Does not require a precise cutout, aperture is used as a guide to make the cutout using a trim/compact router after the ceiling has been installed

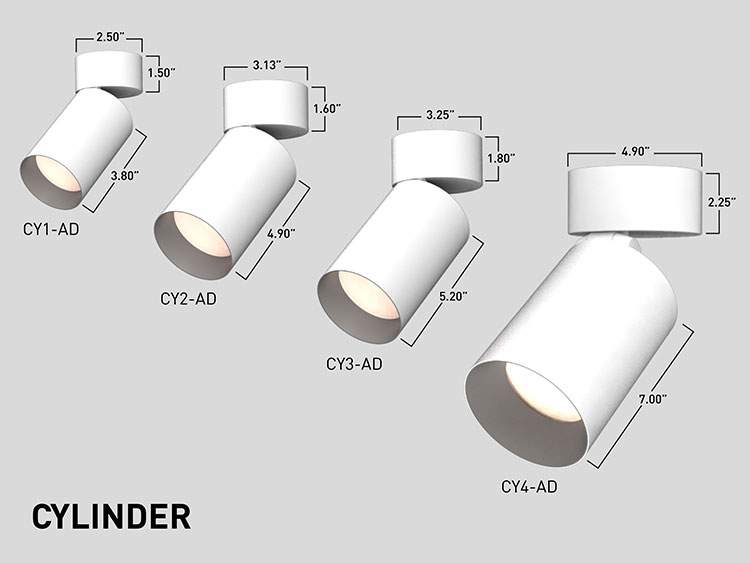

Offering an even wallwash at generous spacing, these geometric surface mount fixtures compliment either the CY2, CY3, SQ2 or the CY4 form factors. Engineered to utilize the same installation and mounting components as existing Cylinder and Squilinder luminaires, with higher lumens in a soft lighting profile.

• Up to 1699 delivered lumens for the CY2, 2200 for the CY3, 4303 for the CY4 and 1769 for the SQ2.
• Optimal spacing should target, 2.3′ (.7 m) on center with 3′ (.9 m) setback for the CY2, 3’ (.9 m) offset and 4’ (1.2 m) on center spacing for the CY3/ SQ2, and 2.3′ (.9 m) on center with 2.3′ (.9 m) setback for the CY4.
• Designed for ceiling heights from 10-12 feet.

10º available now for all point source luminaires, as well as a new dedicated 2200K source and a special Incandescent Warm Dim Profile to complement our Halogen Warm Dim Profile.

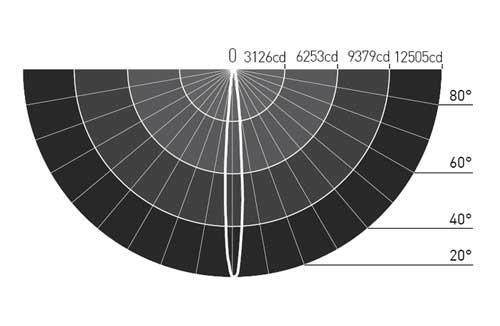

Narrow-Beam Optic with High-Density LED

• Beam angles as tight as 10° for all product families with CBCP as high as 12,500
• Can work with wider optics for broader beam distributions
• Available for all static white sources, excluding 2200K, with 2 SDCM color consistency

2200K LED

• Available for all downlights, trackheads, and Cylinder/Squilinder configurations
• Delivers 390-1200lm for use with all beam spreads, except 10° with 90+ CRI

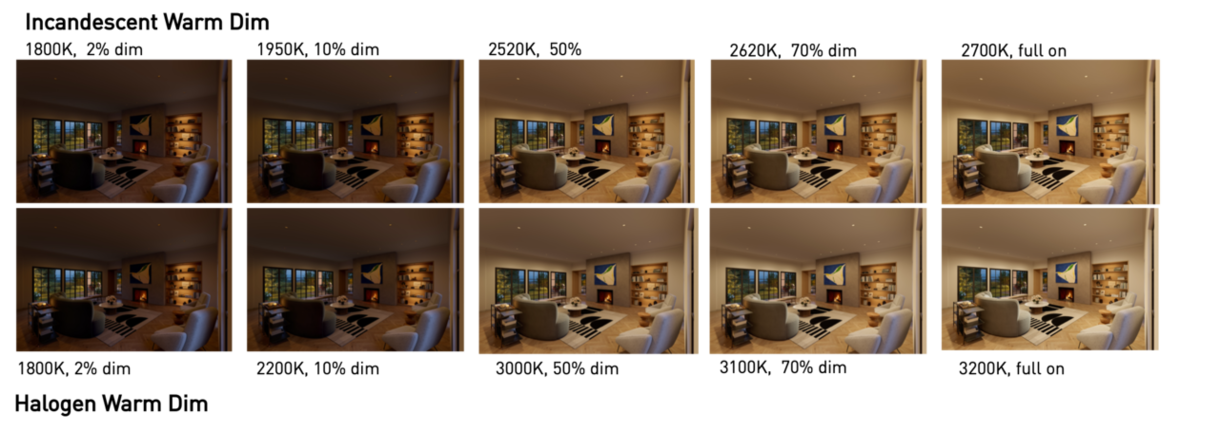

Incandescent Warm Dim Profile

• Ranges from 2700K – 1800K in 90+ CRI
• An alternative Warm Dim Profile, with a smoother dimming curve, representative of a traditional incandescent lamp
• Available for all downlights, trackheads, and Cylinder/Squilinder configurations

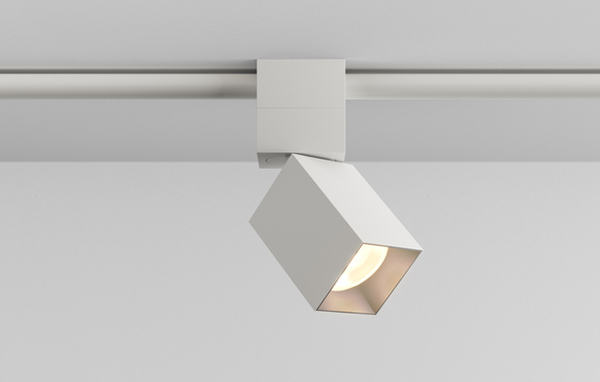

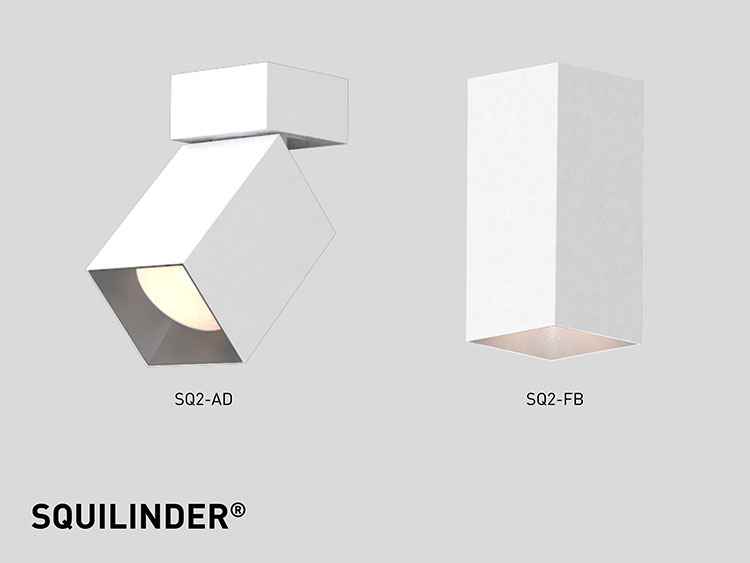

We are offering and shipping the Square CMJB mounting option for our Squilinder®. The ceiling mount junction box perfectly matches the Squilinder profile for a continuous, integrated look where there is exposed ceiling.

• For conduit, 1/2″ or 3/4″
• Die-cast aluminum body with granulated powdercoat finish
• Available for fixed, adjustable, and pendant Squilinder

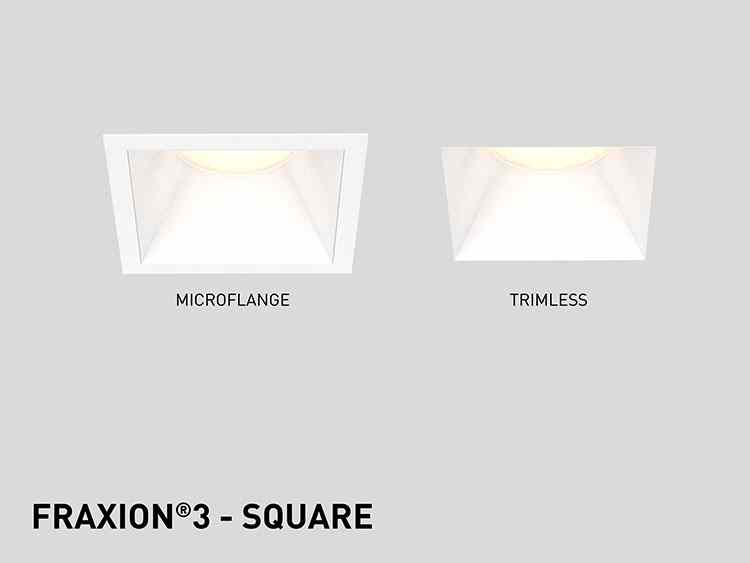

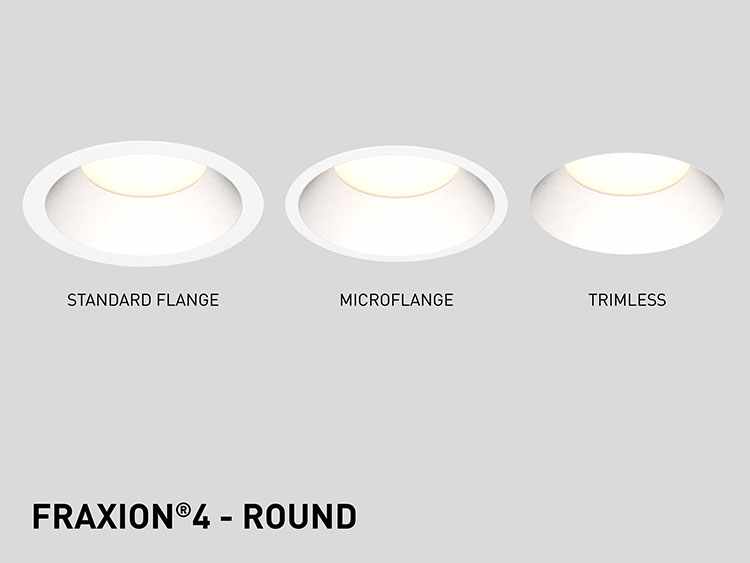

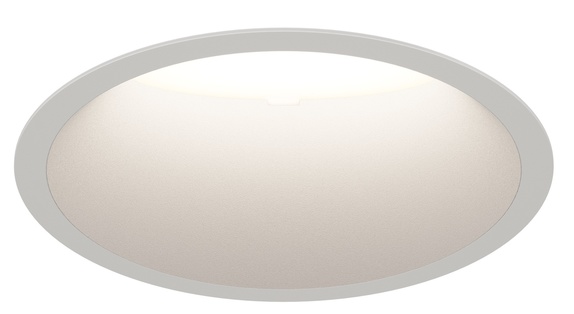

The New 2.0 FRAXION3

All the improvements you asked for and a few you didn’t think possible.

FRAXION3 set the standard for a trimless, low-profile fixture, ideal for residential, corporate and retail settings. Now, we’ve pushed the standard even further, and made FRAXION3 version 2.0 with many of the important features you asked for.

• Available in true trimless for millwork to give you more installation options – Also available in trimless for drywall and with flange overlay.
• Accommodates more ceiling thicknesses, up to 2.125” – That’s 1.125” more than the original FRAXION.
• Improved tool-free adjustment, with new tilt guide for fast and precise aim out.
• More options for integrated drivers, including Phase 0-10V analog and Lutron EcoSystem.
• More options for LED light sources, including 2700-5000K tunable white with a remote driver and dedicated 2200K to create intimate spaces in residential and hospitality settings.
• JA8 compliant for many many product configurations.

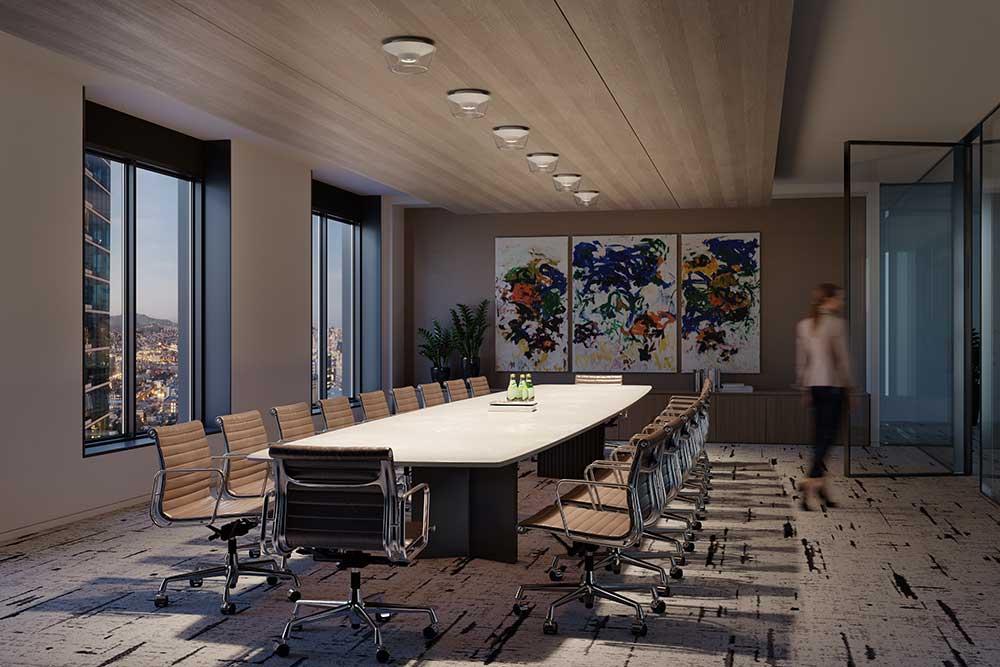

STELLR PENDANT

Introducing the STELLR pendant. This seamless offering allows for three mounting options: surface mount, recessed and trimless. Contact your International Lights representative if you’d like to see a sample.

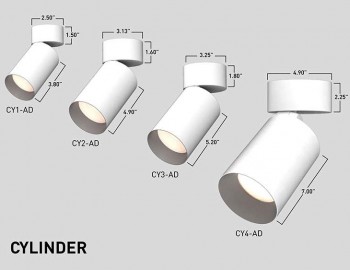

CY4

Lucifer Lighting’s high output CY4 family is released. This complete product offering features fixed, adjustable and wallwash options in surface mount configurations, and a pendant offering that provides direct and indirect light. The CY4 family is our largest and most powerful cylinder offering to date at 4.9” in diameter, 10” long and delivers up to 4300 lumens. The wallwash option is our first asymmetric distribution that matches the fixed body product and doesn’t require any onsite tilting. The webinar can be watched here.

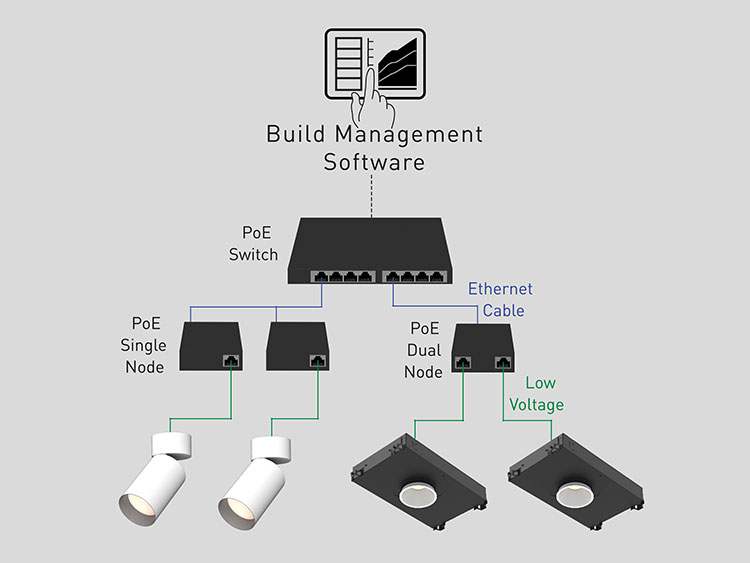

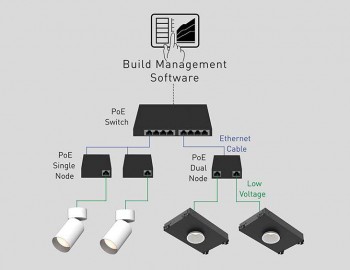

Power over Ethernet (PoE)

Our broad assortment of PoE ready luminaires is compatible with numerous industry leading PoE providers, including selections from our downlight, surface mount and suspended product families.

• Enables intelligent software controlled lighting
• Provides a scalable IoT platform
• Eliminates the need for AC or high voltage wiring to light fixtures
• Reduces installation costs for “pipe and wire”
• Maximizes building efficiencies
• Compatible with Igor, Platformatics and Molex PoE systems

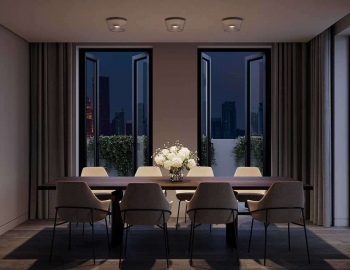

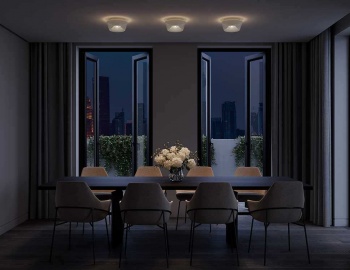

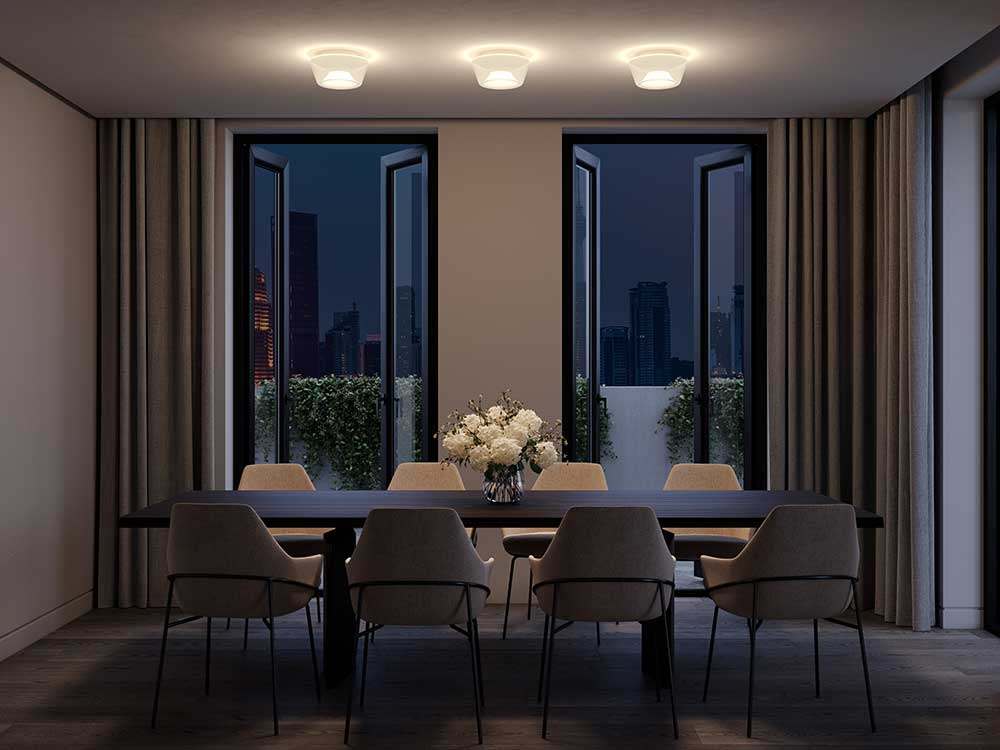

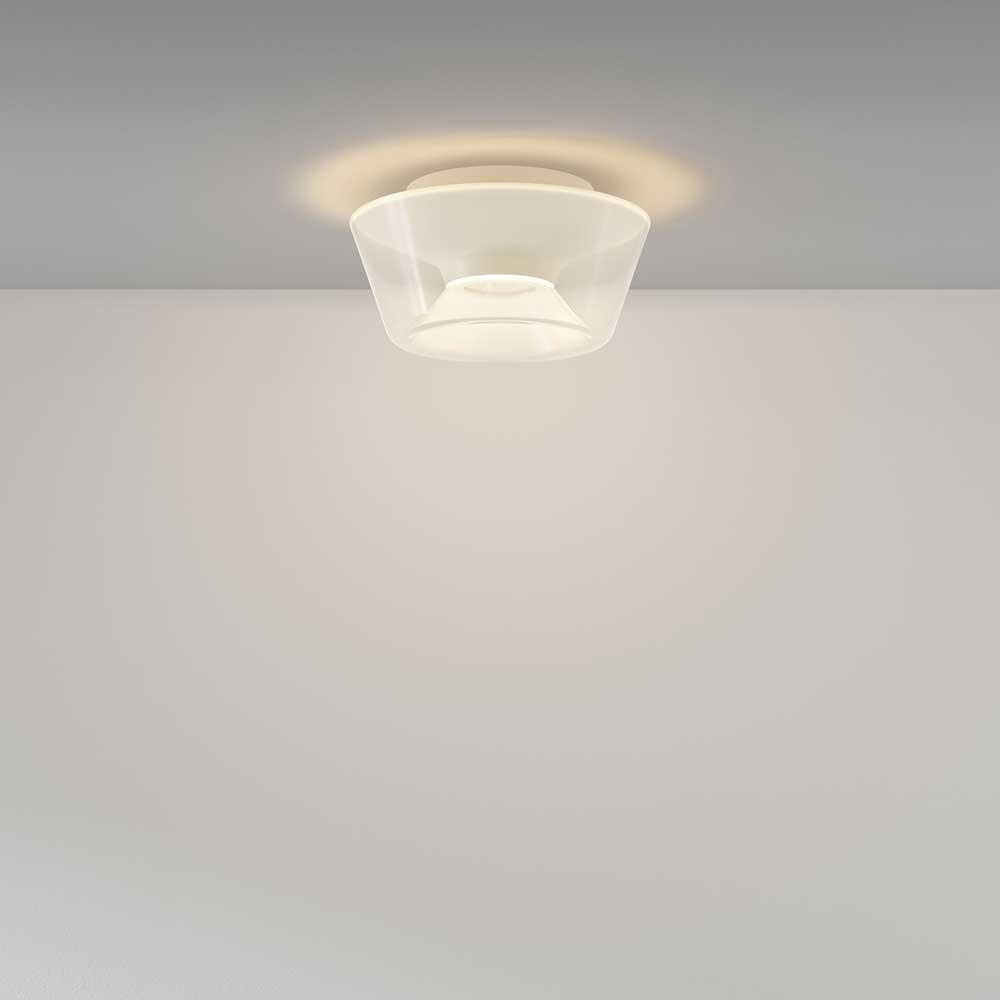

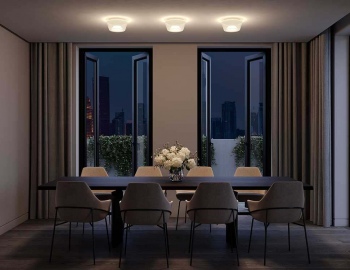

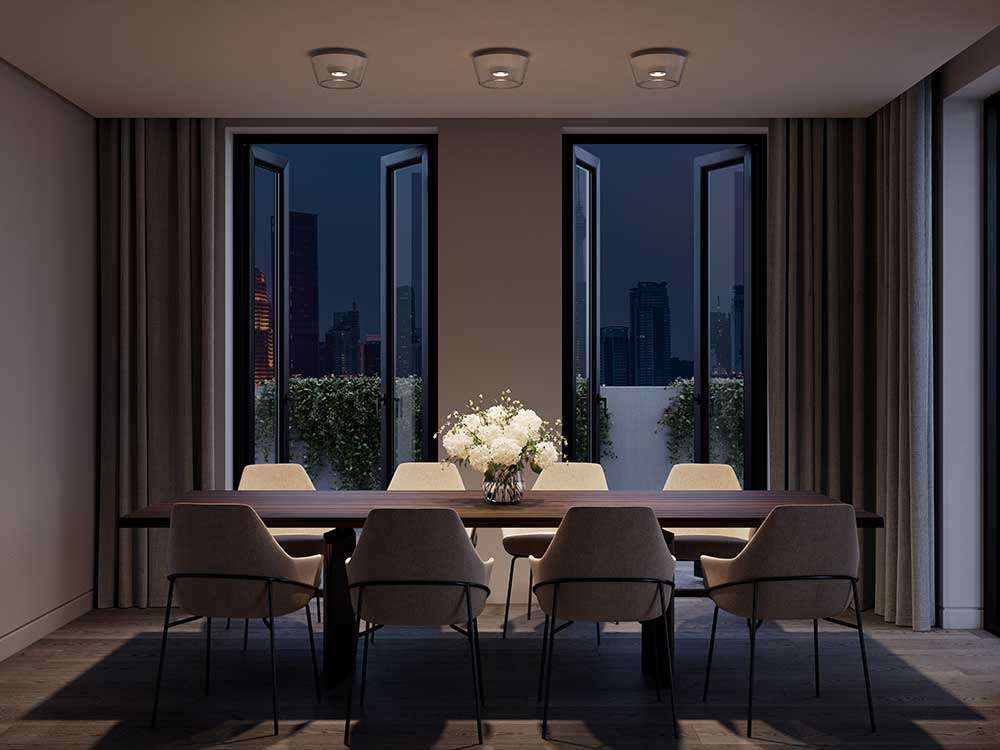

STELLR

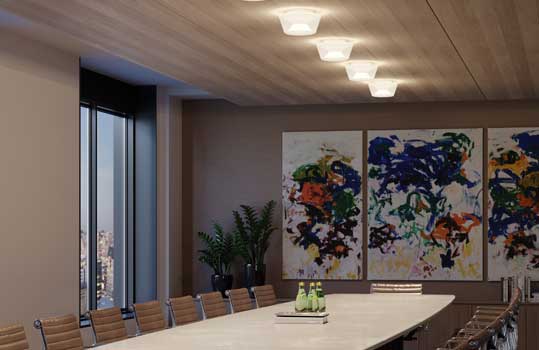

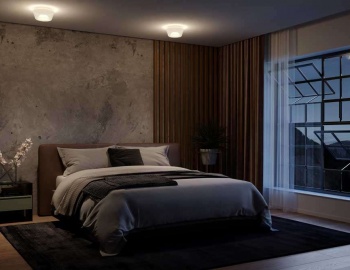

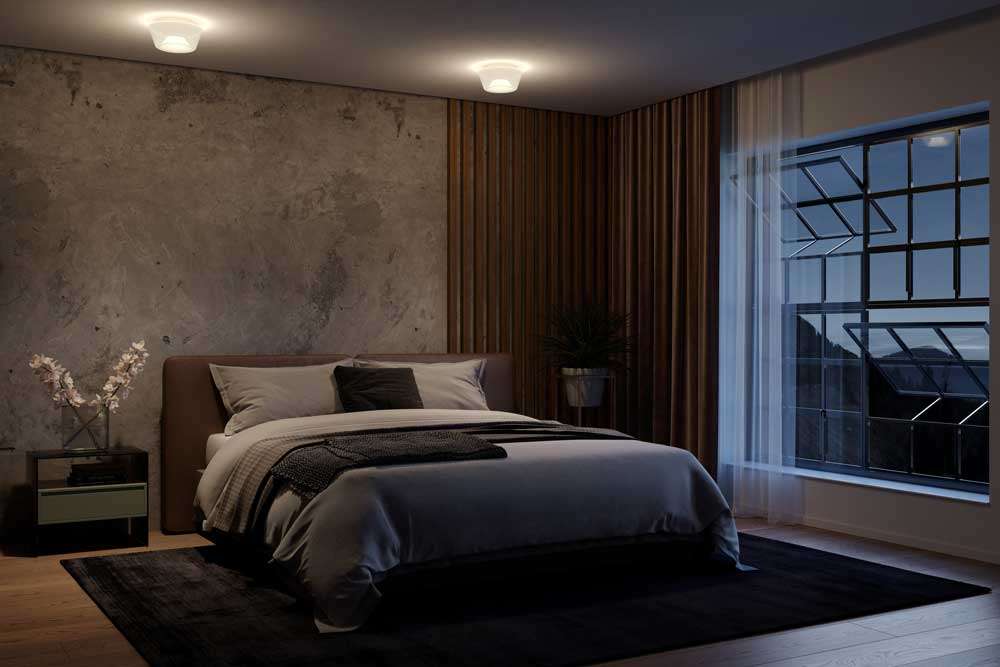

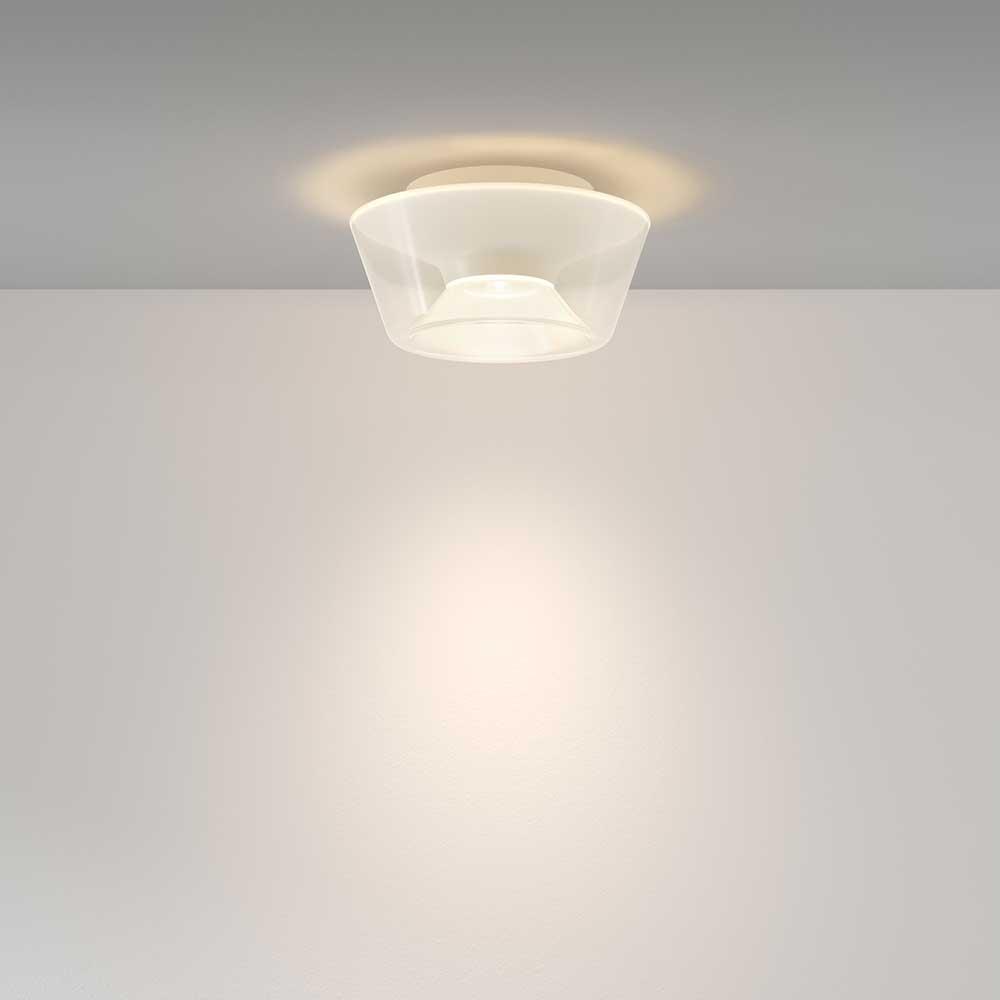

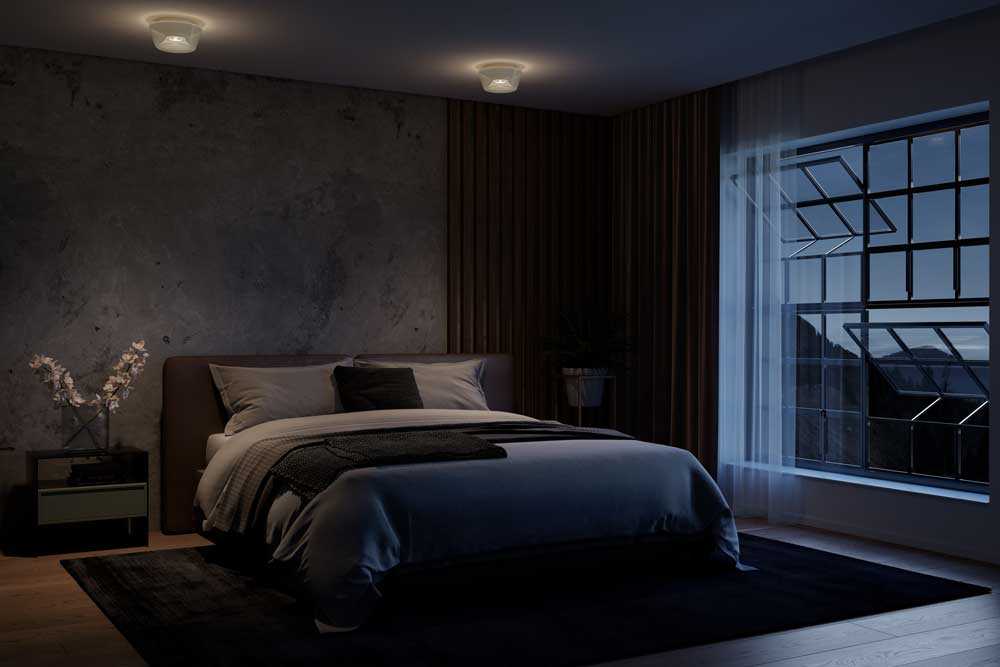

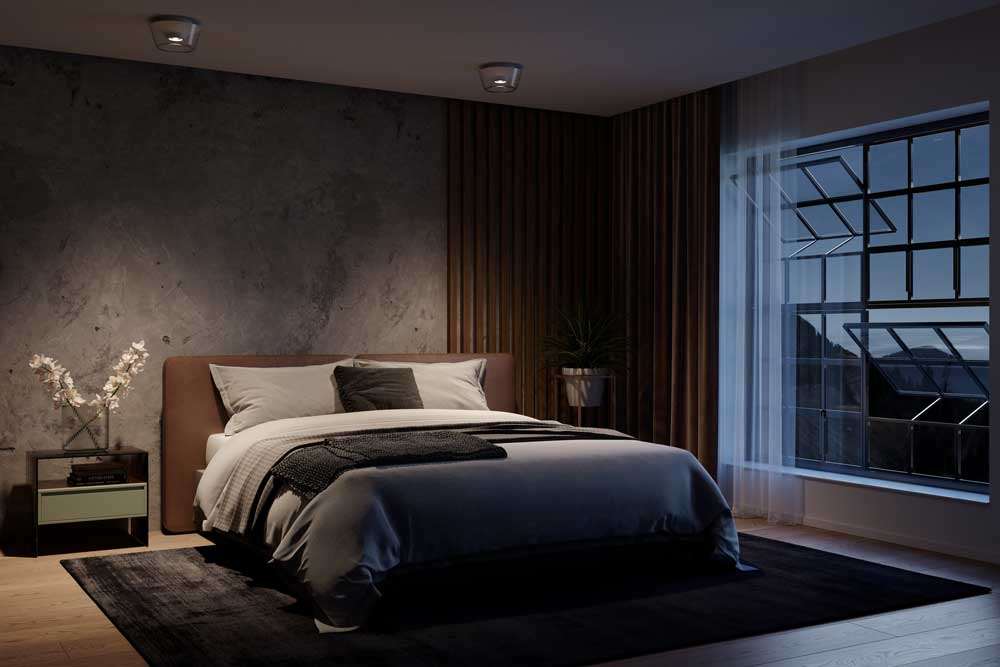

STELLR is a surface mount fixture that combines the qualities of point source and volumetric lighting in a timeless and elegant package. For focused task lighting, a downlight can be illuminated for drama and intimacy. To soften the space or to fill in the walls or ceiling, a volumetric source may be added. The hidden volumetric source may also be used independently for general ambient lighting.

We recognize that surface mount fixtures are being used more and more. Lucifer Lighting’s ethos is DESIGN.DEFINE.DISAPPEAR. How could we make a surface mount product disappear? We wanted to create something sexy, unexpected. Something magical. We wondered: is it possible to get varied and unique effects in a room from one single fixture?

STELLR occupies a larger form factor than the traditional downlight because it conceals a secondary hidden light source offering volumetric illumination.
