Motion Sensor & Photocell

• Provides multi-Level control based on motion and/or daylight contribution
• Meets Title 24 requirements
• Controls 0-10 VDC LED drivers
• Rated for wet and cold locations.
• All control parameters are adjustable via a wireless configuration tool capable of storing and transmitting sensor profiles
• IP66 rated with choice of lenses for wet and outdoor locations.
• Provides line voltage On/Off switching and 0-10 VDC dimming control
• High and low modes fully adjustable from 0 to 10V
• Adjustable ramp up and fade down times
• Enhances site security

Powder Coating

Powder coating services are available for custom finishes.

Quick Mount Interlock System

Bird Spikes

House Side Shield

Dark Sky Full Cut-off Shield

Area Light

T320LED-G2
11″ Skyline

Watts: 40W, 70W, 100W

Wall Mount

T321LED-G2
14″ Skyline

Watts: 150W, 200W

Flood Light

T322LED
22″ Skyline

Watts: 250W, 300W

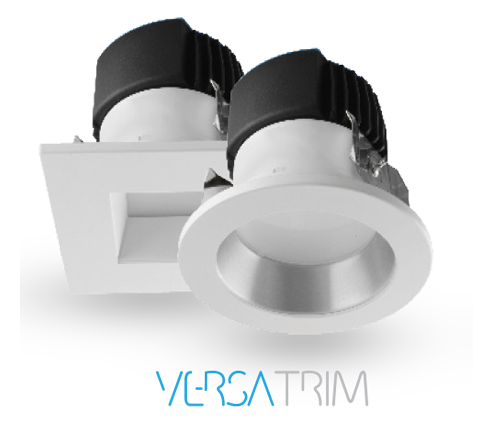

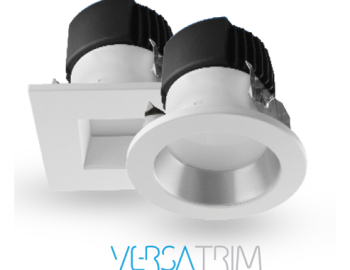

The VersaTrim is the ideal product for energy efficient lighting in existing, remodel, or new construction applications. This product may be used in hospitality, health care, commercial, retail,
and residential applications.

• Size: 3”, 4”, 6”
• Lumen Package: 800, 1100 lm
• Color Temperature: 2700K, 3000K, 3500K, & 4000K
• CRI: 93+
• Interchangeable Reflector/Baffle, Trim
• More!

Mix & Match

Reflector or Baffle

Dimming Options

Available in 10 driver selections.

• Standard Triac/ELV, 120V.
• 0-10V dimming in 800 lumens, 120-277V.
• 0-10V dimming in 1100 lumens, 120-277V.
• Lutron Hi-Lume Premier Ecosystem 0.1% w/soft on, fade to black dimming, 120-277V.
• Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming,
  120-277V.
• Hi-Lume 1% 2-wire, 120V
• Hi-lume 1% EcoSystem/3-Wire L3D Driver
• eldoLED Eco 1% Dim (0-10V), 120-277V.
• eldoLED Solo 0.1% Dim(0-10V), 120-277V.
• eldoLED Solo 0.1% Dim(DALI), 120-277V.

Emergency Battery Options

Optional emergency battery with up to 90 minute illumination time. 800 lumens only

RFL3

Size: 3″
Lumen:800 lm
SDCM: 2-step binning
CRI: 93+
Listed: CSA classified, CSA Wet Location, JA8, Title 24

RFL4

Size: 4″
Lumen: 800 lm, 1100 lm
SDCM: 2-step binning
CRI: 93+
Listed: CSA classified, CSA Wet Location, JA8, Title 24

RFL6

Size: 6″
Lumen: 800 lm, 1100 lm
SDCM: 2-step binning
CRI: 93+
Listed: CSA classified, CSA Wet Location, JA8, Title 24

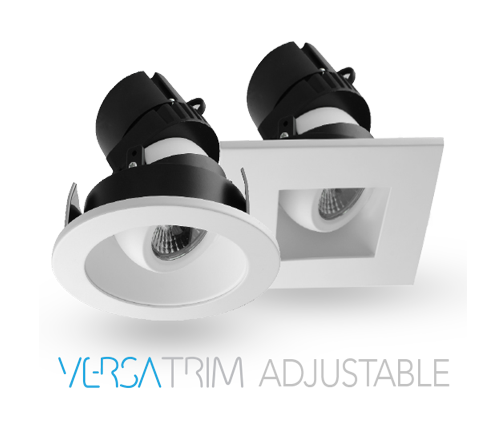

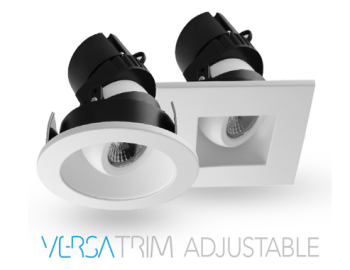

RFL4A

Size: 4″
Lumen: 900 lm
Adjustable:
0-30˚ Tilt, 360˚ Rotation
Beam Angle:
18˚, 38˚, 60˚
CRI: 93+
Listed: CSA classified, CSA Damp Location, JA8

RFL6A

Size: 6″
Lumen: 900 lm
Adjustable:
0-30˚ Tilt, 360˚ Rotation
Beam Angle:
18˚, 38˚, 60˚
CRI: 93+
Listed: CSA classified, CSA Damp Location, JA8

Energy Star Partner

ENERGY STAR is the government-backed symbol for energy efficiency recognized by more than 90% of American households. ENERGY STAR certified homes and apartments are designed and constructed to be significantly more energy efficient than those built to code while lowering homeowner utility bills and providing superior comfort, quality, and durability.

Check out the list below of our Energy Star Compliant fixtures

The VersaTrim Cylinders provide a classic look in two diameter and three height options. Select from a downlight, adjustable ,or pull down configuration in a wide range of baffle/reflector and trim options. Available in multiple mounting configurations in either directional or bi-directional light outputs.

Aperture

Available in
4″ or 6″ diameter

Height

Available in 8″, 12″, or 16″ height, consult factory for made to order lengths

Mounting

Available in Cable, Pendant, Surface or Wall mount configuration

Styles

Available in downlight, adjustable or pull down

VersaTrim 4″ Cylinders

Lumen Package:
800, 1100 lm

Color Temperature:
2700K, 3000K, 3500K, 4000K

Dimming:
Triac/ELV standard.
0-10V(120-277V)

Styles:
Downlight, Adjustable, Pull Down

Compliance/Listed: – CSA Listed – Energy Star – Title 24, JA8

VersaTrim 6″ Cylinders

Lumen Package:
800, 1100 lm

Color Temperature:
2700K, 3000K, 3500K, 4000K

Dimming:
Triac/ELV standard.
0-10V(120-277V)

Styles:
Downlight, Adjustable

Compliance/Listed: – CSA Listed – Energy Star – Title 24, JA8

Optional GFCI or USB Outlet.
Multi Purpose Benefits
– Security
– Resourceful

Optional House Side Shield
Shield Benefits
– Light Control
– Create ambiance

Photocell
Photocell Benefits
– Energy Savings

Emergency Battery
Cold pack emergency battery for
harsh environments.

Powder Coating
Project specifications, RAL # required.

PRIME Architectural Cylinders

PRIME Architectural Cylinders from Rayon Lighting are truly something special, with a classic cylinder style updated with modern performance and features. PRIME cylinder family includes die cast knife edge appearance with a lumen range from 1055-2495, interchangeable reflectors, optics and accessories.

Lumen Range:
1055 lm – 2495 lm

IES Files:
Available on our product page for project fine tuning.

Field Changeable:
Optics: 18°, 30°, 50°, 80°
Filters: Solite, Frosted and honeycomb

– Lumen Range: 1055 – 2495 lm
– Diameter: 4″
– Length: 10″
– Color Temperature: 27000K, 3000K, 3500K, 4000K
– CRI: 93+ CRI
– Optics Lens: 18°, 30°, 50°, 80°
– Bevel: Die cast with knife edge look

– Lumen Range: 1055 – 2495 lm
– Diameter: 6″
– Length: 12
– Color Temperature: 27000K, 3000K, 3500K, 4000K
– CRI: 93+ CRI
– Optics Lens: 18°, 30°, 50°, 80°
– Bevel: Die cast with knife edge look

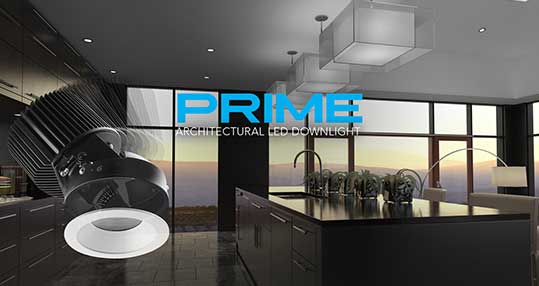

PRIME LED Architectural Downlight

PRIME Series is the ideal product for architectural energy efficient lighting in commercial and residential applications.

The PRIME Series is available in 3″, 4″, and 6″ aperture size and may be used in residential or commercial applications. This series is offered in downlight, wall wash, or adjustable and is available with die cast or spun aluminum trims, with an assortment of color temperatures, optics and dimmable drivers.

Optional Distribution Types: Type I, II, III, IV, V

Made to order: Powder Coating

Motion Sensor & Photocell:

• Provides multi-Level control based on motion and/or daylight contribution
• Meets Title 24 requirements
• Controls 0-10 VDC LED drivers
• Rated for wet and cold locations.
• IP66 rated with choice of lenses for wet and outdoor locations.
• Provides line voltage On/Off switching and 0-10 VDC dimming control
• Adjustable ramp up and fade down times
• Optional daylighting set points feature automatic calibration, or permit manual adjustment
• Enhances site security

Dual Driver

Rayon Lighting’s Wall Mount fixtures come standard with a 0-10V driver,
120V-277V. The optional “Dual Driver” feature meets regional requirements where there are two drivers within a fixture and each LED module is synced to a dedicated driver. This provides redundant power sources for reduced luminaire outages and can be utilized for bi-level dimming. Below are compatible “Dual Driver” fixtures offered by Rayon Lighting.

Single Circuit (0-10V driver, 120-277V)

(standard version)

Dual Circuit (0-10V driver, 120-277V).  Two drivers in a fixture where each LED module is synced with a dedicated driver.

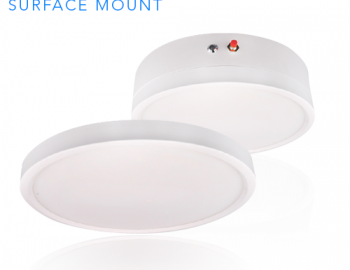

RBS7 (120V; TRIAC/ELV)

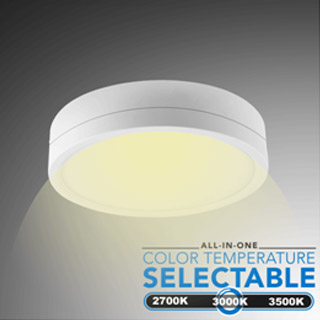

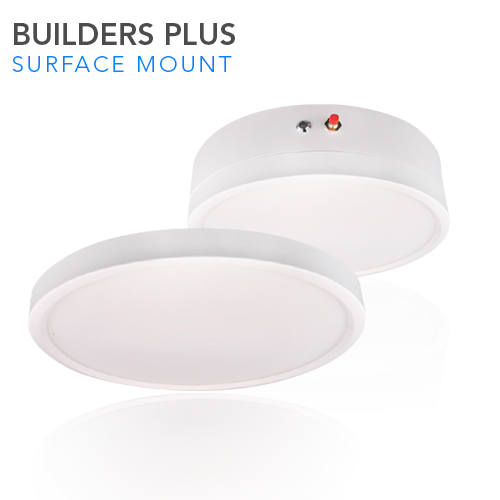

7″ Builders Plus LED Surface Mount Luminaire

• Lumen: 1000 lm
• Color Temperature Selectable: 2700K, 3000K, 3500K
• Voltage: 120V
• Optional: Emergency Battery Box

RBS7 (277V; 0-10V)

7″ Builders Plus LED Surface Mount Luminaire

• Lumen: 1000 lm
• Color Temperature Selectable: 2700K, 3000K, 3500K
• Voltage: 277V

EMERGENCY BACK BOX (120V Version)

Optional emergency battery available for a minimum of 90 minutes. Self test function, over-charge/discharge protection all within durable die-cast aluminum material. Emergency battery output: 3.6W (350lm delivered lumens).
Only available for 120V Version.

RBS7 with EM Back Box (120V)

RBS7 with Empty BackBox (120V)

RBS7 with Empty Back Box (277V)

SLIM PROFILE

Extends just 3/4″ below the ceiling plane with a minimal visual profile. Optional empty backbox may extend the look for scaling purposes or to match in applications where an emergency backbox is utilized.

SLIM EDGE

Designer edge provides a minimalistic appeal that blends seamlessly into the ceiling

Wall Mount Lighting Solutions

Rayon Lighting offers a multitude of wall mount LED lighting solutions dedicated to commercial applications. As the lighting landscape is continually evolving, Rayon Lighting continues its efforts to stay up to date and offer solutions for each demand.

Multifamily/High Rise Solutions

Today’s video will address Multifamily Solutions.  As common with other applications, there is not a one size fits all approach.  We will review specific locations within multifamily applications where Rayon Lighting may provide various fixture options.  These may address functionality, performance, or budget requirements.  Either way, we hope this video will be an educational tool for your next multifamily project….so lets get right to it.
