Curvia

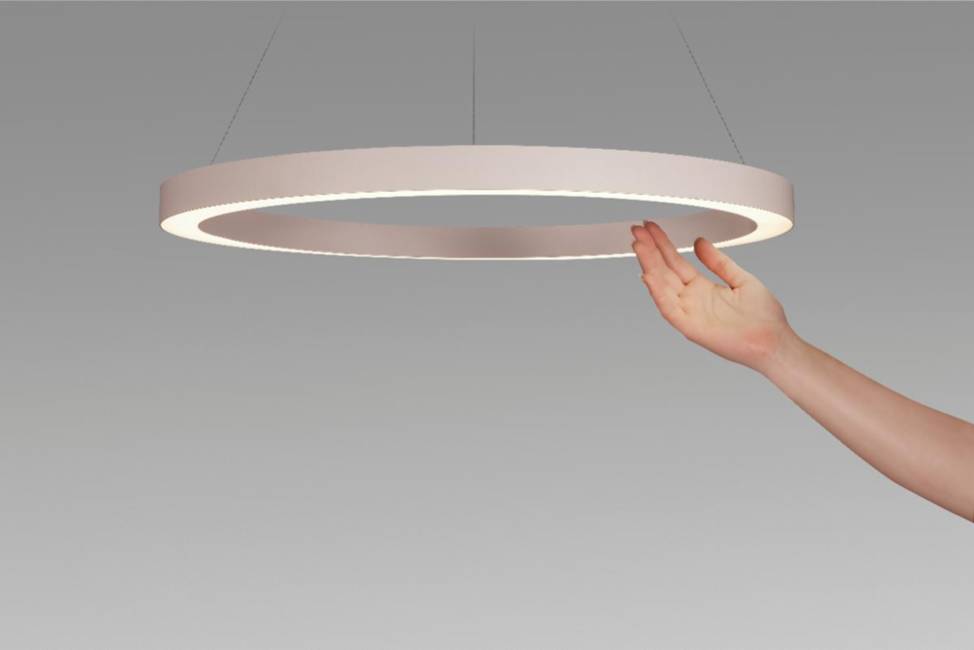

Introducing Curvia, a refined, curved line of high-performing, meticulously crafted luminaires. Available in four widths, three mounting options, and four shapes, along with the capacity to create a countless number of patterns, the lighting family is optically equipped with either our sophisticated new Diamond Prism OpticTM (DPOTM) or our High-Efficiency Lambertian Optic (HLO). With all of these features and more, Curvia has upped the standard for curved lighting solutions.

• 4 widths: 1″, 2″, 3″, 4″
• 3 mounting options: recessed, surface, pendant
• 4 shapes: ring, capsule, square, rectangle
• 2 optics: new DPO^TM, HLO
• New proprietary SupremeGrip^TM (SG^TM) technology
• Direct or Direct/Indirect distribution

Curvia 2 Prism- Soft Appearance, Powerful Performance

From a distance, a Curvia fixture with DPO^TM looks almost unlit as it illuminates with such soft magnificence. But behind the warm glow, Curvia luminaires with DPO^TM pack a powerful punch with an unprecedented efficacy of up to 150 lm/W, an industry-leading UGR across all optic color options, and an efficient batwing distribution to top it all off.

• 4 optic finishes
• Exclusive to Curvia 2 luminaires
• 2″ wide
• Up to 150 lm/w in both curved and straight segments
• 18″ or 36″ radius

Curvia with HLO – State-of-the-Art Lensing

Curvia fixtures with HLO are enhanced with SupremeGrip^TM (SG^TM) technology, an innovation devised in-house that negotiates Curvia’s curves with finesse, securing and stabilizing the HLO while maintaining Curvia’s elegant proportions.

• Proprietary SG^TM technology
• Snap-in lens
• Comfortable uniformity
• Countless shapes to be created
• Seamless curves
• 2″ radius to infinity

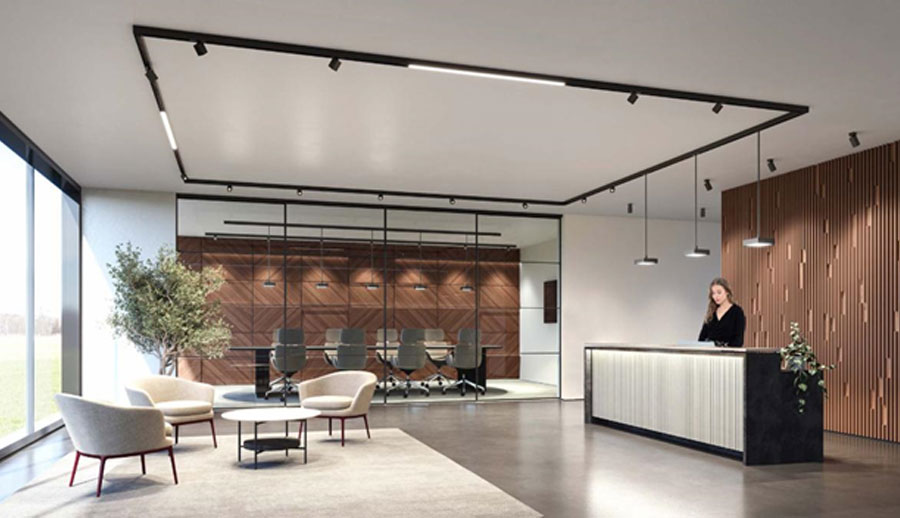

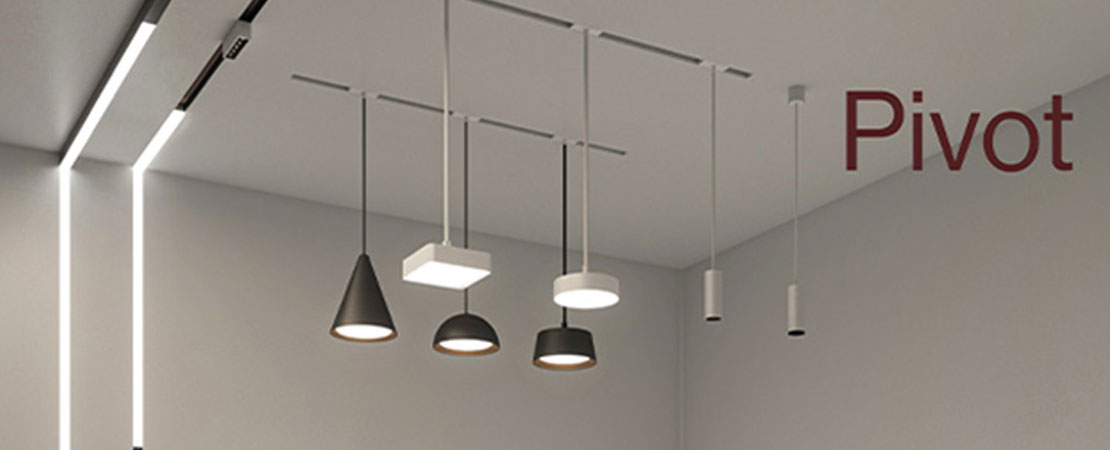

New Pendant Modules

Pivot’s new pendant modules are adapted versions of already existing Lumenwerx fixtures: Shell Round, Shell Square, Forma Caret, Forma Tote, and Forma Cupola. Each is equipped with the same features as their non-Pivot counterparts have, but with the benefit of a track mounting system.

Pivot’s new pendant modules:

• Pivot Shell Round
• Pivot Shell Square
• Pivot Caret
• Pivot Tote
• Pivot Cupola

2 sizes: 8″ and 12″

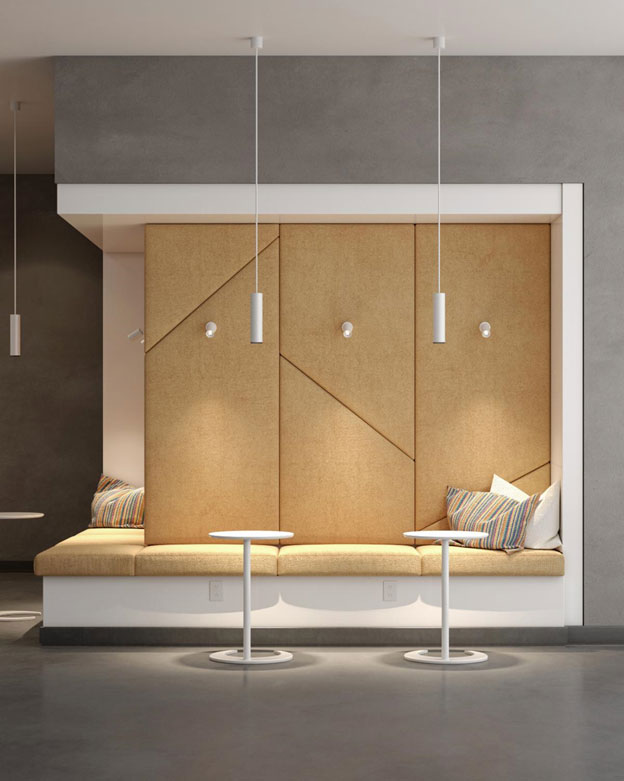

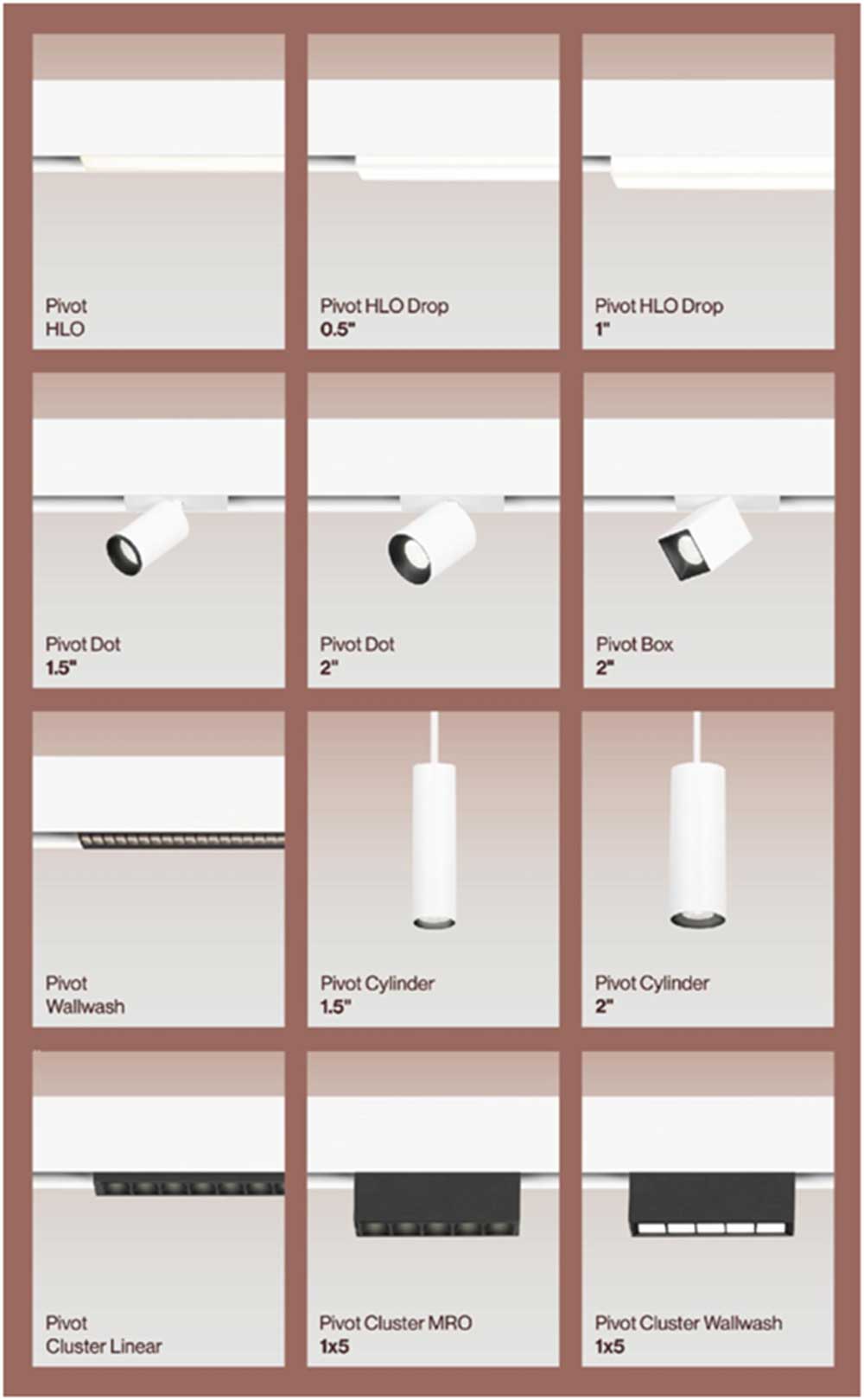

Standalone Modules

Also new to the Pivot offering are the Pivot Standalones, individual mounting systems for the Pivot Dot, Box, and Cylinder modules. They can be used as solo lighting fixtures, or complement or supplement Pivot track systems on a larger scale. Pivot Standalones are surface mounted on ceilings or walls and equipped with flat, conduit feed, or direct mount canopies, which can be round or square.

Pivot Standalones available for:

• Pivot Dot – 1.5″ and 2″
• Pivot Box – 2″
• Pivot Cylinder – 1.5″ and 2″

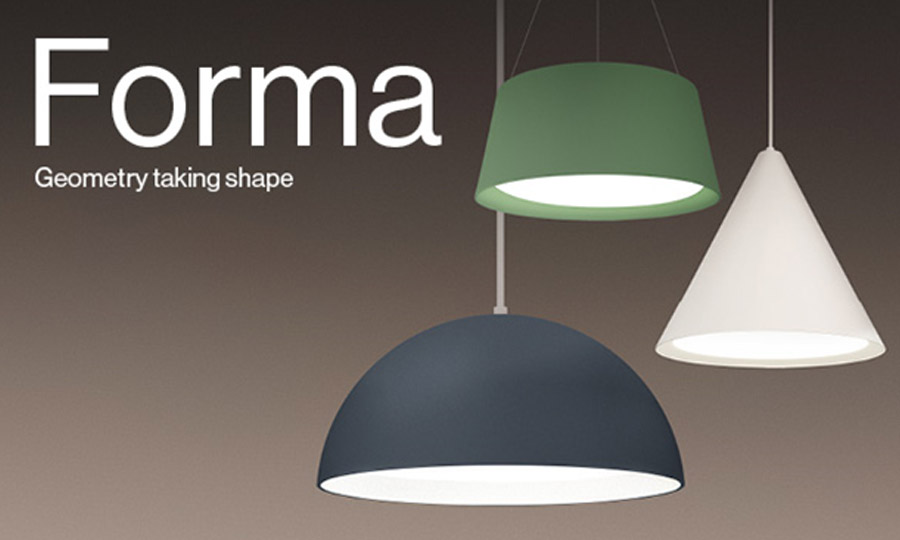

Form and substance

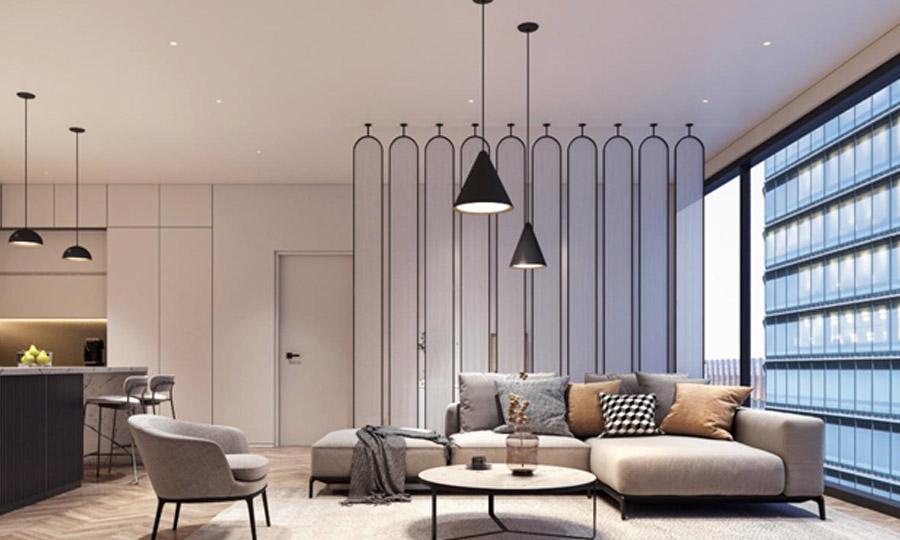

We are pleased to welcome three new pendants—Forma Caret, Forma Tote, and Forma Cupola—to the Lumenwerx offering. Eye-catching and geometric, they can be used to add a layer of complexity and interest to an interior setting or to simply amp up its cool factor in unexpected ways. Supported by our Unity Pointed (UP) technology, the luminaires deliver lens brightness uniformity across all shapes and sizes within the same lumen output.

• 3 shapes: Caret, Tote, and Cupola
• 3 sizes (Tote): 8″, 12″, and 24″
• 2 sizes (Caret and Cupola): 8” and 12”
• Static White, Duo, Sola, Quadro, Full Spectrum and Bios

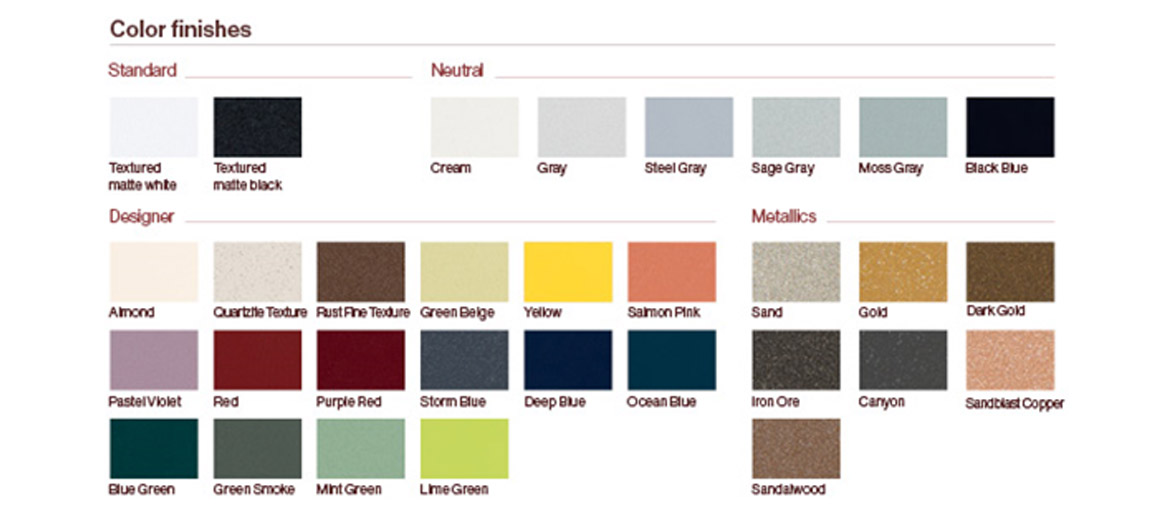

• 2 standard and 31 premium colors

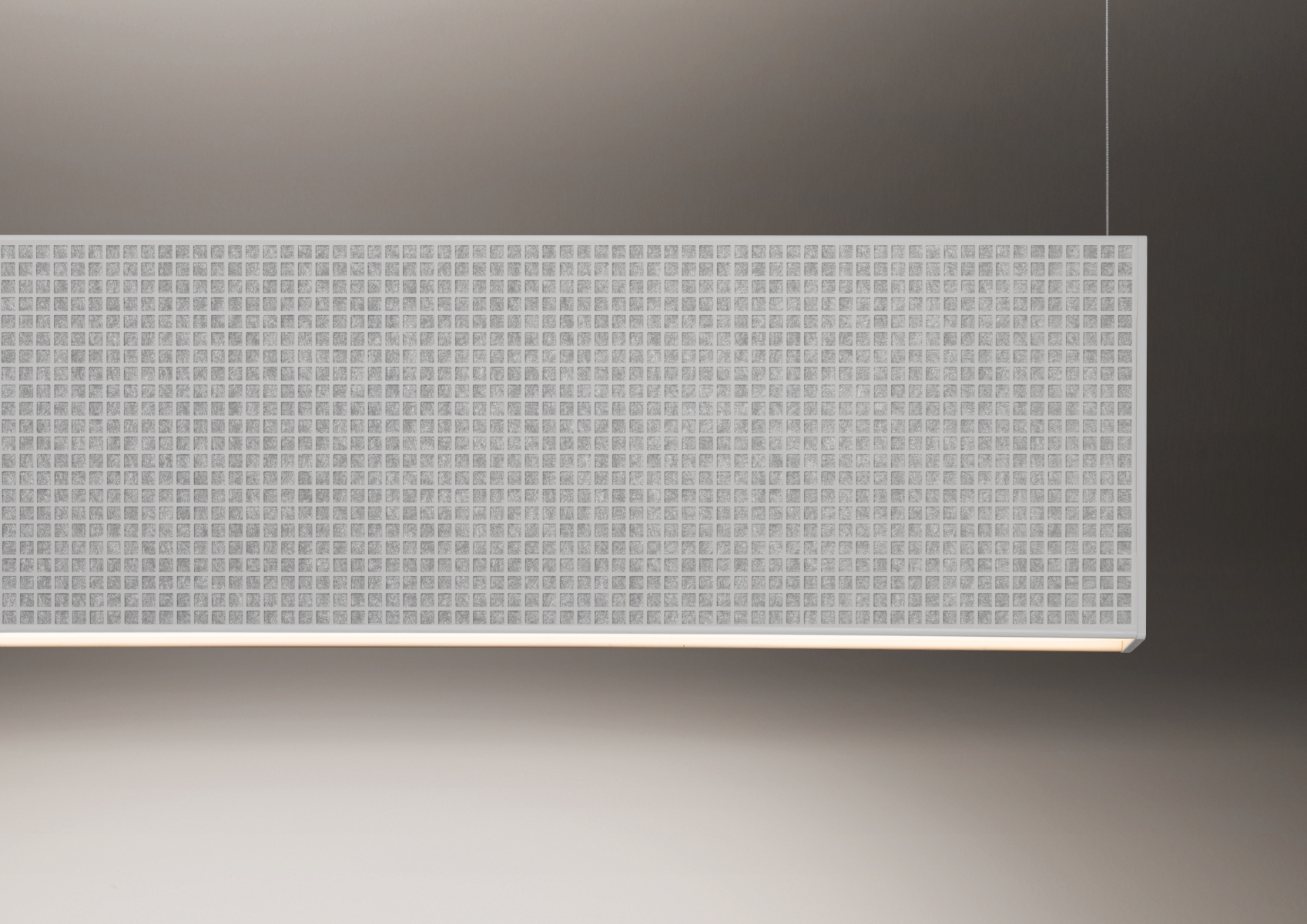

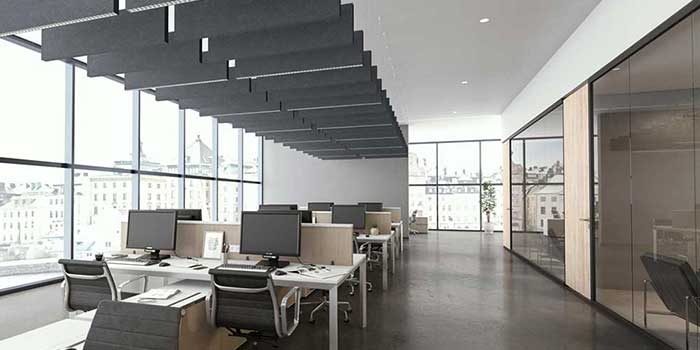

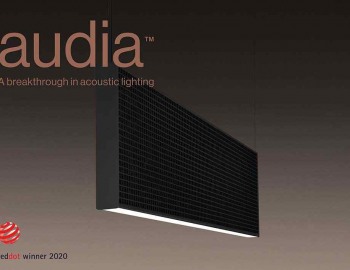

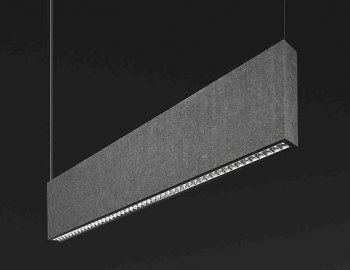

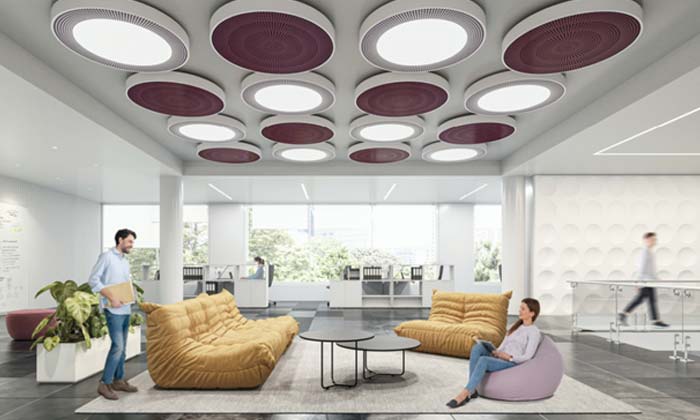

Meet EchoCore™

Precision acoustic technology

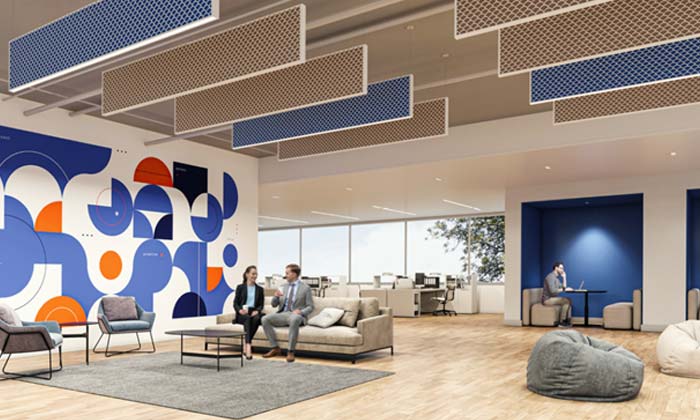

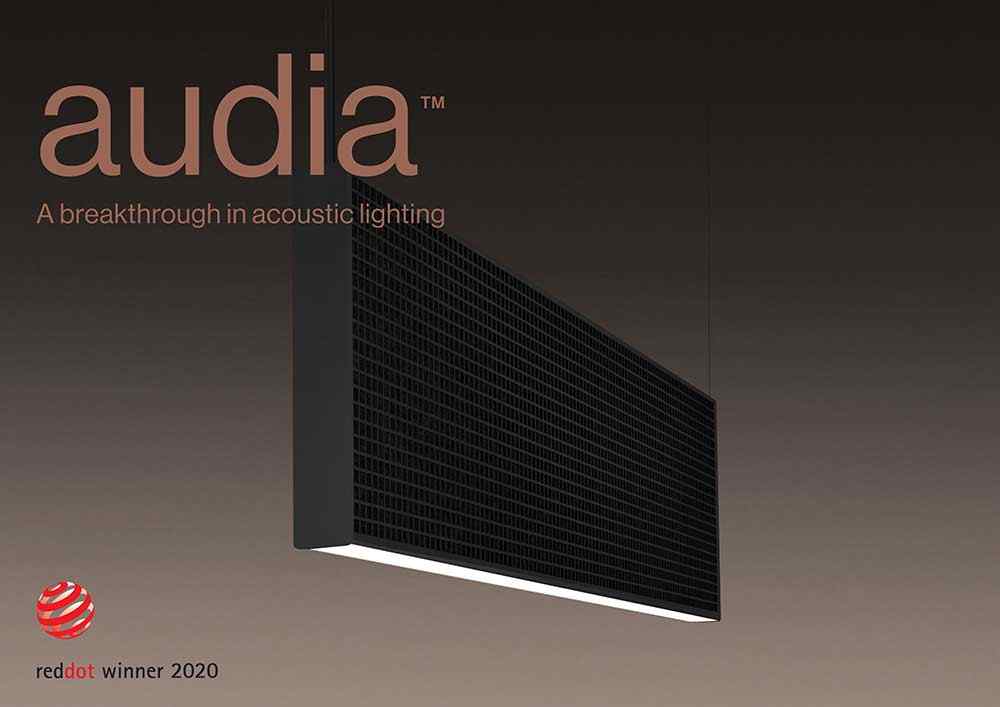

EchoCore™ is our innovative proprietary acoustic technology that empowers luminaires to absorb significantly more sound than traditional felt-fitted acoustic fixtures are capable of absorbing.

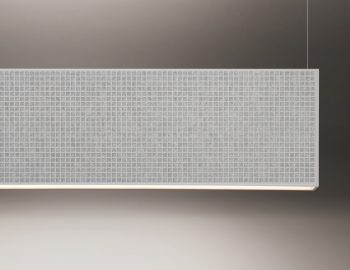

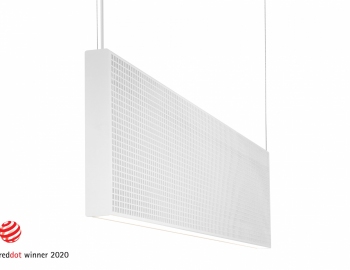

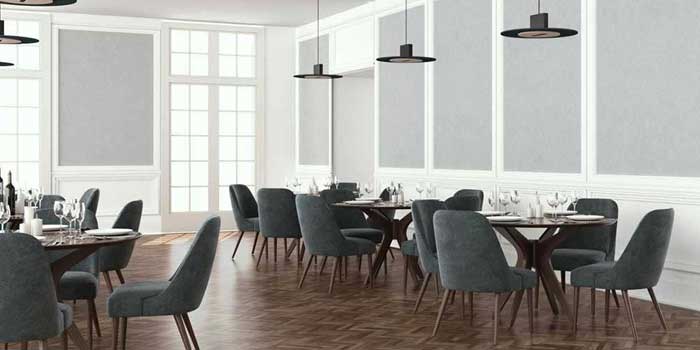

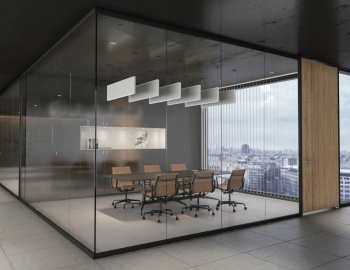

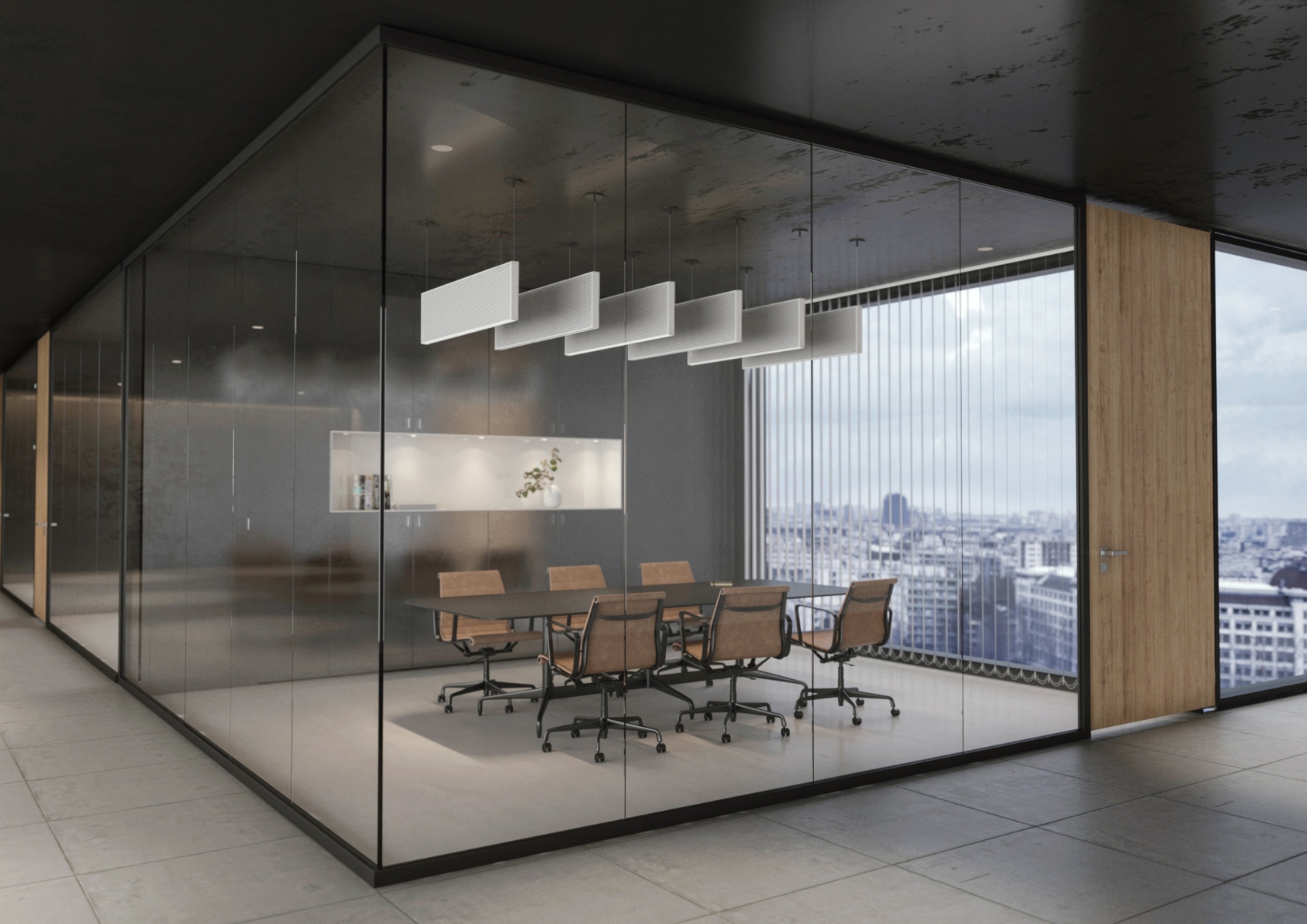

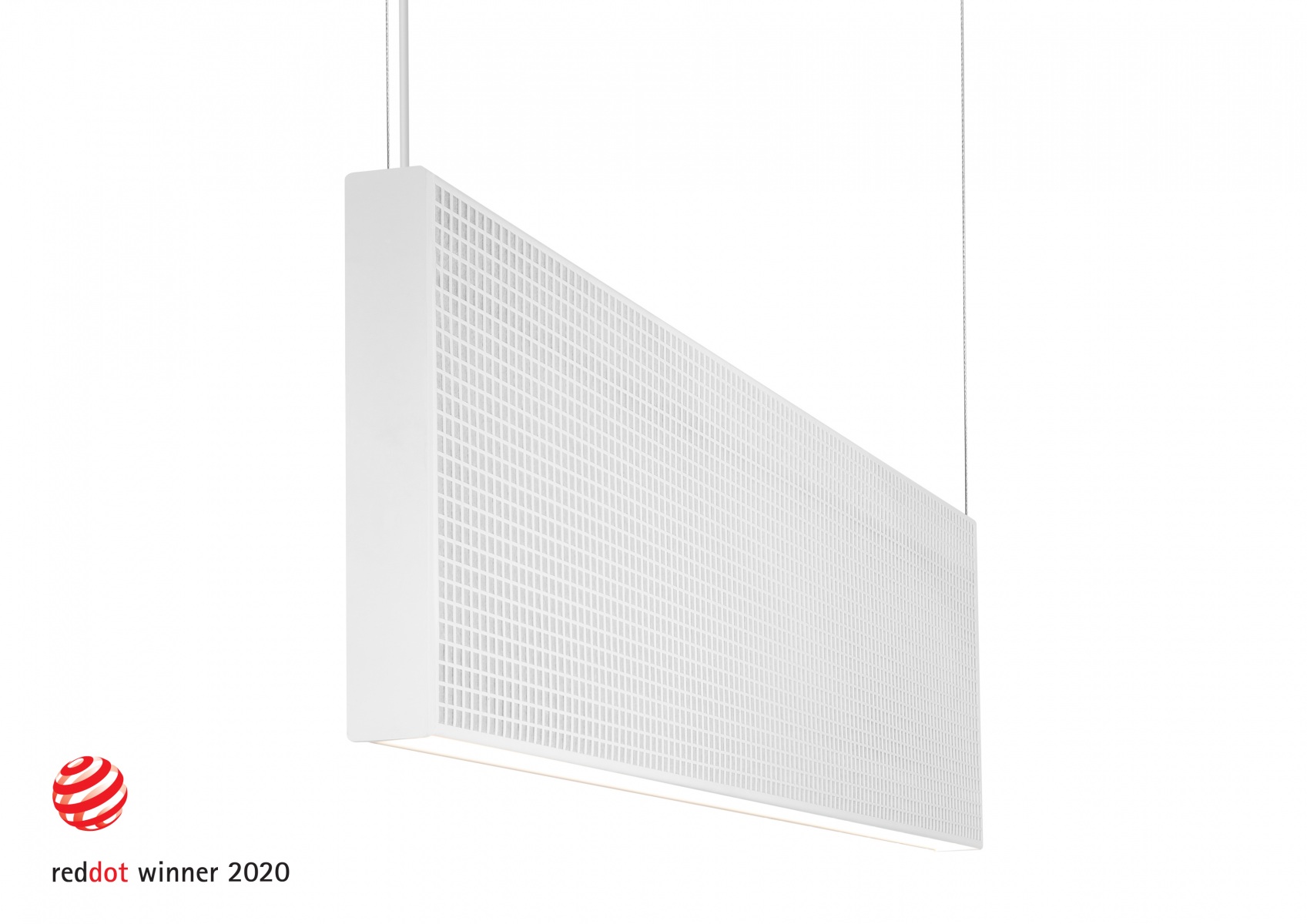

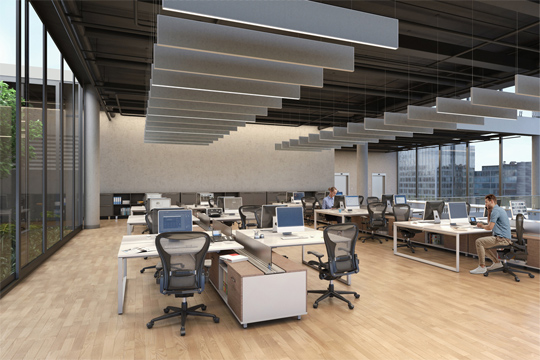

Acoustic fixtures equipped with EchoCore™—Audia, Pop, and Aera—maintain exceptional performance and are available with standard, premium, and custom options as well as a wide variety of features from which to choose.

• Pendant, Surface, and Recessed
• Linear, Round, and Square
• Circadian, tunable white, RGB+W
• 5 patterns + custom
• Up to 4 ft in diameter and 12 ft in length
• Standard and 29 premium paint colors

What is EchoCore™?

Form follows function

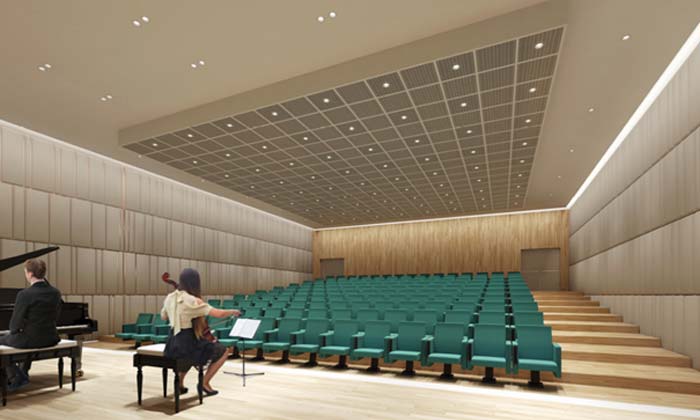

Our patent-pending EchoCore™ technology applies the science of Helmholtz resonance principles to the practice of acoustic lighting, taking the form of a die-cut aluminum lattice and multiple layers of a fibrous, sound-absorbing core material.

When sound waves meet lighting fixtures equipped with the technology, they pass through its aluminum lattice and then are trapped by its core, resulting in the reduction of echo and reverberation.

EchoCore™-enabled luminaires are 30% more effective than traditional felt-fitted acoustic fixtures are at reducing sound.

• 30% improvement in sound reduction over traditional acoustic luminaires

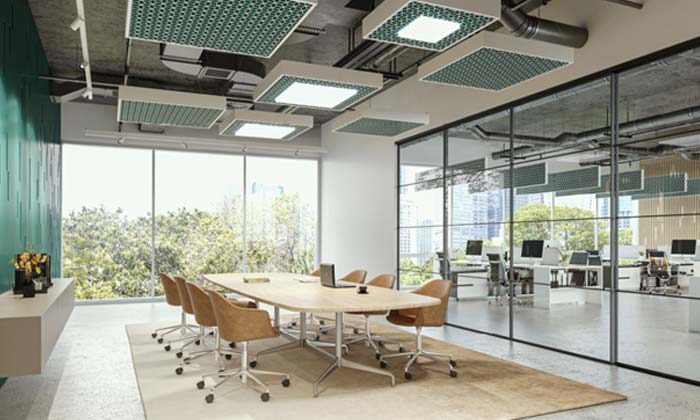

Pattern, Design, and Define

Our Audia, Pop, and Aera EchoCore™ acoustic luminaires not only address the problem of excess noise, but they also open up the possibilities to design and define any interior space requiring superior acoustic control.

With five lattice patterns (round, square, linear, cubic, and scalloped), and numerous finish and color options, the Audia, Pop, and Aera EchoCore™fixtures exemplify how a new technology can be the impetus to propel the imagination in all kinds of exciting creative directions.

Aera Coming Soon!

Here’s the scoop so far.

Something cool is about to happen and we want to celebrate with you by giving away some great stuff: iPhone 13 Pro, iPad Pro, and AirPods.

Everyone can participate. Participate in NYC or Virtually.

Those of you who will be in NYC this week to catch a glimpse of the future of lighting can head to Times Square anytime starting Thursday, October 28, to partake live in the @Lumenwerx #AlwaysLightRight giveaway at Broadway & 46th St.

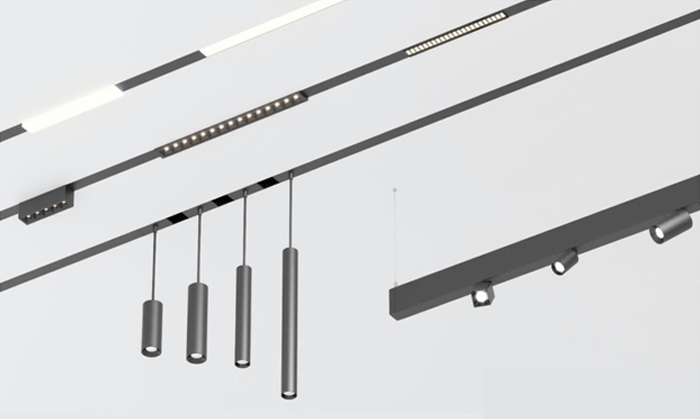

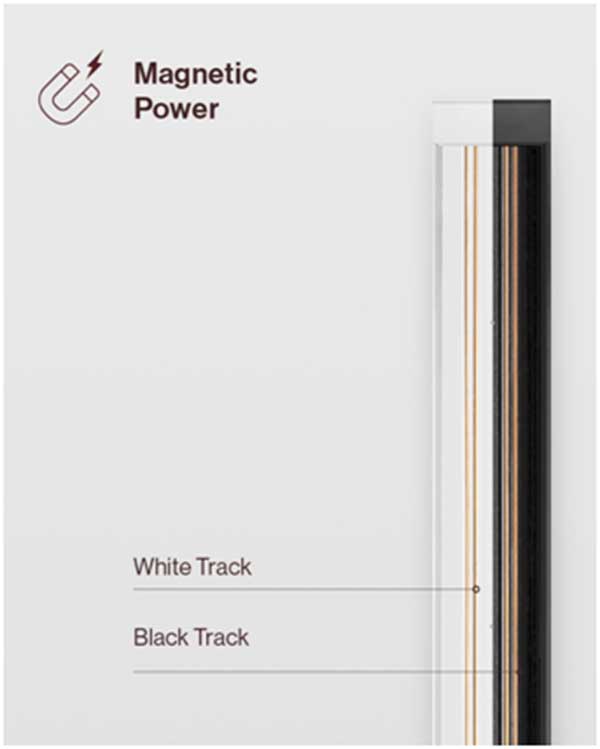

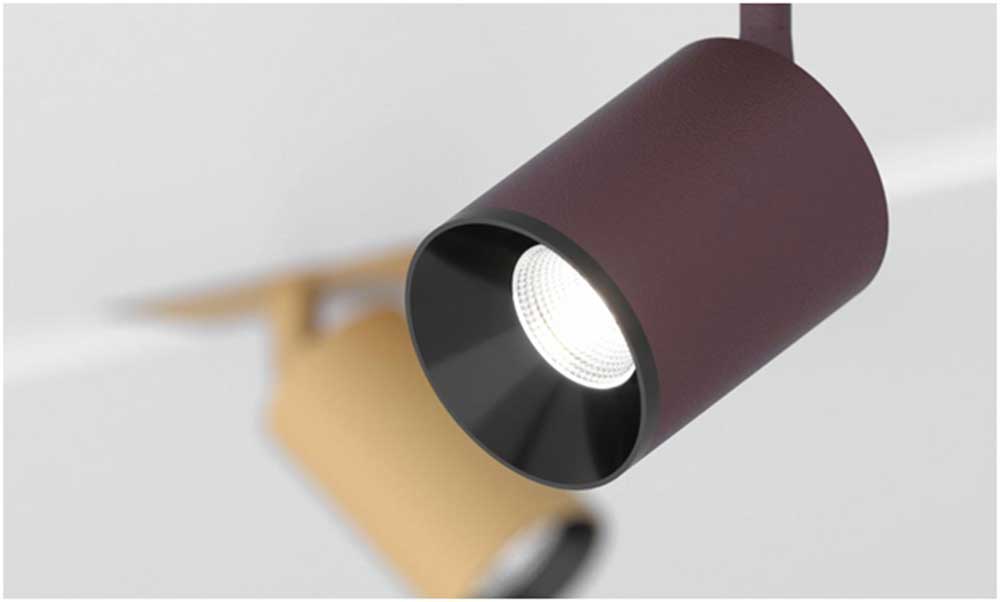

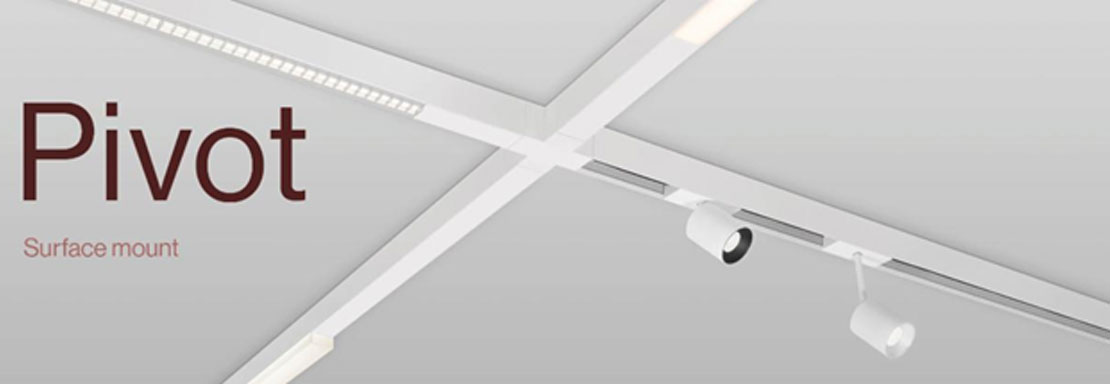

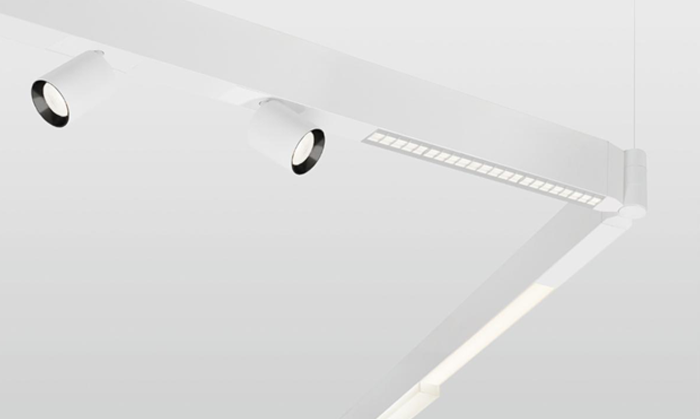

System Details

• 48V track
• Integral drivers
• Pendant or recessed
• 10+ modules
• Up to 1000 lm/ft
• 1.55 inches in width
• Direct or direct/indirect

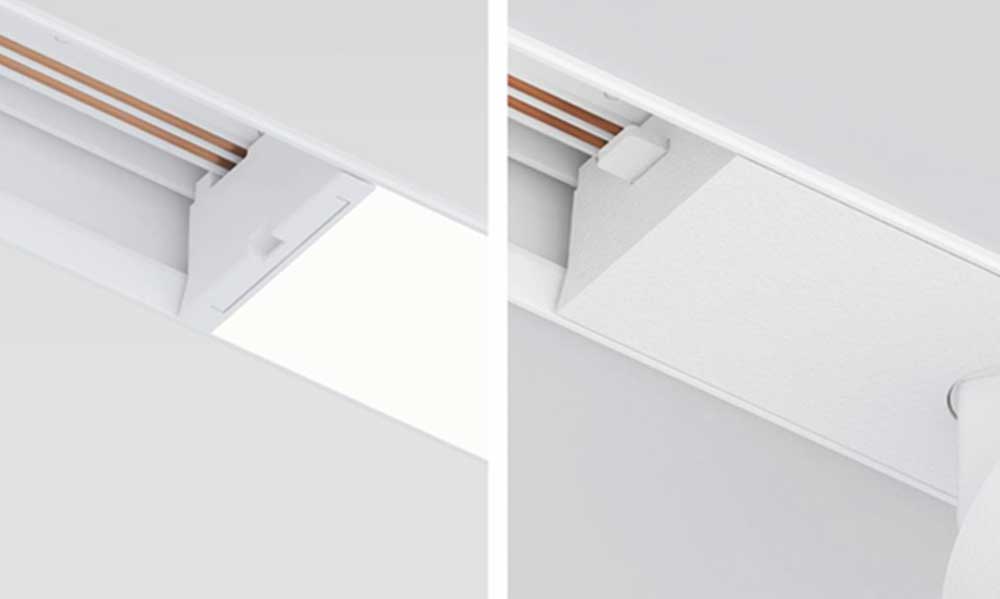

• Direct: modules or blank options
• Indirect: wide indirect optic or blank options
• A variety of control options

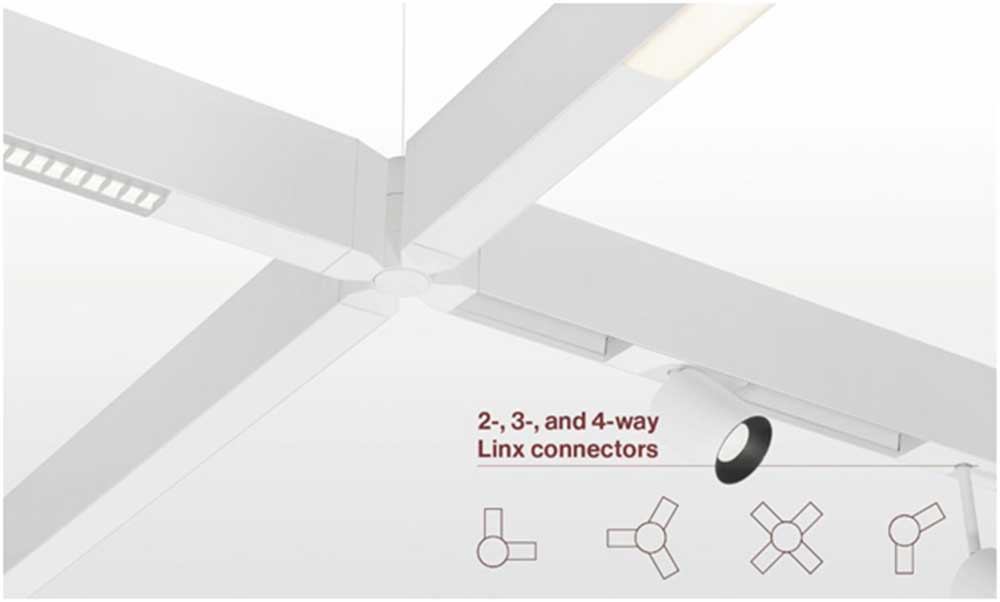

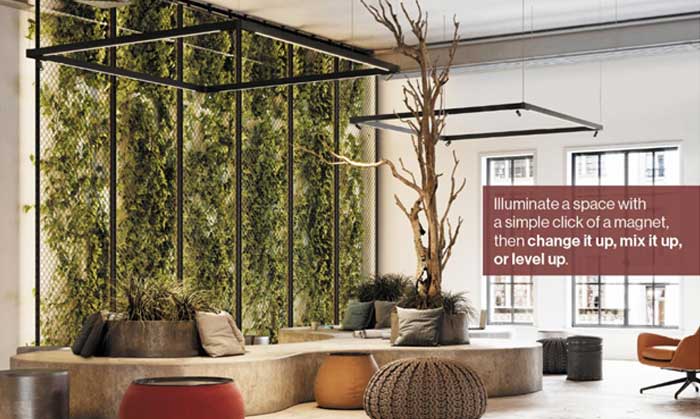

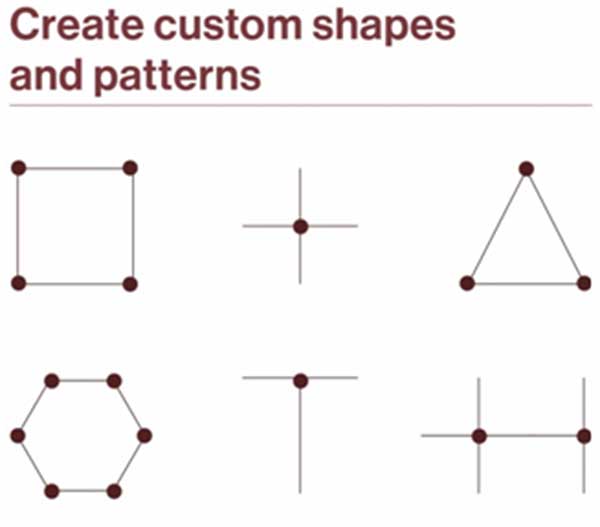

The Linx

For transitions and to create patterns and shapes, the Linx have a 60- to 180-degree movement range with 2-way, 3-way, and 4-way horizontal options, and a 2-way connector on the vertical.

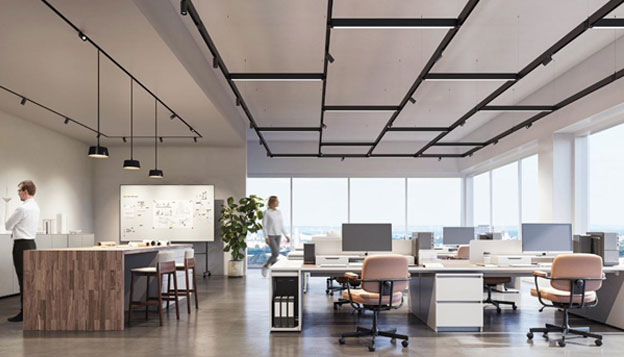

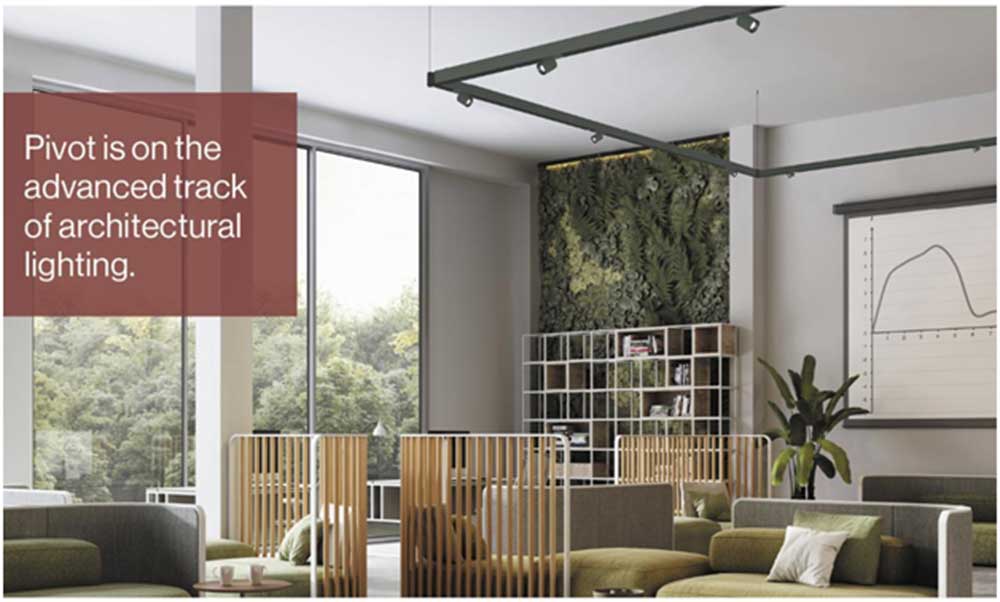

Infinite Track

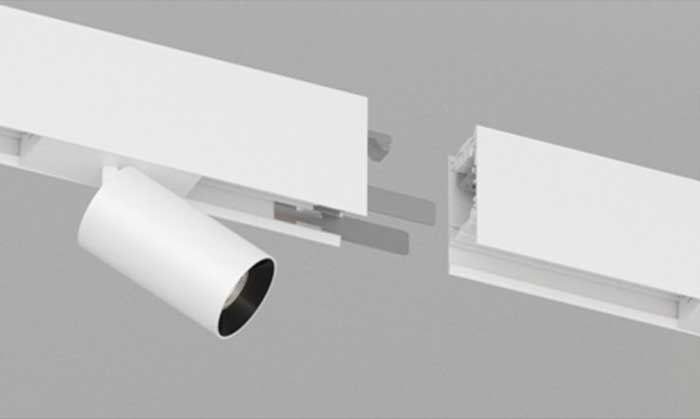

The Pivot track can be infinitely mounted with a rigid joining system that is architecturally minimal at the seams. Tracks can be continuously mounted with

Sections of up To 8 Feet.

The Pivot track offers electrical and control flexibility based on your specific design.

3 Track Channel Variations:

• 1 circuit with 1 control channel
• 1 circuit with 2 control channels
• 2 circuit and 2 control channels

Wide Indirect Optic

Pivot Wide Indirect Optic (WIO2) features impeccable indirect performance. The light wingspan can reach distances of up to 12 feet. With 8-foot spacing, the ideal 2:1 ratio can be achieved with a 24-inch drop from the ceiling. Indirect is also available unlit with a blank cover.

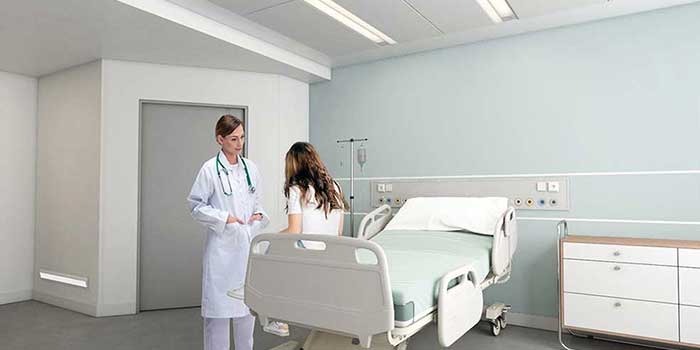

Healthcare Lighting with a Holistic Approach

Lumenwerx is proud to announce the launch of Healthwerx, a comprehensive and diverse portfolio of over 16 luminaires dedicated to healthcare spaces. The portfolio is the result of a holistic approach that involved researching and championing the expertise of leading specifiers and consulting many healthcare professionals.

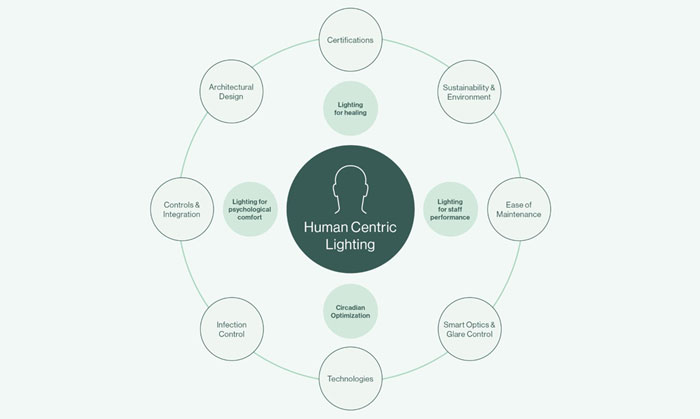

Human Centric Lighting

Our design strategy allows us to create successful lighting solutions that enhance patient healing, staff performance, and the psychological comfort of all health facility users. The benefits of an integrated lighting system can significantly impact the well-being of healthcare patients, staff, visitors, and volunteers.

Healthwerx products

Purposeful Design

With over 16 products, the Healthwerx portfolio is human driven, and offers modern forms, improved spectrums, industry leading optics, and a plethora of control options to meet any design strategy.

Key features

• Small and compact without compromising performance
• Low-glare for comfort
• Silverwerx antimicrobial finish for infection control
• Multi-mode functions
• Control-ready for any system

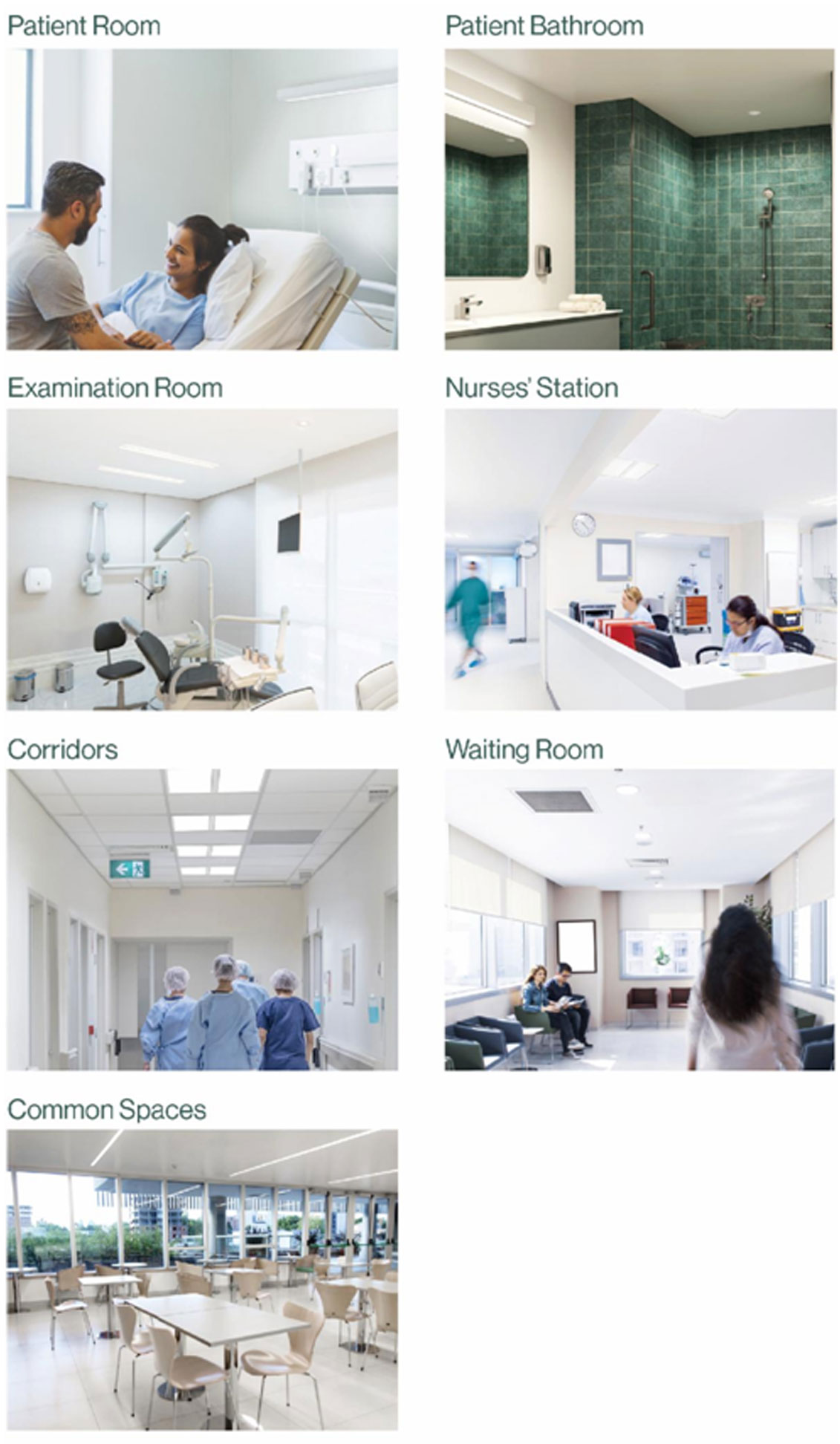

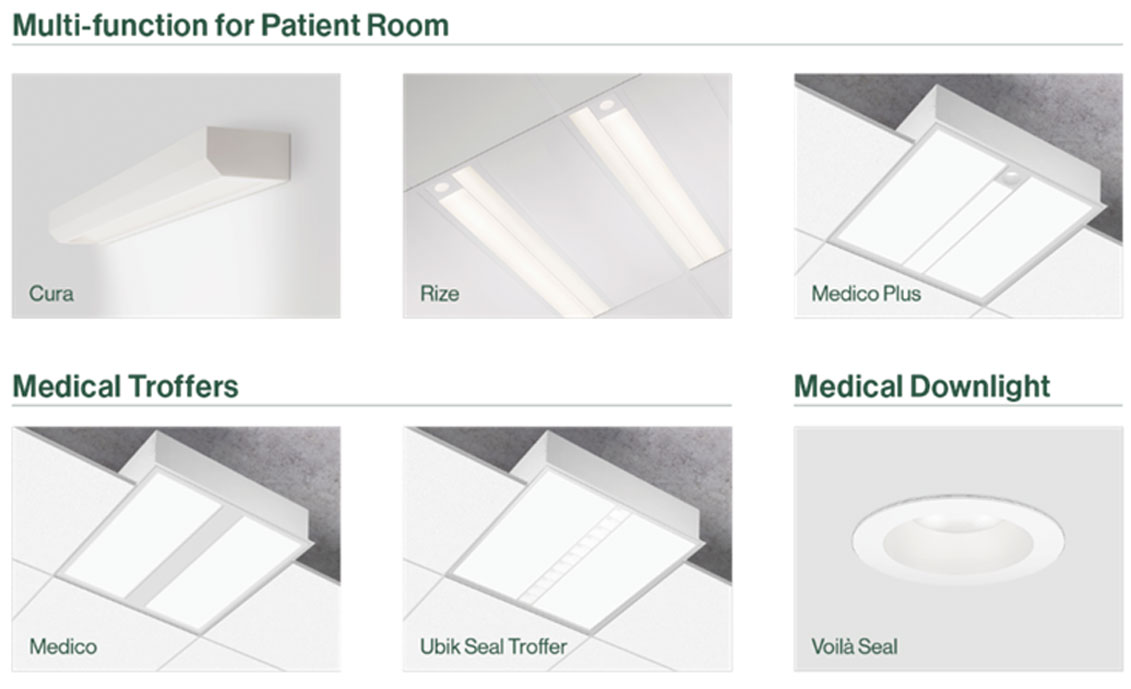

Featured applications in Healthwerx

Healthwerx is able to support the complex requirements of patient care in hospitals, clinics, and other health facilities and can also illuminate areas such as outpatient centers, laboratories, and spaces where diagnostic, therapeutic and cleaning activities take place.

11+ Technologies

At Lumenwerx we pride ourselves on remaining on the cutting edge of lighting innovation, from PoE to spectrally optimized LEDs, we develop the latest technologies into beneficial tools for our lighting community. Healthwerx features 11 technologies embedded in our luminaires.

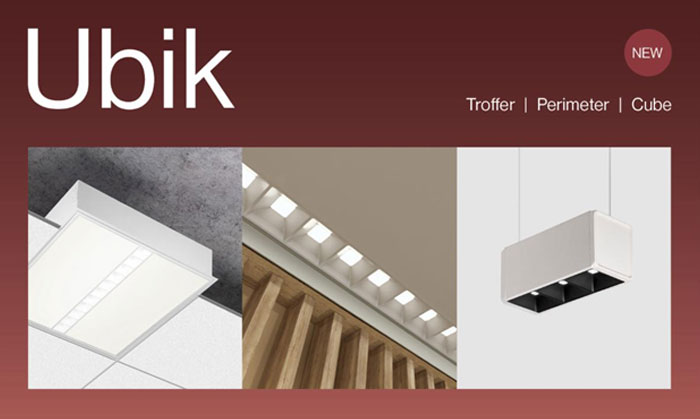

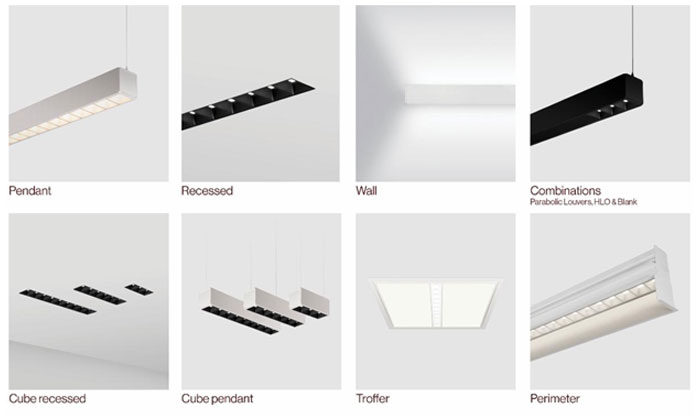

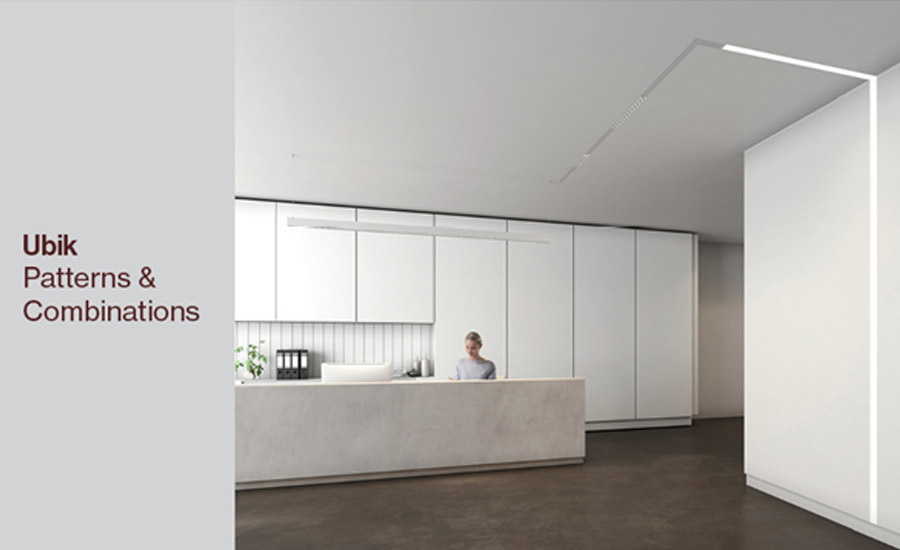

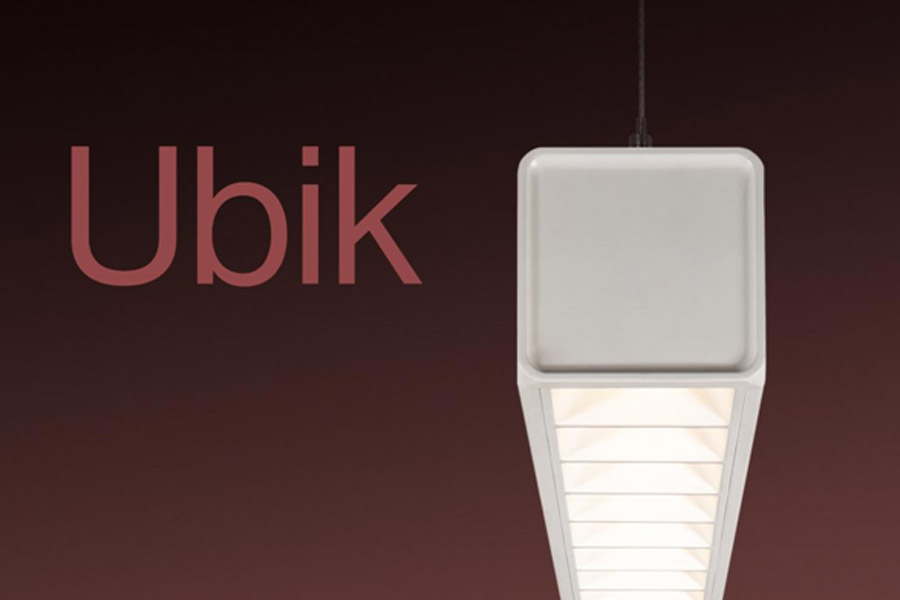

Ubik – New fixtures join the family

• Ubik Troffer
• Ubik Perimeter
• Ubik Cube Pendant

These additions further elevate Ubik’s status as a complete lighting family, with each luminaire able to work independently or as part of a cohesive whole united family with the distinct elegance and high performance that characterize each Ubik luminaire.

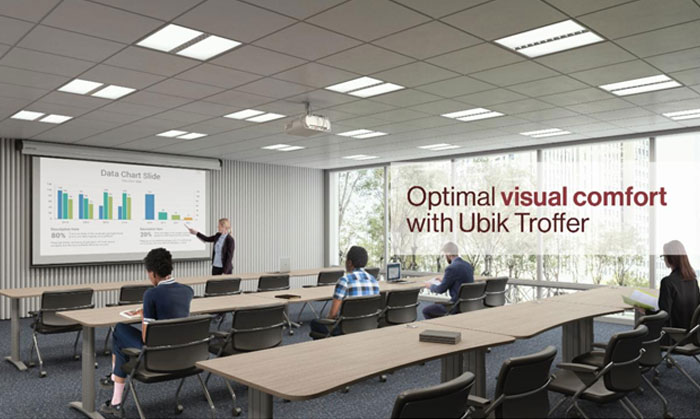

Easy on the Eyes

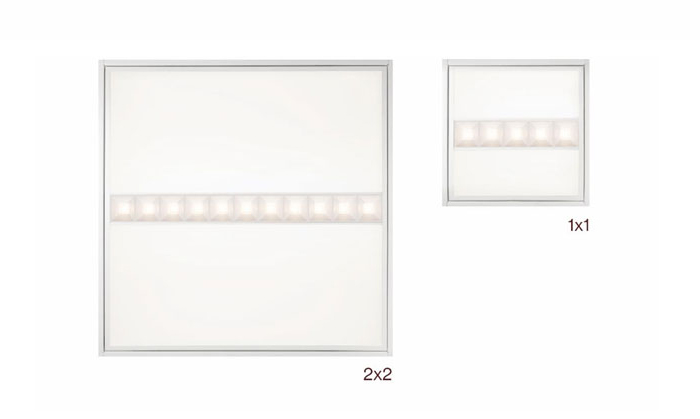

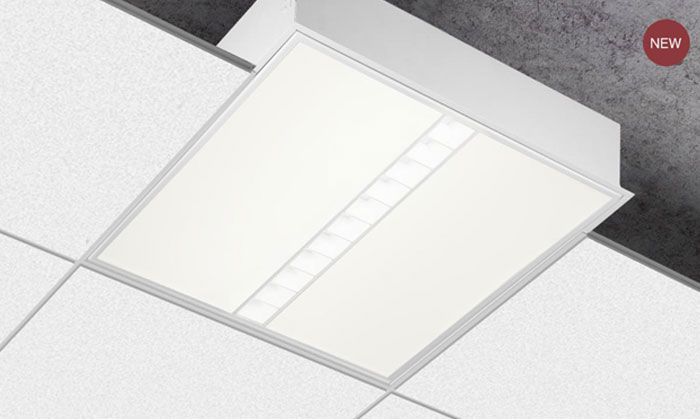

Ubik Troffer creates visual comfort with its low-glare, dual optical chamber performance. The center channel features parabolic louvers with a soft conical distribution. Meanwhile, side lenses distribute indirect, reflected, soft diffused illumination using Tri-Flect technology. Both 1×1 and 2×2 fixtures offer 60/40 and 40/60 distribution options and meet the WELL Building Standard™ guidelines for UGR values.

• Up to 4500 lm
• Up to 117 lm/W
• Low glare UGR<19

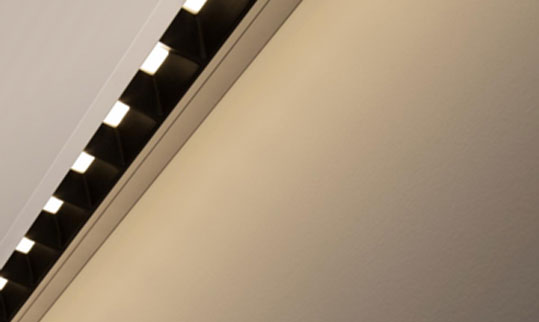

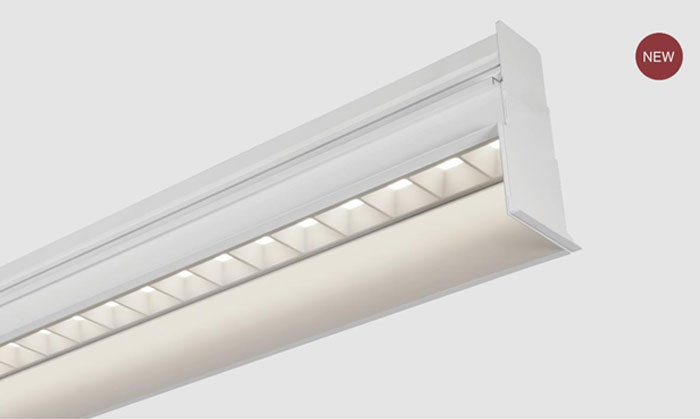

Ubik Perimeter

Ubik Perimeter offers subtle, low-glare illumination with parabolic louvers or HLO (High-Efficiency Lambertian Optic). Use it in offices, showrooms, corridors, hospitality locations, and more to highlight perimeter walls.

• 2” aperture
• Up to 1200 lm/ft
• Low-glare perimeter solution
• Parabolic louvers or HLO
• Three mounting positions

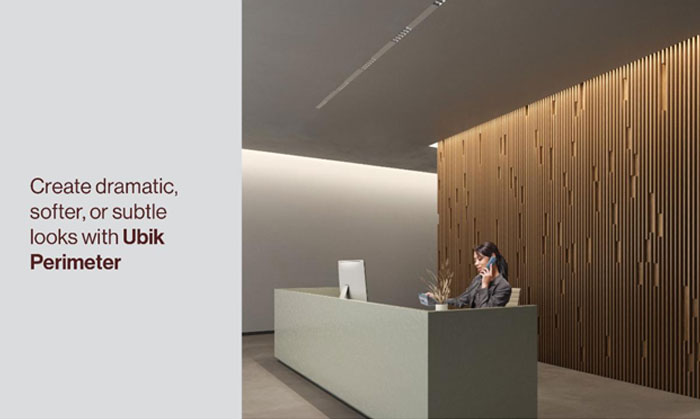

Showcase the beauty of a textured wall with Ubik Perimeter.

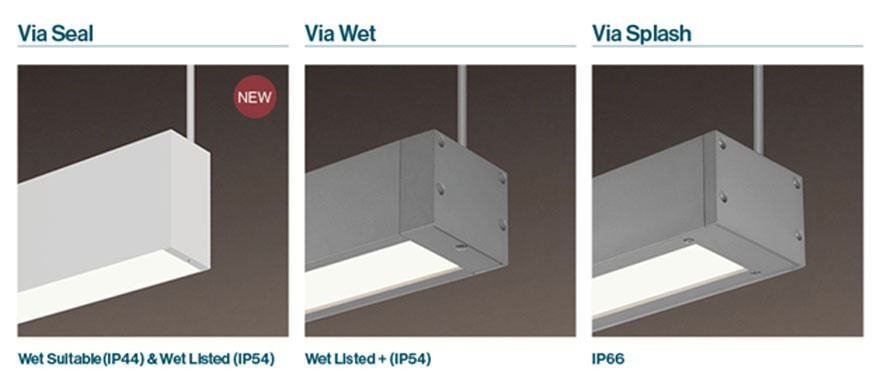

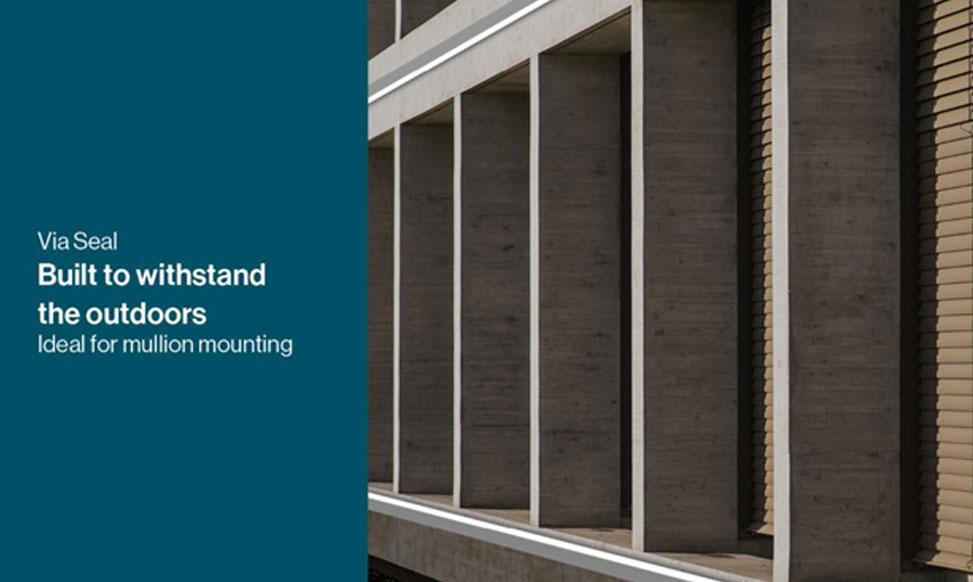

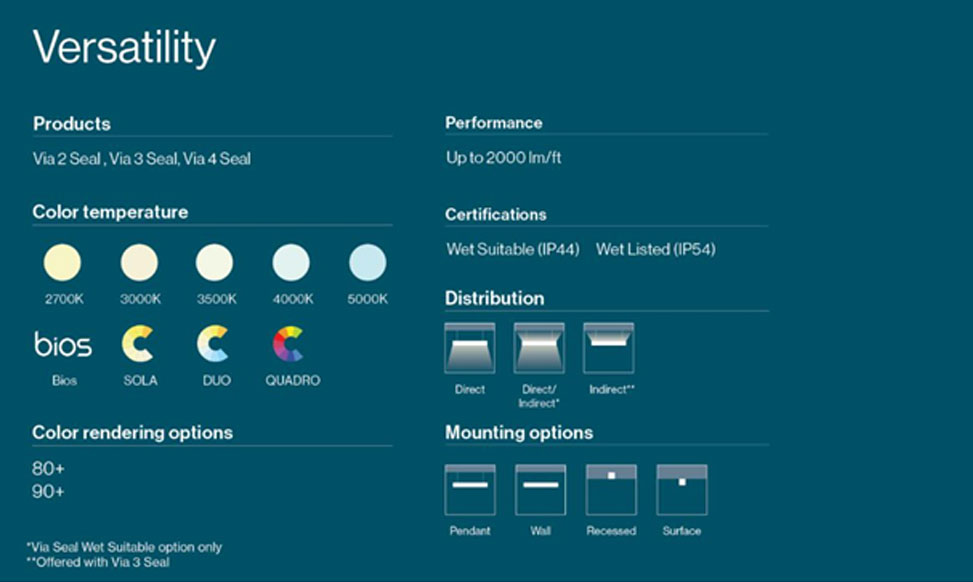

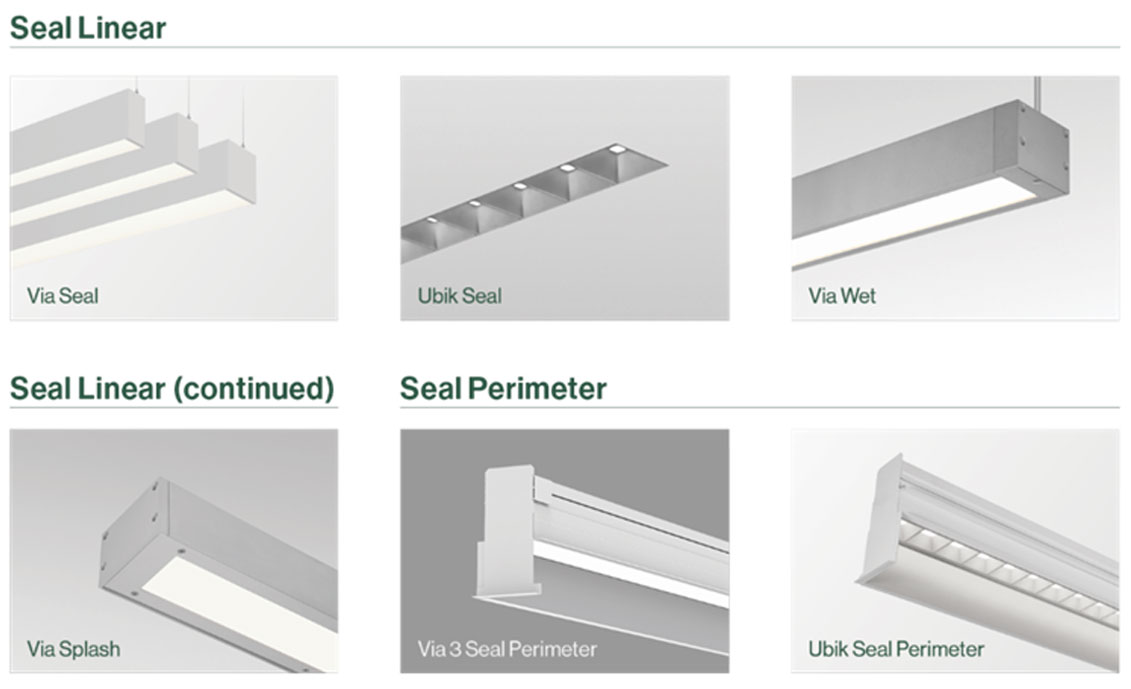

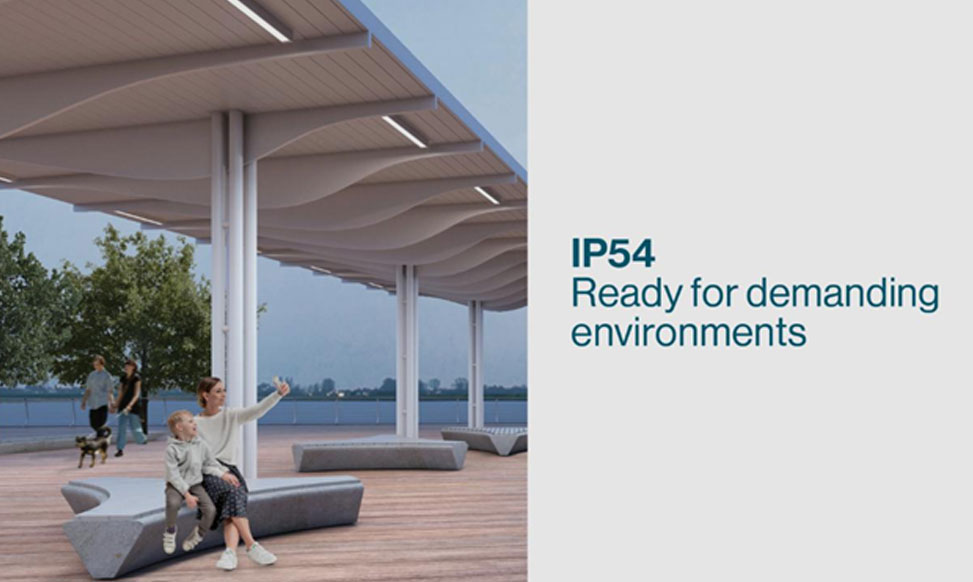

Via Seal: Wet Suitable (IP44) or Wet Listed (IP54)

Via Seal has been designed to maintain the elegant architectural esthetic of the Via family with added protection to repel the elements.

• Great for outdoors, mullion mount, and indoor wipe-down applications
• Three sizes: Via 2 Seal, Via 3 Seal and Via 4 Seal
• Continuous line of light
• Five optics to choose from

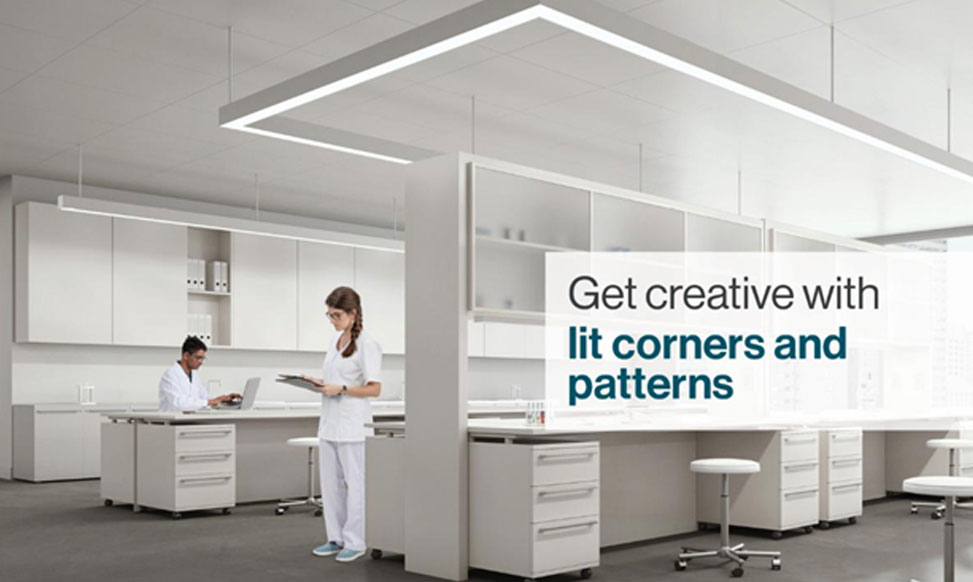

• Lit corners and patterns available

Via Seal:
Engineered to Defend Itself

Featuring Environmentally Protected Optics (EPDO, EPIO) that are resistant to UV distortion and can withstand moderate impact, Via Seal includes all the same flexible control options as our traditional Via.

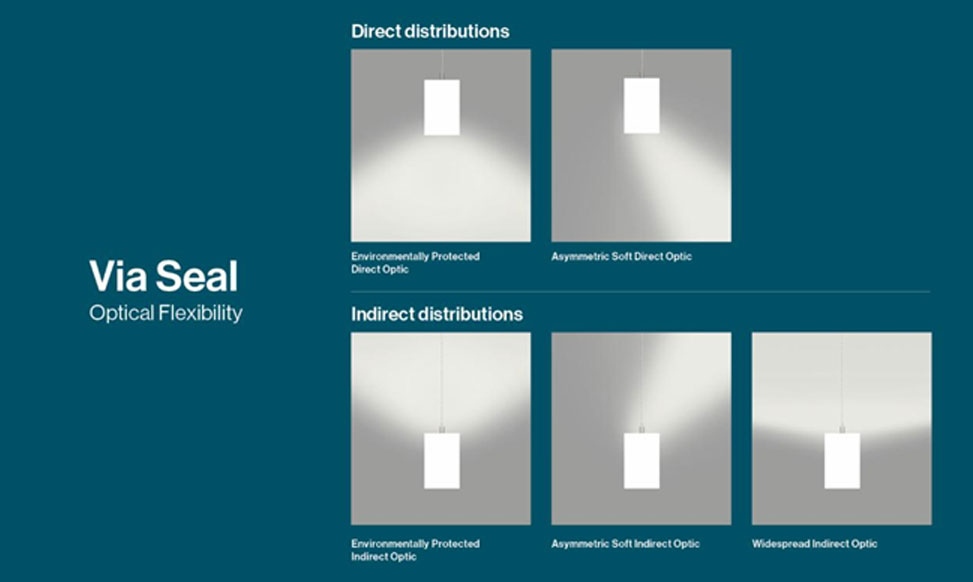

Wide Range of Optics

With five optics to choose from, Via Seal offers complete lighting solutions for various applications, from asymmetric to wide indirect to general illumination.

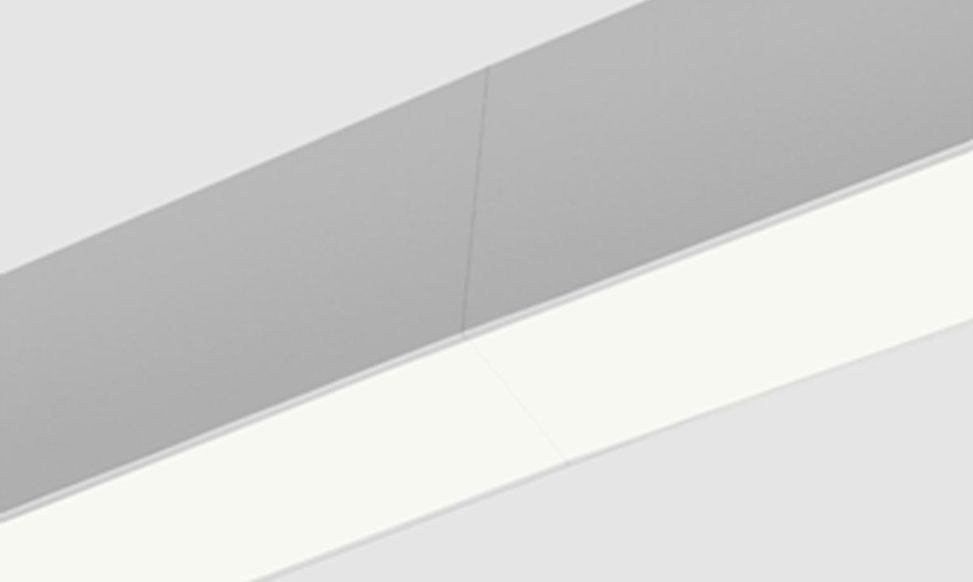

Sleek & flexible

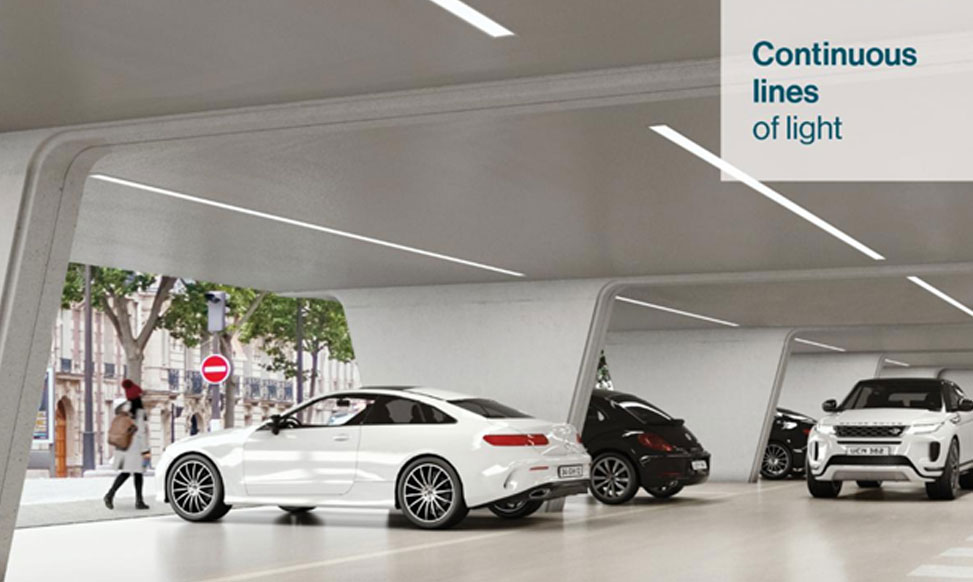

Use Via Seal to create shapes, patterns, and uninterrupted lines
of light.

Recommended for healthcare spaces that require wipe down
on a regular basis.

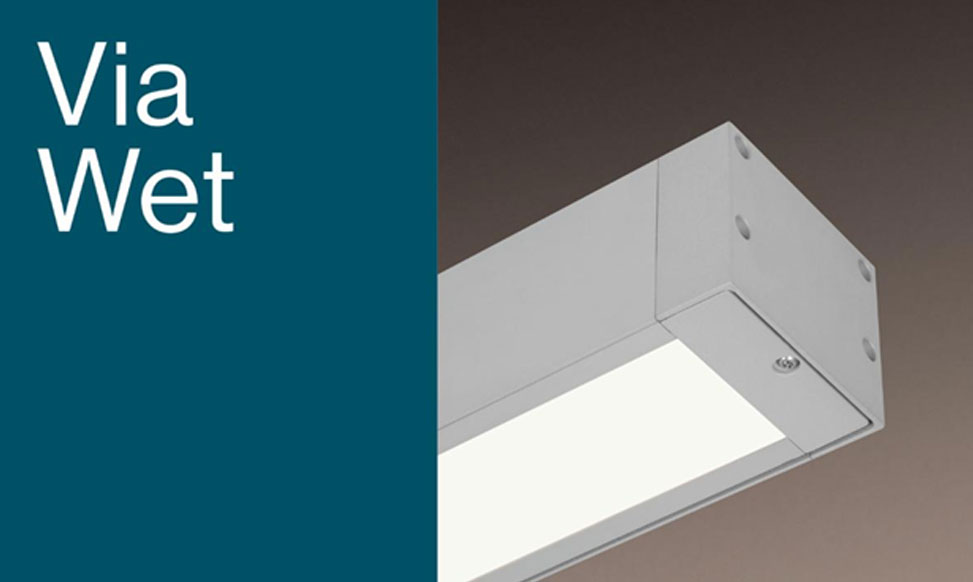

Fully Sealed & Protected

Via Wet (IP54) is not only equipped with an additional lens layer in either polycarbonate or tempered glass, but it also has a double seal in the form of a two-tiered gasket to ensure that nothing can enter the fixture. Its water-tight and dust-tight robust craftsmanship make it suitable for many demanding environments prone to excessive water and debris.

Via Wet: Sturdy Design

• 2-layer gasket and double-lensed
• Featuring Smart-Lock Module: proprietary lens, LED and driver cartridge design
• Corrosion-resistant finish option for demanding environments (salt, dust, & chemical resistant)

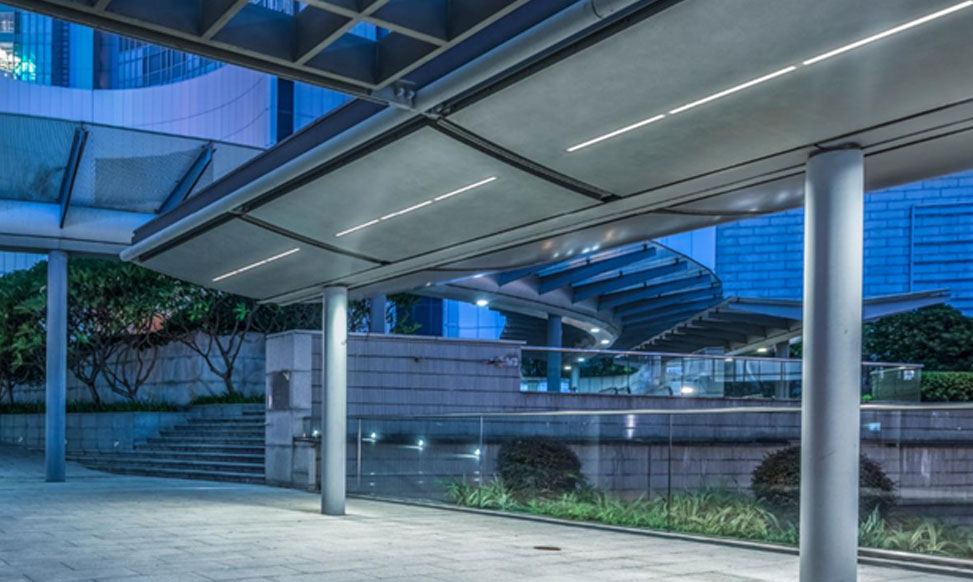

Explore the Possibilities!

The 4.5-inch profile can be used outdoors in parking lots, bridges, and exterior trusses, as well as indoors, for example, in pools, food prep areas, and laboratories that undergo frequent wash downs.

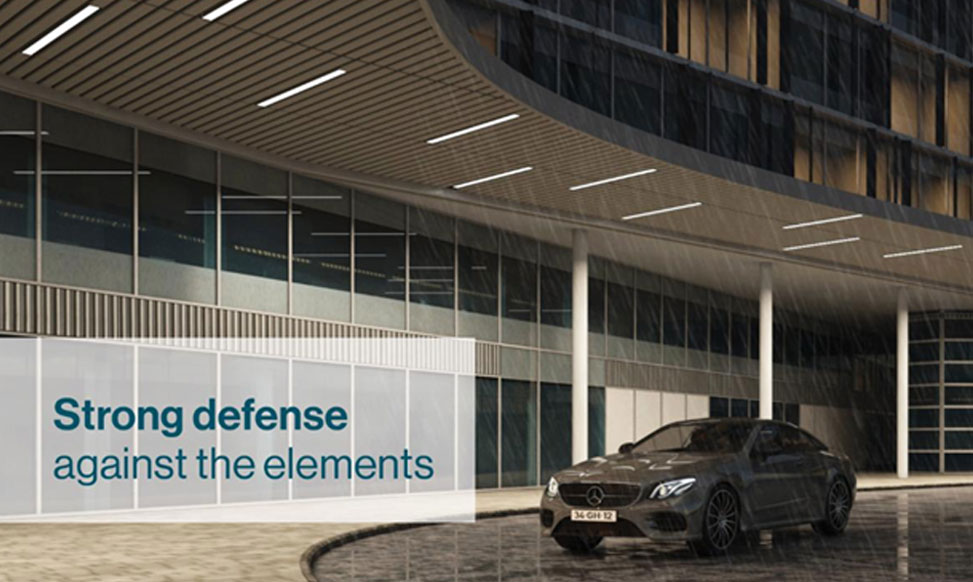

A Solid Defense

Of the three Weather Series lines, Via Splash offers the strongest protection against the elements. It is IP66-Rated, dust-tight, and fully protected against powerful jets of water from any direction. Its reinforced lensing and impenetrable gaskets make the intrusion of any foreign particles virtually impossible.

Via Splash has a 5-inch profile, which offers extra protection in exterior environments exposed to the elements. The luminaire also works well in industrial contexts.

Get to know the Via Weather Series

View the full Via Weather Series brochure online. Contact us for more information, or plan a virtual visit!

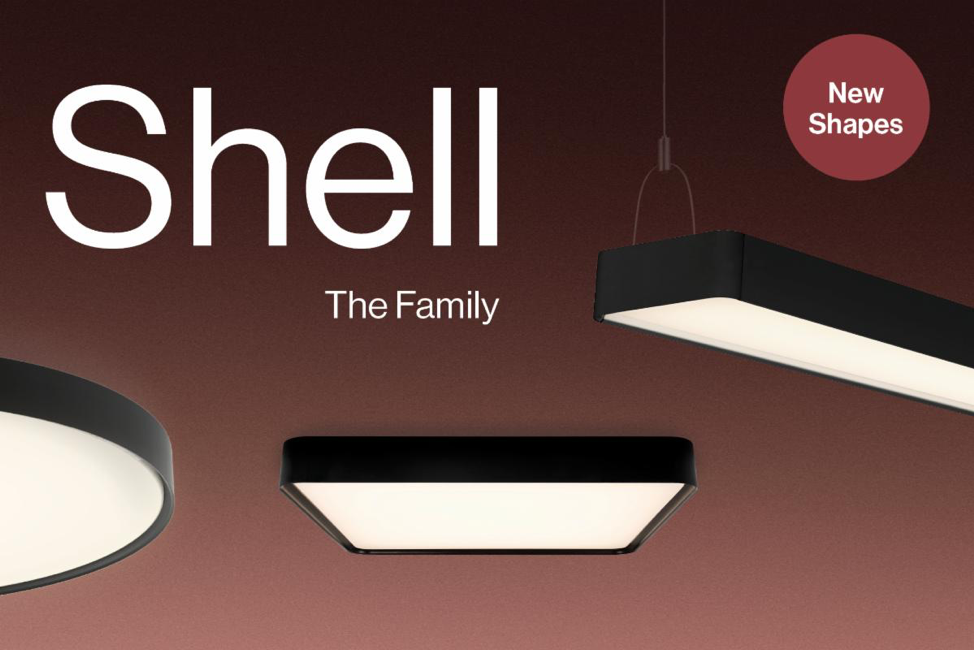

Design is in the Details

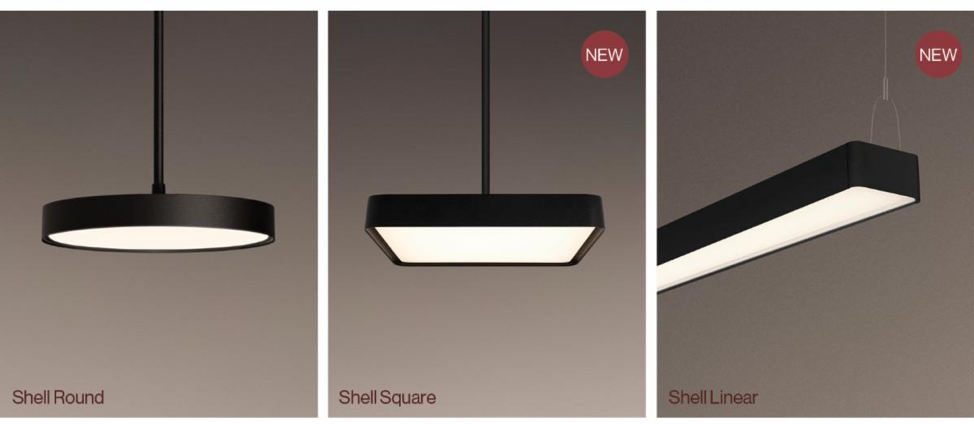

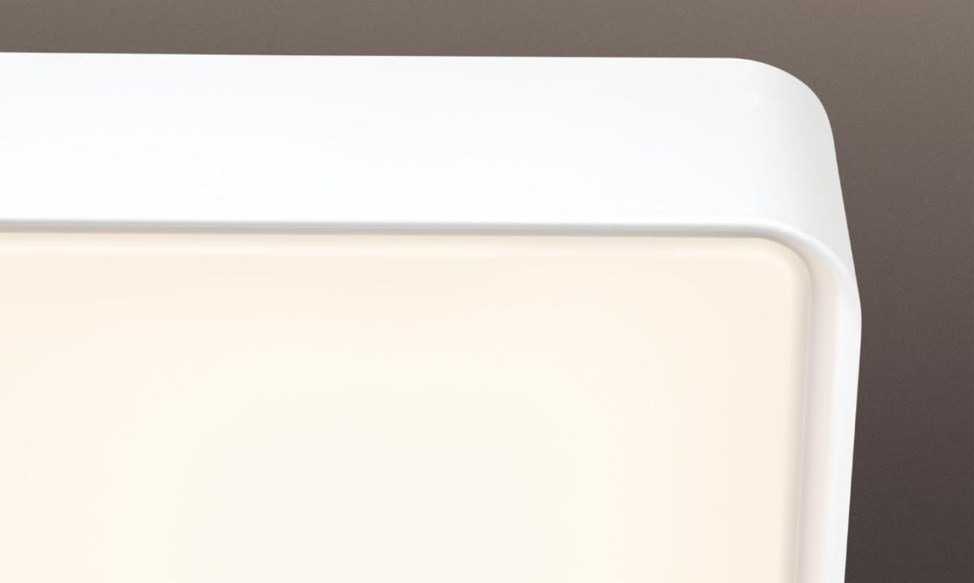

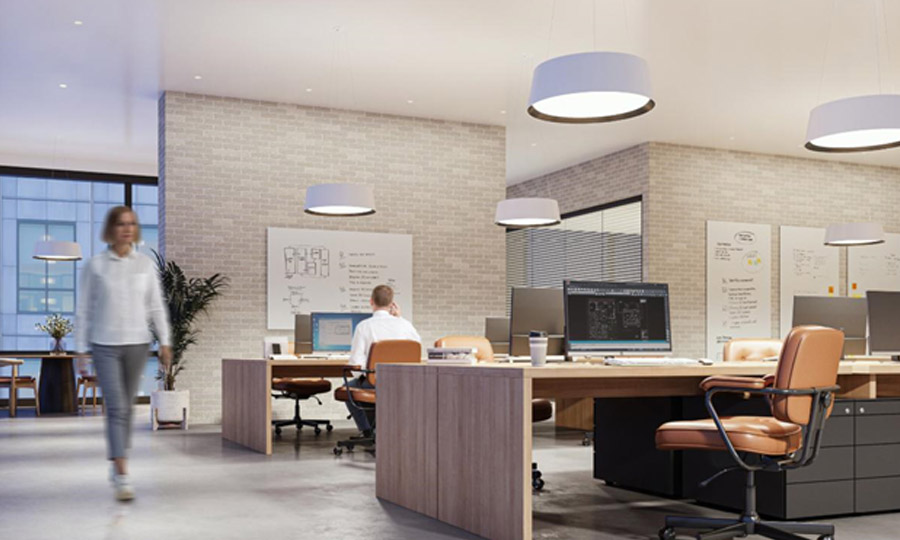

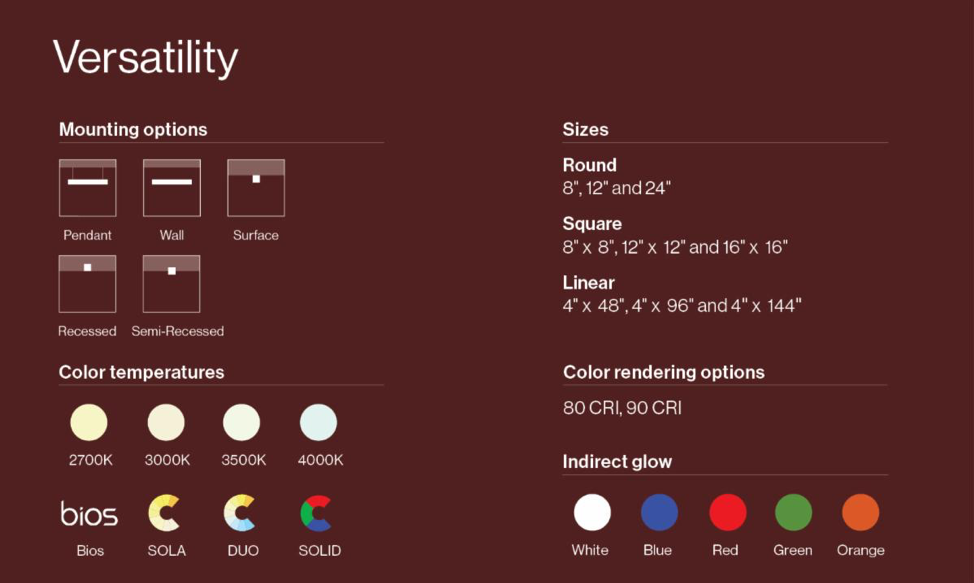

Crafted with pinpoint detail, Shell fixtures can be the architectural elements that make great designs even better. Plus, with their numerous features and options, they are virtuosos of versatility.

• 2-inch compact profile

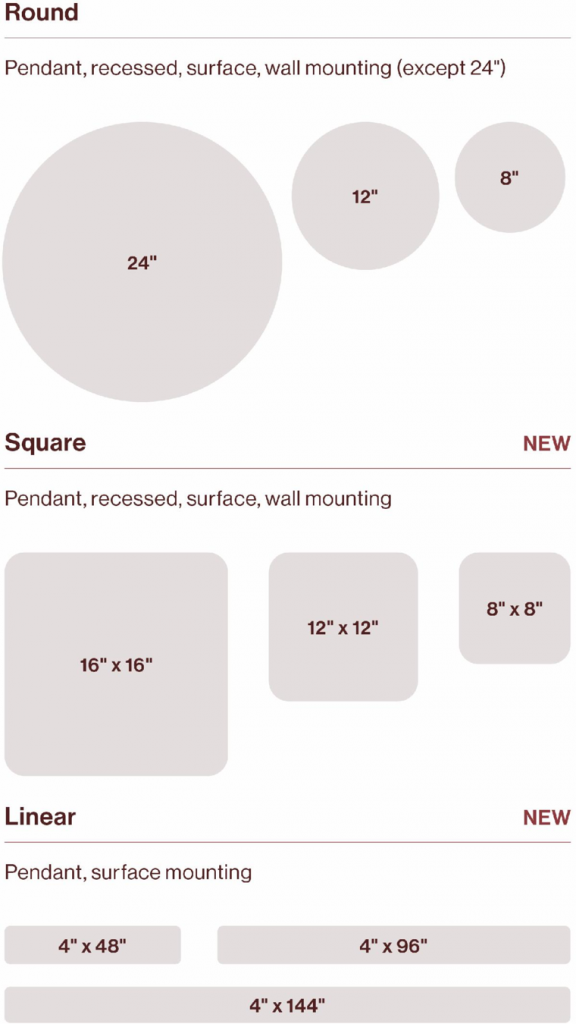

• 3 shapes: round, square, and linear
• Multiple mounting possibilities
• Optional subtle uplight glow
• 9 standard finish colors

Performance: The Power of Comfort

Shell is inviting but not overbearing, and classic but not cliché. This visual comfort comes from its optic. Made of thermoformed diffusing acrylic, our HLO (High-Efficiency Lambertian Optic) provides excellent light source obscuration while offering an impressive 0.1 inch of shielding.

Up to 6400 lm*
Up to 125 lm/W**

Shell luminaires meet the WELL building standard for optimization features.
*Shell round 24” diameter
** Shell Square 12”x12”

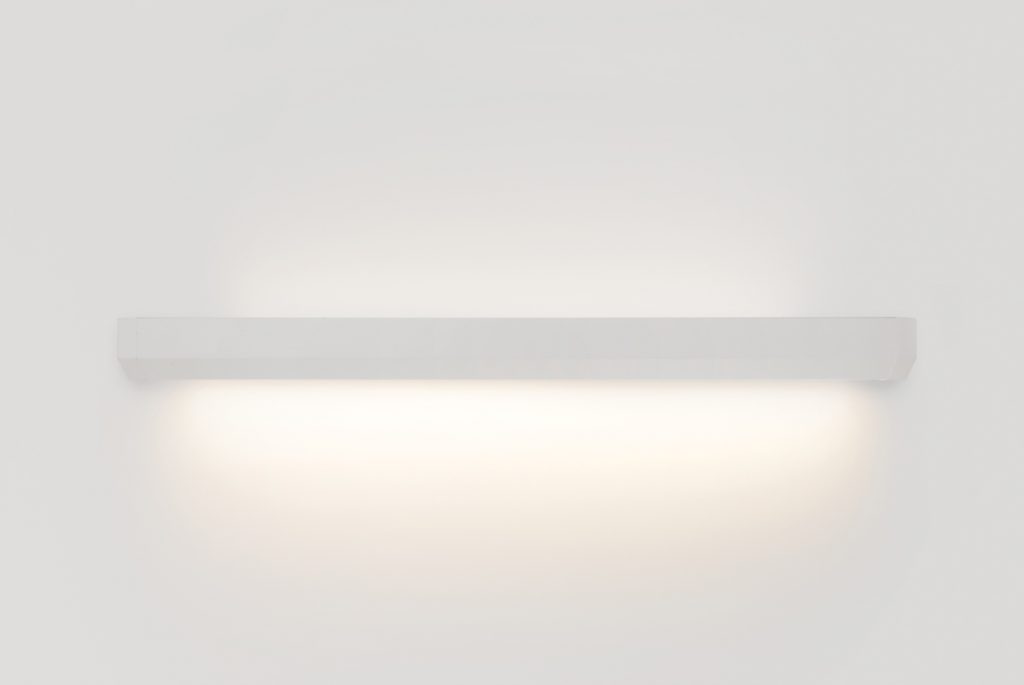

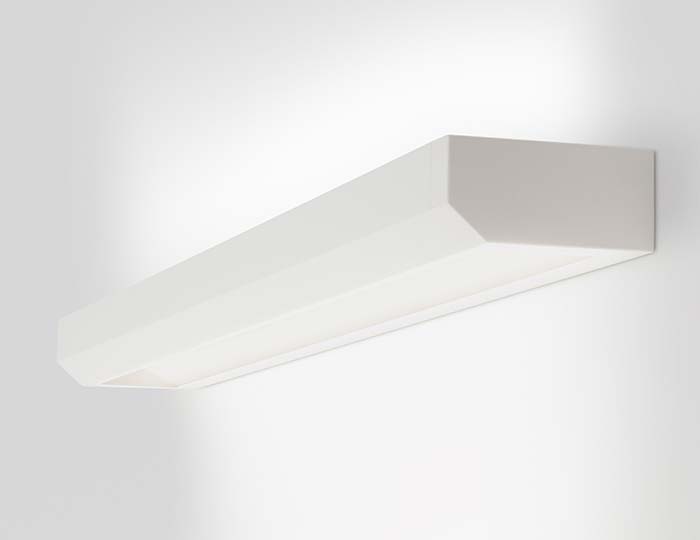

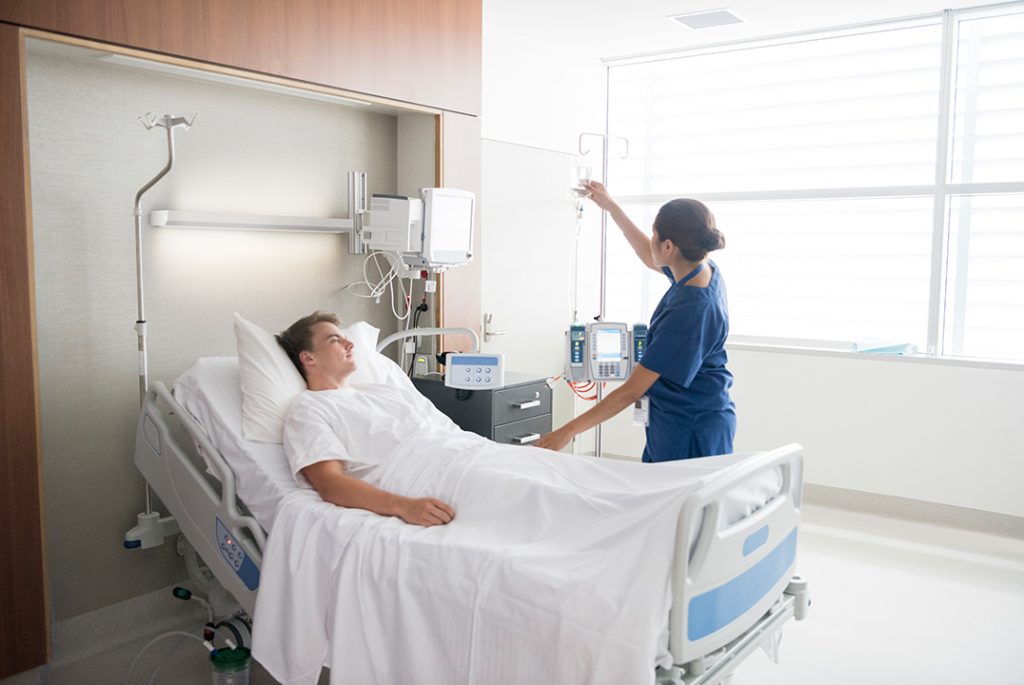

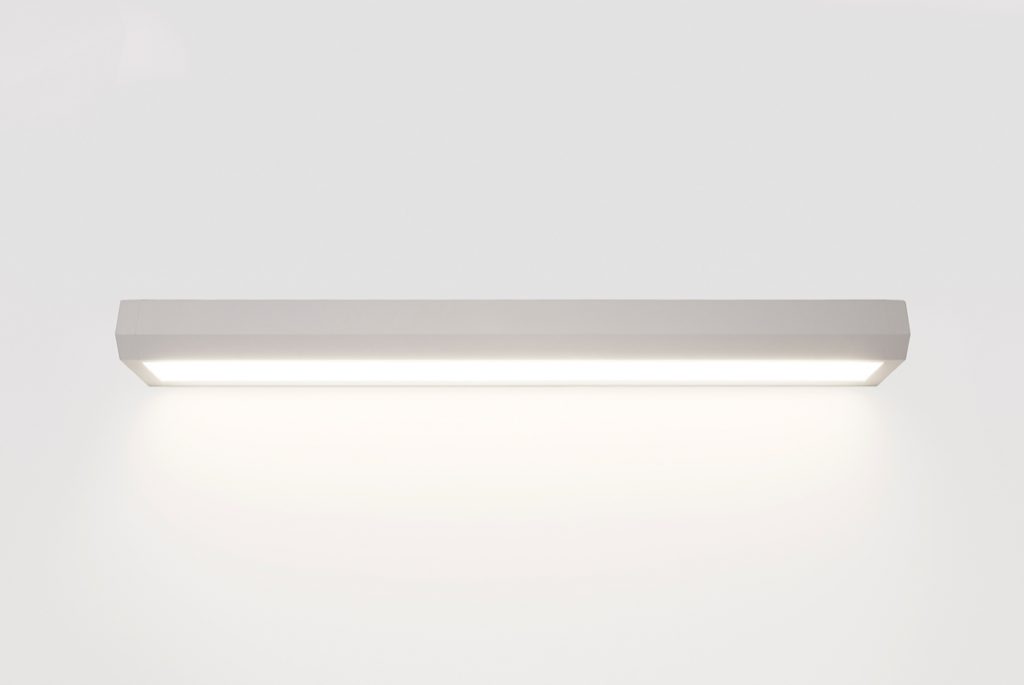

CURA: Shining a new light on patient care

Direct/Indirect

Cura offers multi-function lighting with ambient, exam, reading, and night light illumination from the bedhead. Each lighting function can satisfy the illuminance recommendations of ANSI-IES RP29-16. Optional BIOS SkyBlue™ technology provides a biologically optimized light spectrum that supports both circadian stimulus and visual diagnosis. Cura’s compact and durable form, combined with multiple light sources and control options, makes this luminaire particularly well suited to today’s healthcare patient rooms. Cura is also available with ChromaWerx DUO and SOLA capability.

Specifications

SIZE: 5″ X 2 25/32″
LIGHT SOURCE: LED
CHROMATICITY: STATIC WHITE, DUO , SOLA
LIGHT DISTRIBUTION: DIRECT/INDIRECT
MOUNTING: WALL

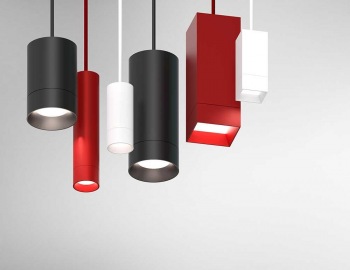

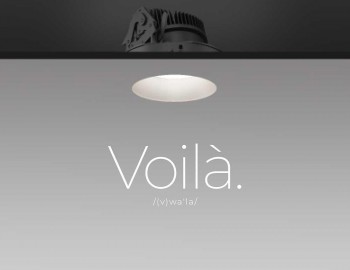

Voilà Cylinders and Cuboids – Reaching New Heights

Good news! Our highly coveted Voilà family has expanded with two new sizes in the cylinder and cuboid groups. At 4.5-inch and 6-inch heights, these new luminaires provide the same exemplary design elements for which Voilà has been recognized and celebrated since its launch.

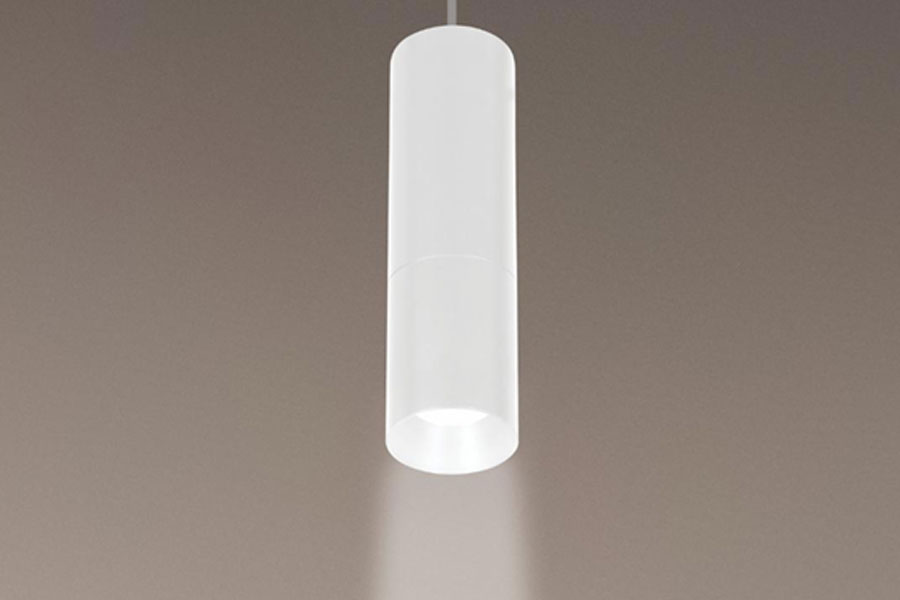

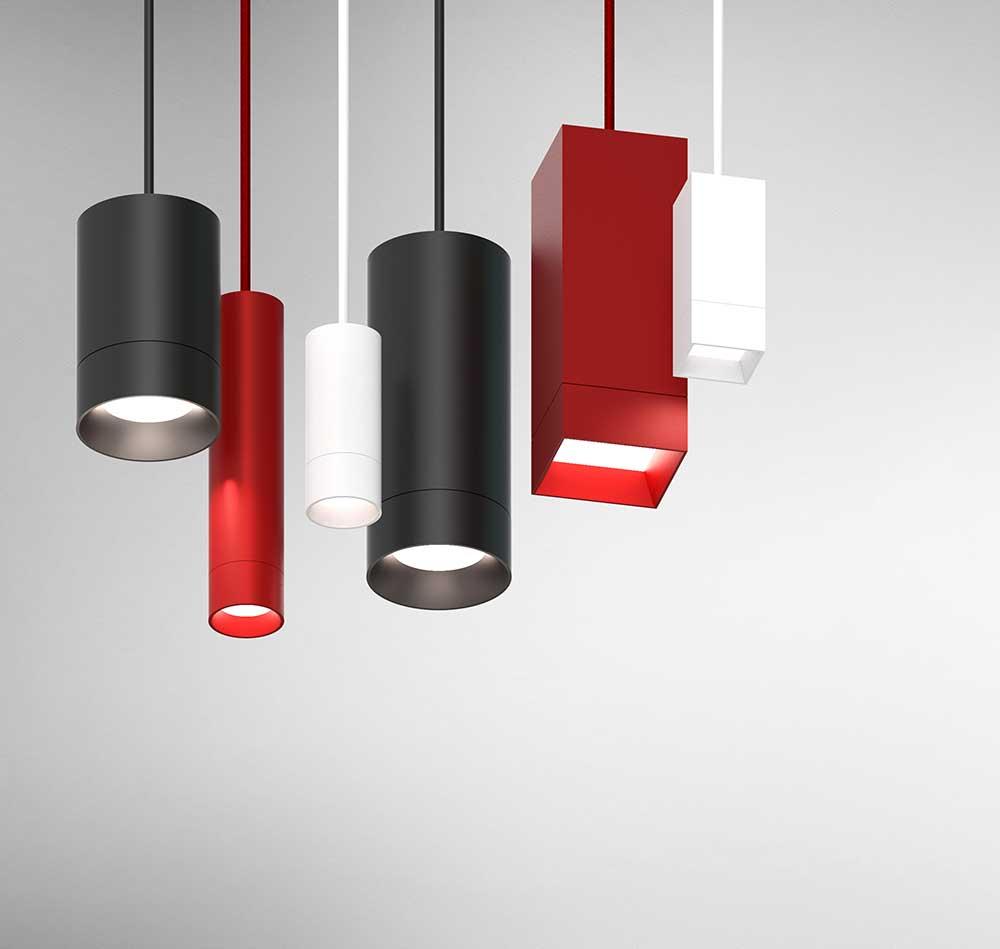

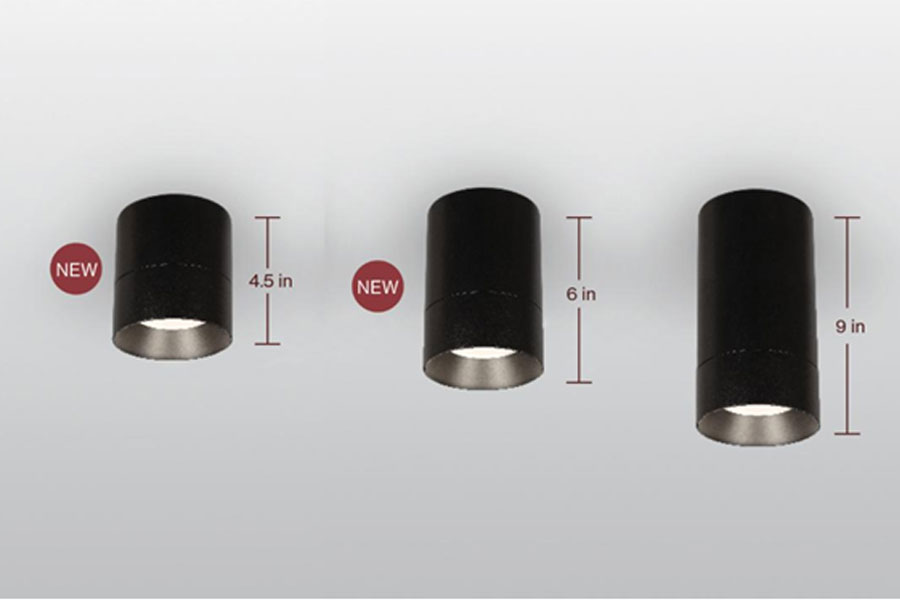

Meet the Cylinders

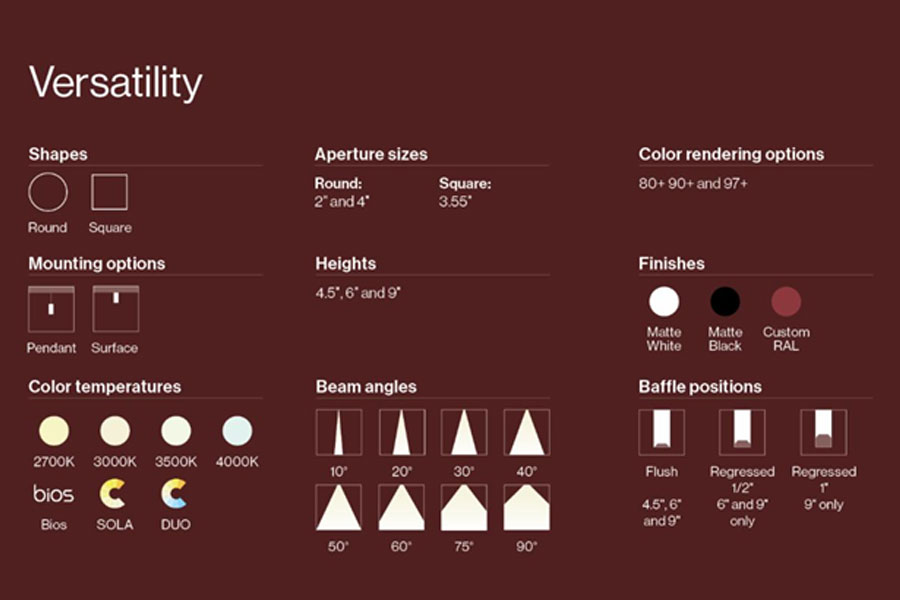

Voila cylinders feature precision optics, outstanding quality of light, robust versatility and user-friendly construction.

True to size: 2 in and 4 in diameter

3 heights: 4.5 in, 6 in and 9 in

Sola, Duo and Bios LED: Human-centric options

2 mounting types: Surface and pendant

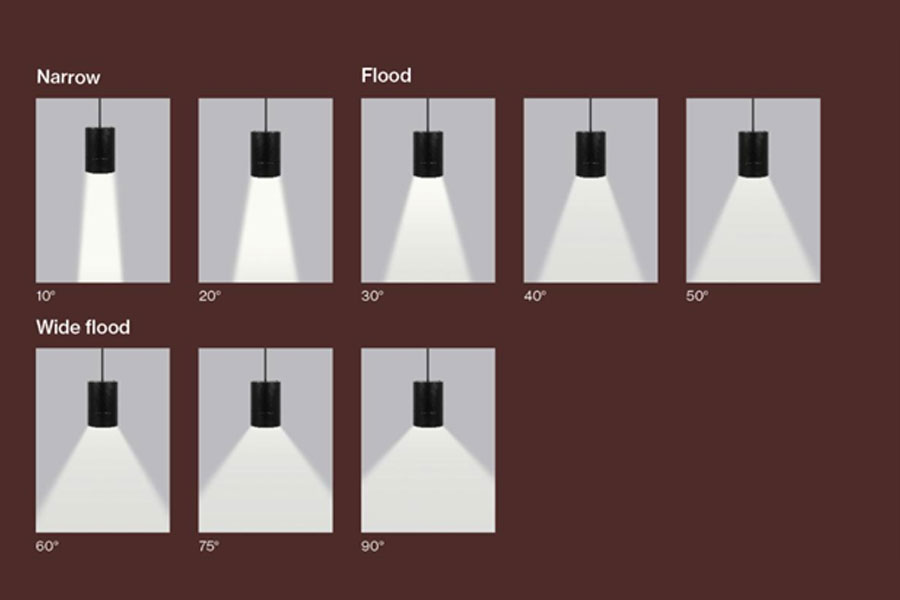

Optical Flexibility

With eight beam angle options, ranging from 10 to 90 degrees, Voilà is the ideal choice for various applications. Featuring our unique HyFlex™ quad-tiered optical system that combines both a reflector and refractor, Voilà enables beam smoothing and spreading without compromising performance.

• 8 beam angles
• Field interchangeable optics
• Multiple options: clear lens, frosted lens, and hex louvers

Consult specification sheets:
Cylinders 2-in
Cylinders and Cuboids 4-in

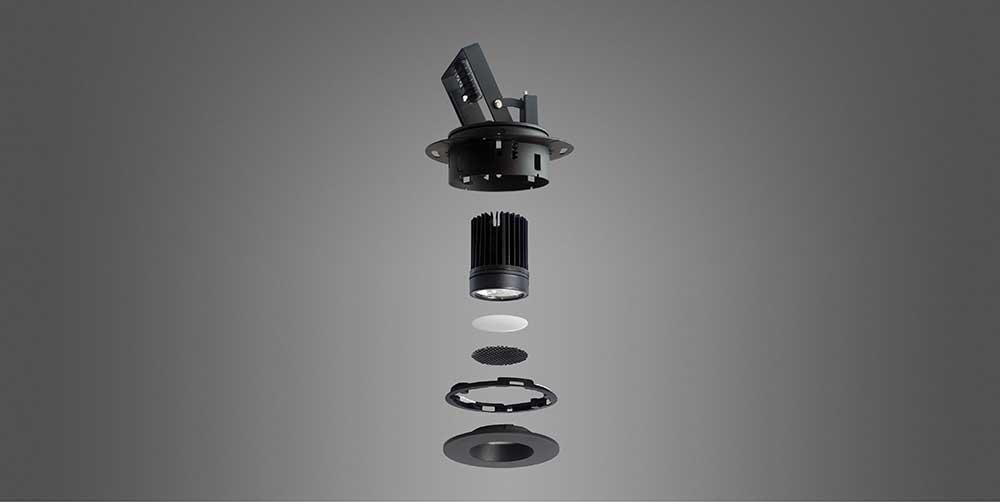

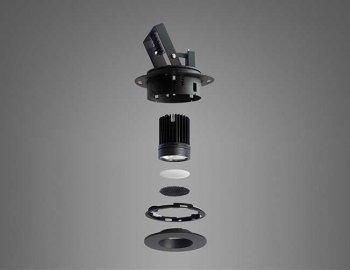

Designed From the Ground Up

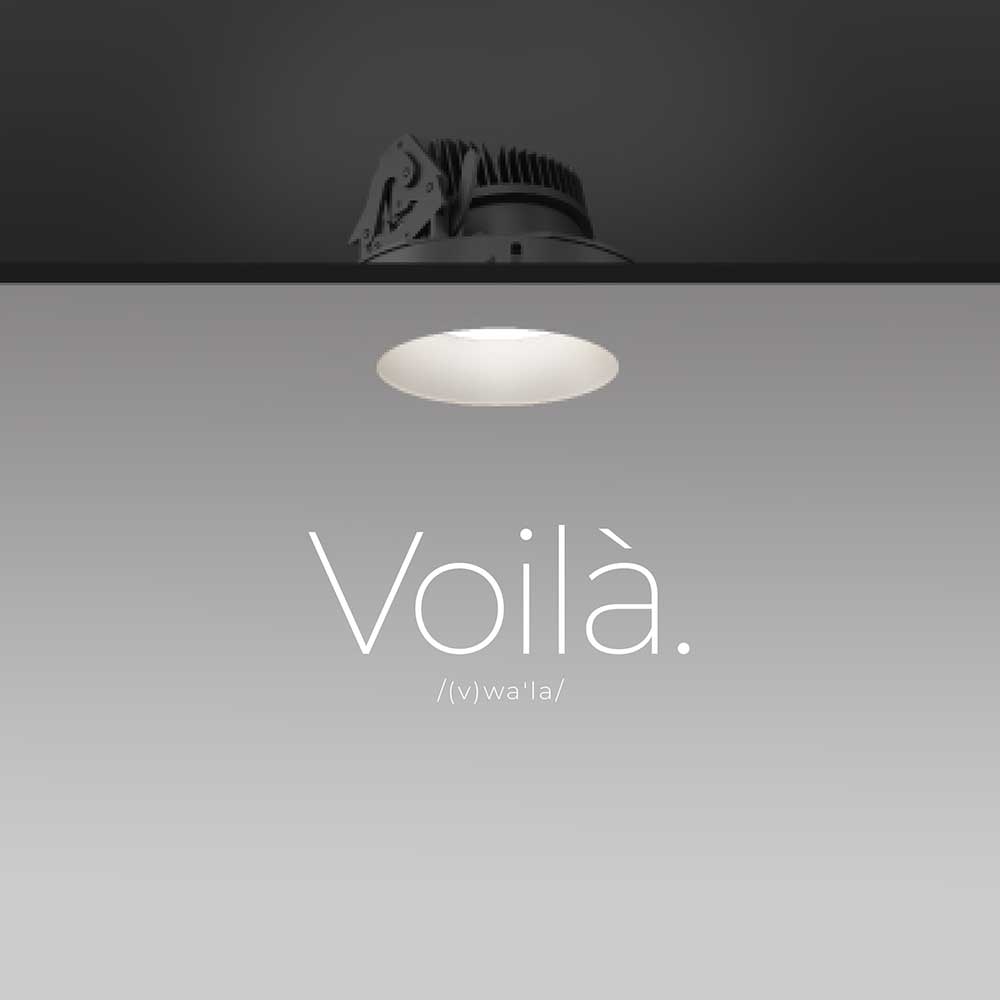

Voilà is our innovative class of downlights designed with our impeccable HyFlexoptics and precision craftsmanship.

• True 2-inch and 4-inch aperture
• Wall wash: maximum to minimum light levels are 3 to 1,super smooth illumination
• Rotates horizontally in 360 degrees and 30 degrees in either direction on the vertical
• Multiple distributions of 10, 20, 30, 40, 50, 60, 75, and 90 degrees
• Less than 4 inches into the plenum space

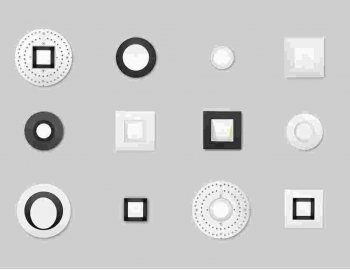

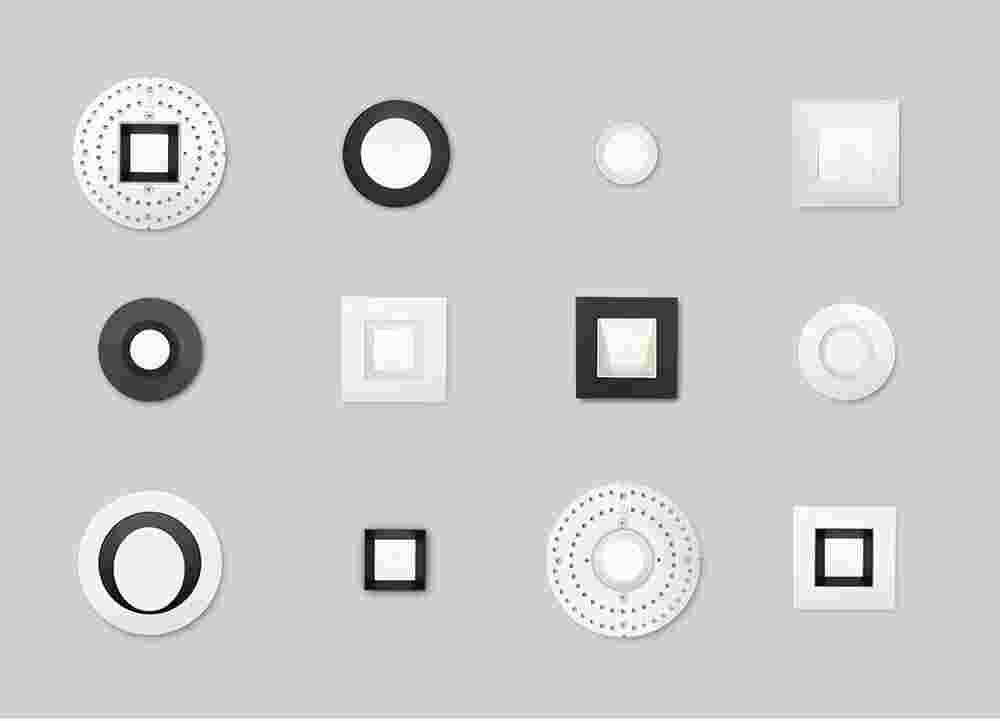

Voila – A Complete Downlighting Family

Lighting options are plentiful with the Voilà suite of downlights, from industry-leading wall wash optics to full downlight adjustability to beam angles ranging from 10° to 90° to pendants as focal points or props in your lighting story. Plus, applications abound with Sola, Duo, and Bios LED. Shape up your space with variety, style, and performance – Voila!

Explore More!

View the complete Voilà Cylinder brochure online. Contact your Regional Sales Manager for more information, or plan a virtual visit!

State-of-the-art Performance

• Up to 1600 lm/ft
• Low glare with a UGR of 6*
• 145 lm/W (HLO)
• Optical flexibility with parabolic louvers, HLO, wall wash or blanks

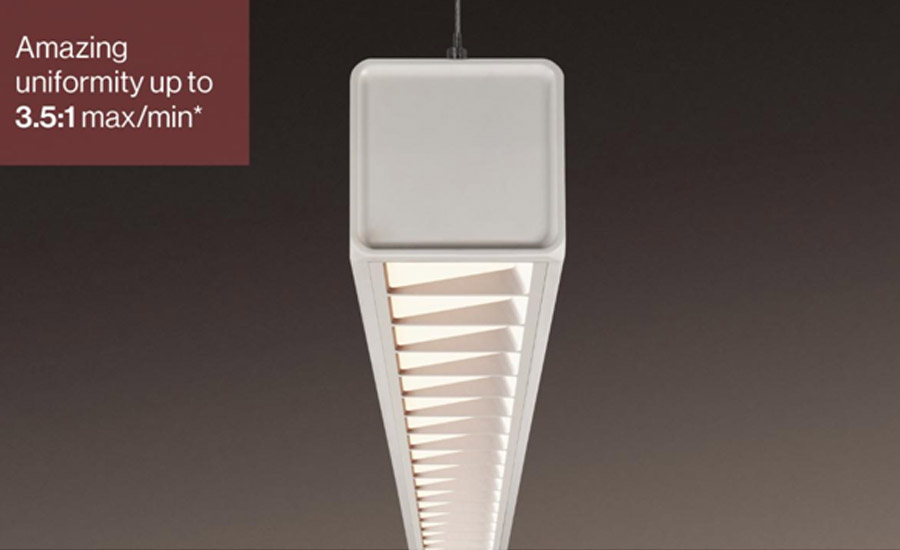

Easy on the Eyes

Ubik produces industry-leading low-glare illuminations. With black parabolic louvers, a UGR of 6-8 can be achieved based on a selected lumen package.

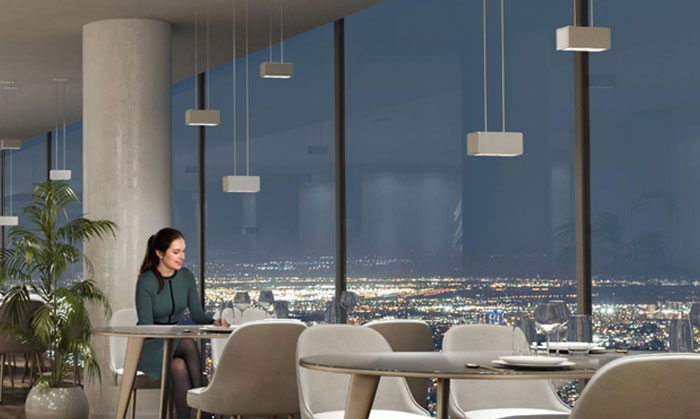

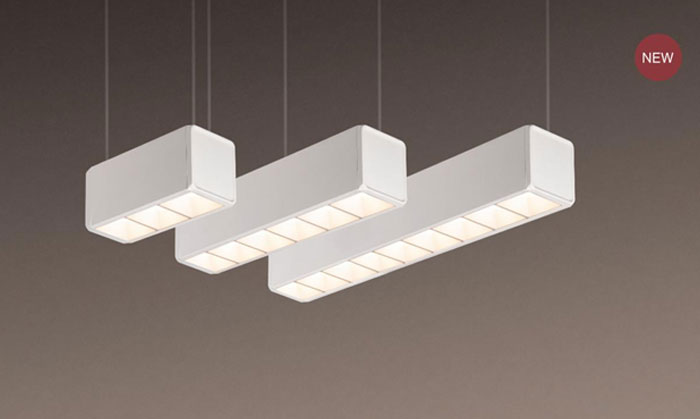

Ubik Cube

(linear downlight)

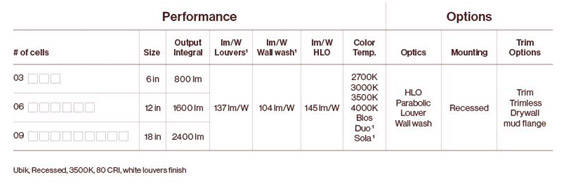

Cubes are linear downlights offered with three, six, and nine cells. They are available with parabolic louvers, HLOs, and wall wash optics with a wide variety of lumen packages offering up to 2400 lumens delivered.

• 3 sizes: 6”, 12”, 18”
• Optics flexibility: Parabolic louvers, HLO, Wall wash
• 2400 lumens delivered (9 cells)

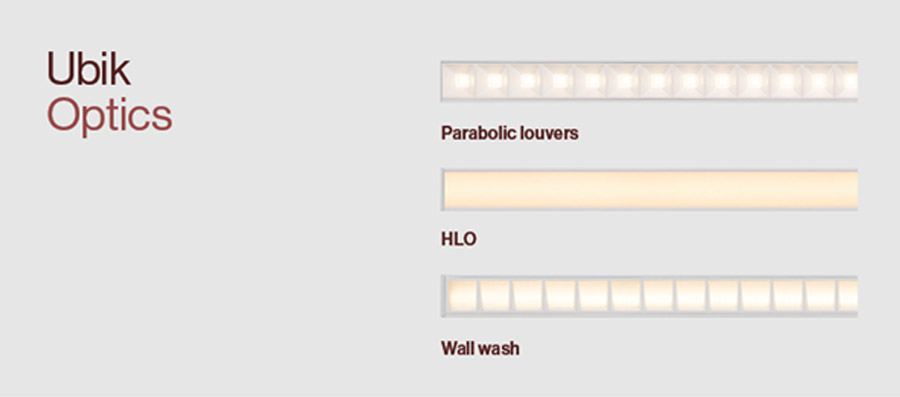

Variety is the spice of light

Mix and match optics to add interest and functional diversity to spaces. Parabolic louvers are available in three matte colors—black, silver, and white—HLO and blanks. Create patterns or combinations, the possibilities are unlimited with Ubik

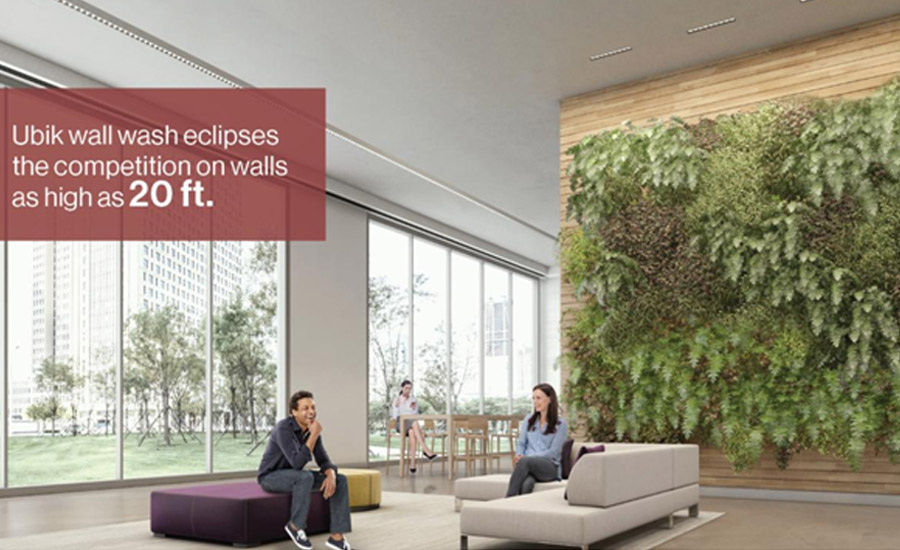

Wondrous Wall Washing

Wall wash is available in pendants, combinations, and cubes, and can achieve uniformity ratios of 3.5:1 on a 10’ wall.

• Fully lit lens that matches the Ubik direct look
• Available in Ubik cube, linear and combinations

A unique feature of the Ubik wall wash is that on higher walls of up to 20’, the wall wash maintains excellent performance.

Wide Open Indirect Optic

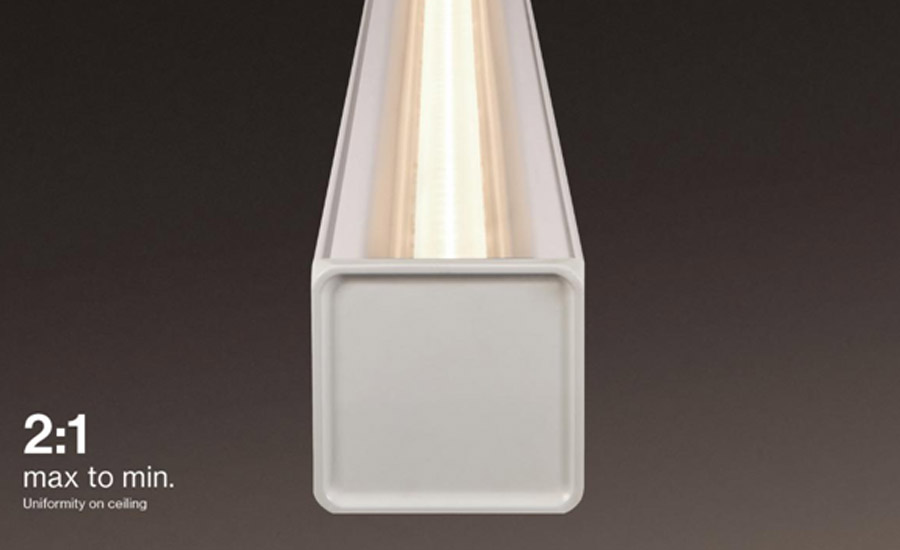

Ubik features the second generation of Wide Indirect Optic (WIO) offering impeccable indirect performance. With 8’ spacing, the ideal to 2:1 ratio can be achieved with a 24” drop for best-in-class performance. Fixtures can be placed as close as 12” from the ceiling without creating undesirable hot spots.

• Uniformity of 2:1
• Can be mounted 12” from the ceiling
• Far reaching indirect

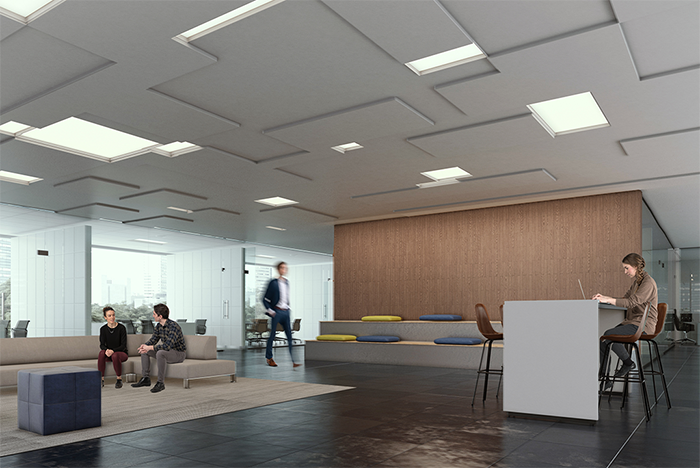

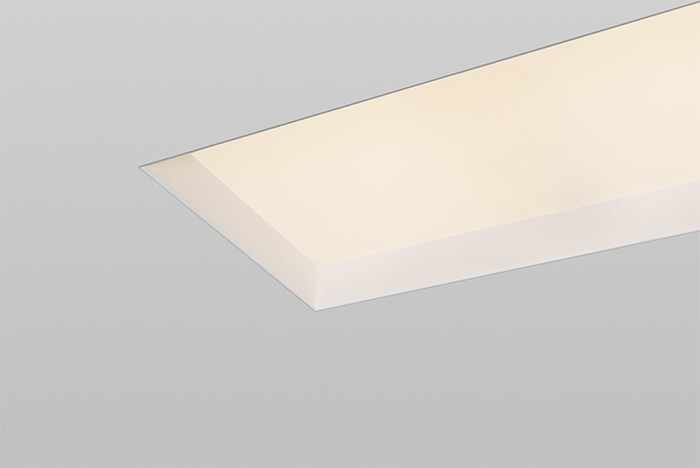

Lumenwerx’s Next Pop Design

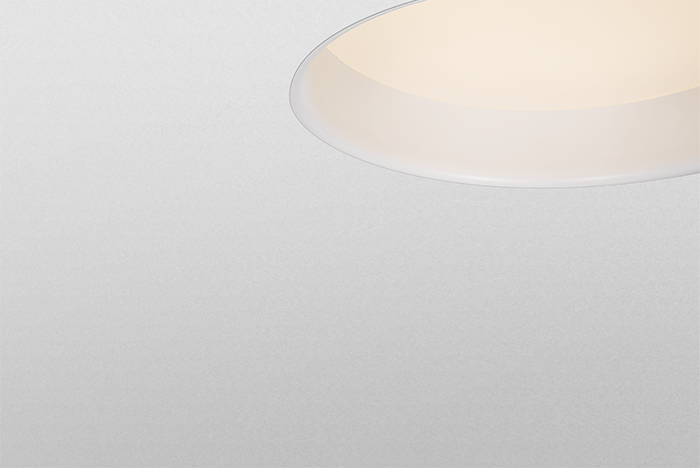

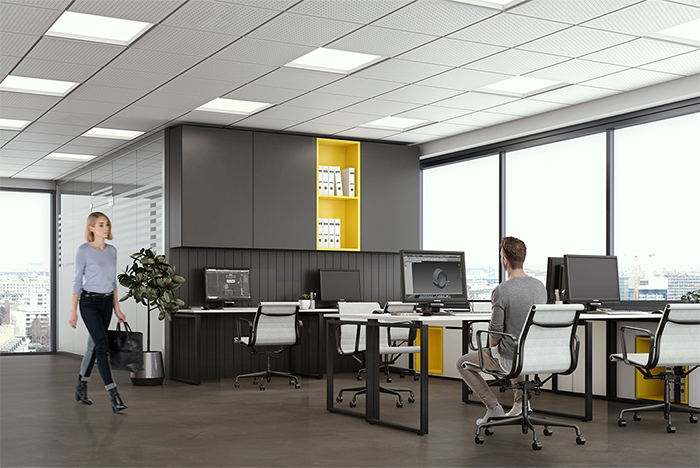

We are delighted to launch Pop Recessed Regressed, the latest addition to our Pop family. It can take center stage on its own or be part of a playful light composition amid other Pop luminaires.

Pop Recessed Regressed Square and Rectangular is a flexible, elegant, low-glare luminaire available in 10 different sizes, with or without trim. Its innovative, precision-crafted Uniform Lambertian Optic (ULO) allows all models have a UGR of <19, beneficial for creating well-balanced architectural spaces. The fixture can be integrated in various grid ceiling and gypsum board setups. Pop Regressed Square comes in Static White, BiosLED, Chromawerx – Sola, Duo, and Quadro.

Our Pop Star

• Up to 116 lm/W
• 2-inch regressed lens
• Uniform lens brightness across family (Unity Pointed technology)

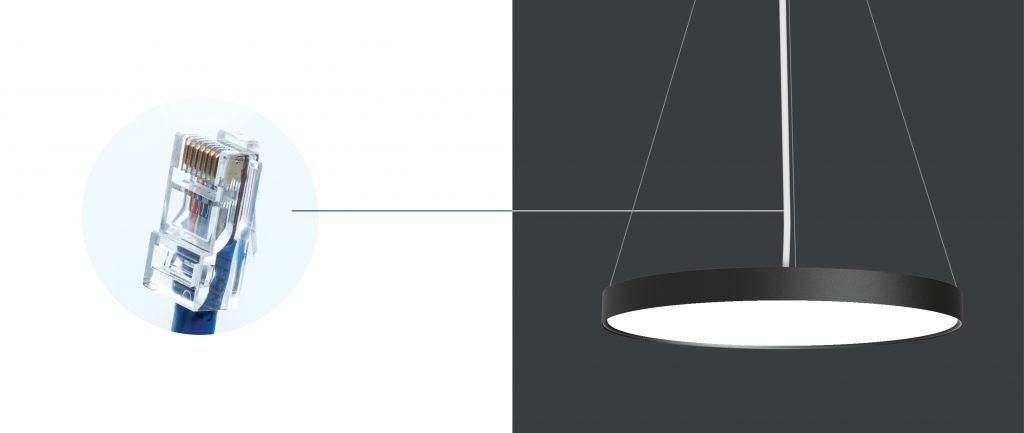

• Compatible with PoE, BIOS LED, WELL Building Standard

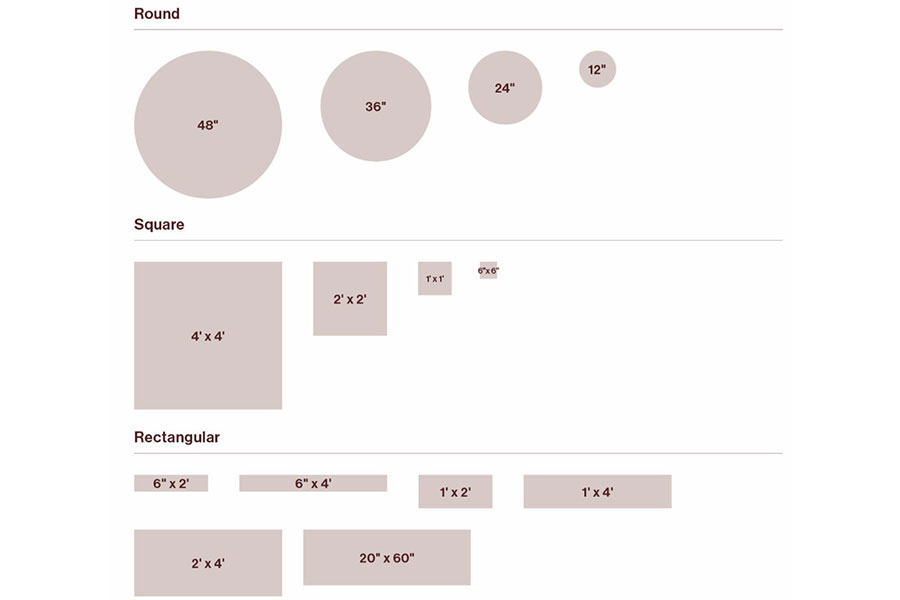

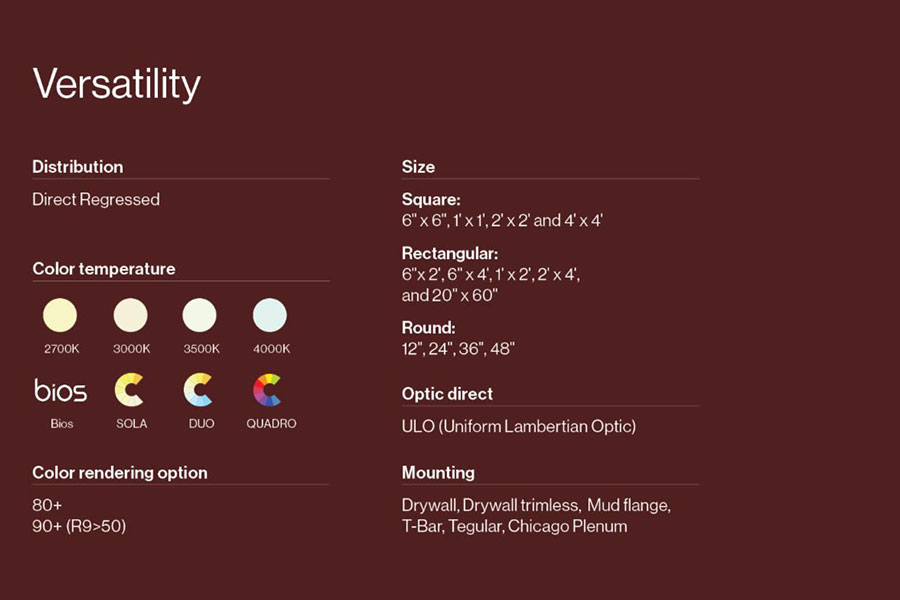

3 Shapes and 14 Sizes

Pop Recessed Regressed combines stylish geometric forms with excellent lighting performance to accentuate and/or enliven all kinds of architectural spaces.

Impeccable Performance

The Pop Recessed Regressed family rises above many others, especially with its ability to address a wide range of ceiling heights simultaneously. Plus, it’s equipped with our very own Uniform Lambertian Optic (ULO), which can deliver up to an impressive 116 lm/W.

• Up to 18 000 lm delivered
• Meets WELL for UGR in all sizes
• Reported TM-21 > 60 000 hours

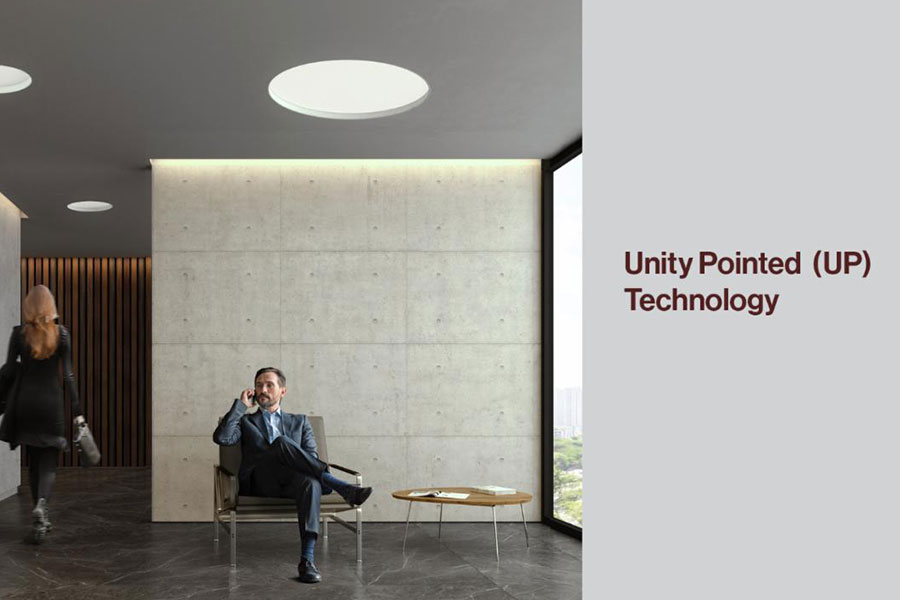

Featuring Our New UP Technology

For our entire Pop family, including Pop Recessed Regressed, once you decide upon low, medium, or high output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

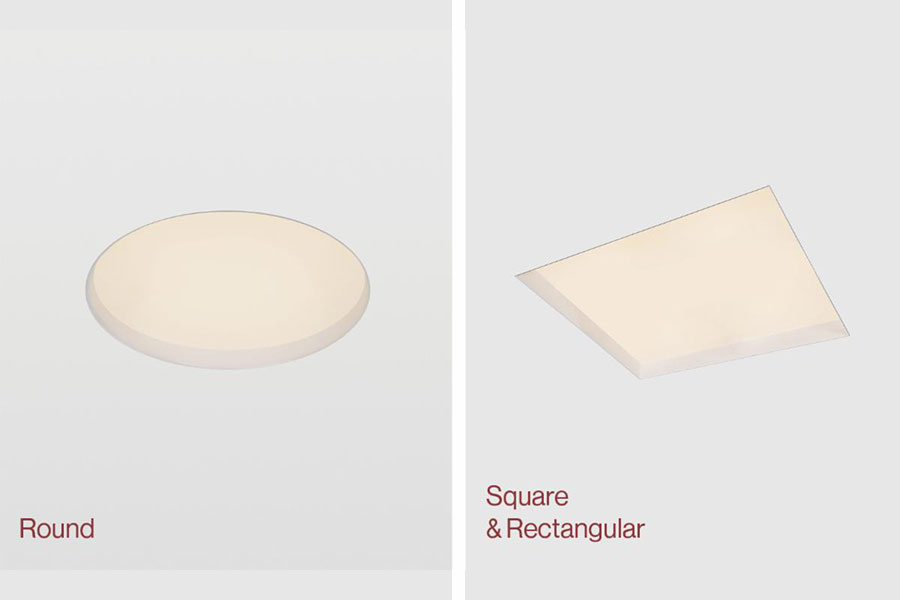

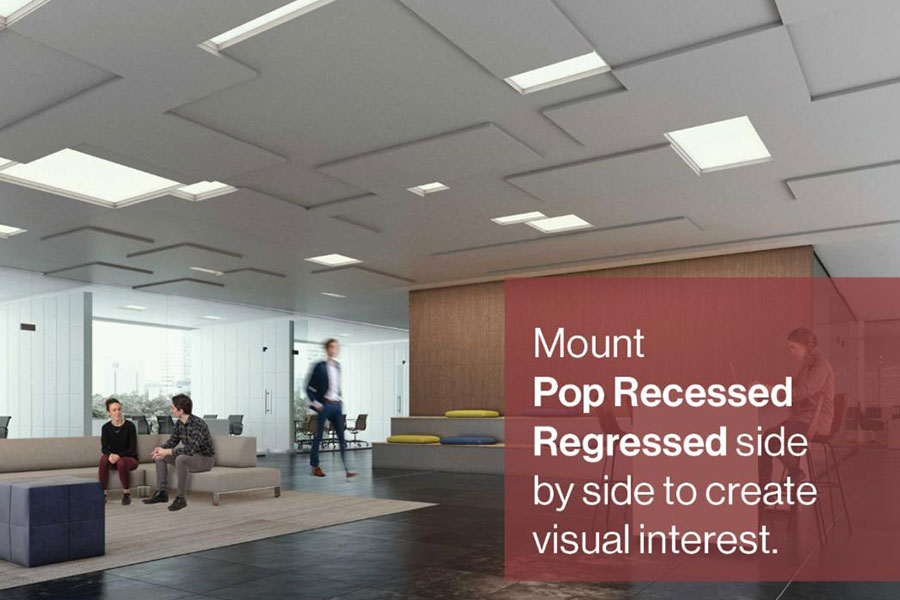

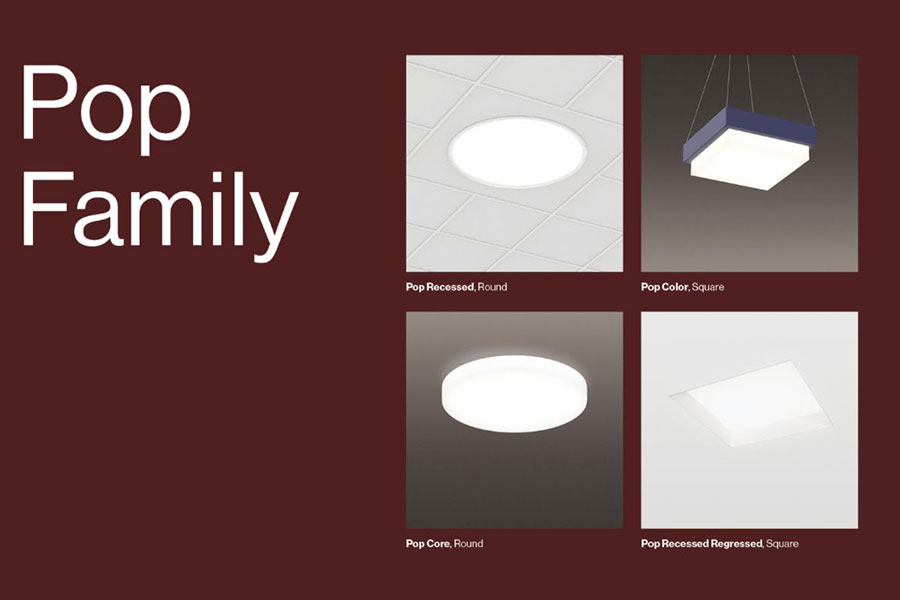

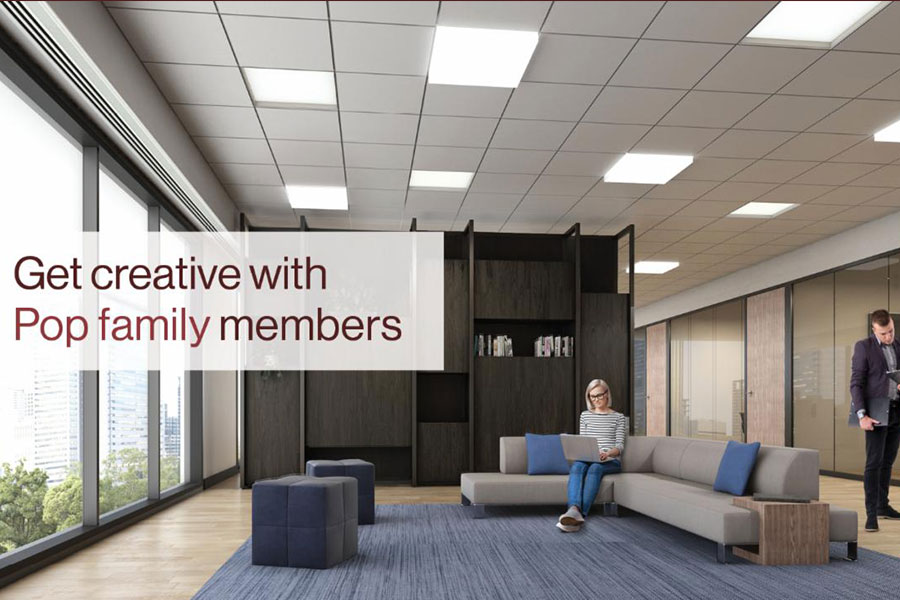

Mix and Match for a Unique Design That Pops!

Pop Recessed Regressed joins our already extended Pop family within which Pop Core, Pop Color, and Pop Recessed are among our most successful and comprehensive product lines to date!

• Square, rectangular, and round
• Can support Static White, BIOS LED, Chromawerx; Sola, Duo, Quadro and PoE technologies.
• Control agnostic with several systems including: 0-10V, ELV, DALI, Lutron and DMX.

Explore the possibilities!

View the full Pop Recessed Regressed brochure online. Contact your

Regional Sales Manager for more information, or plan a virtual visit!

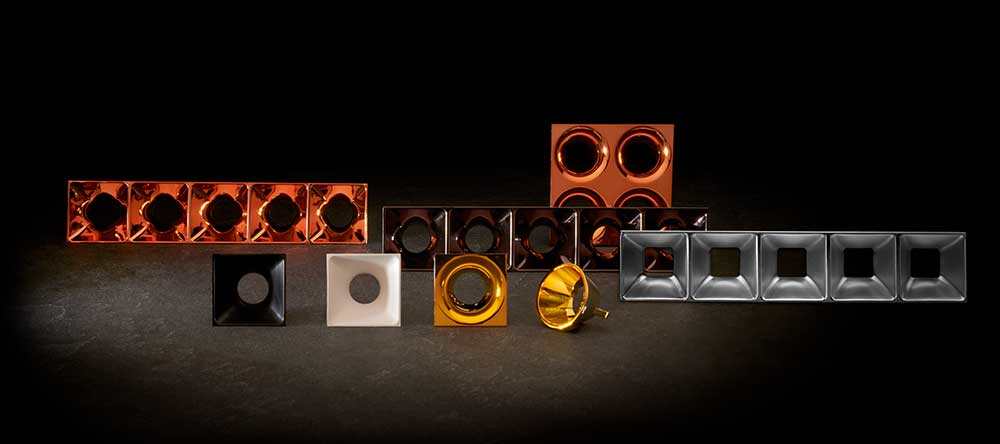

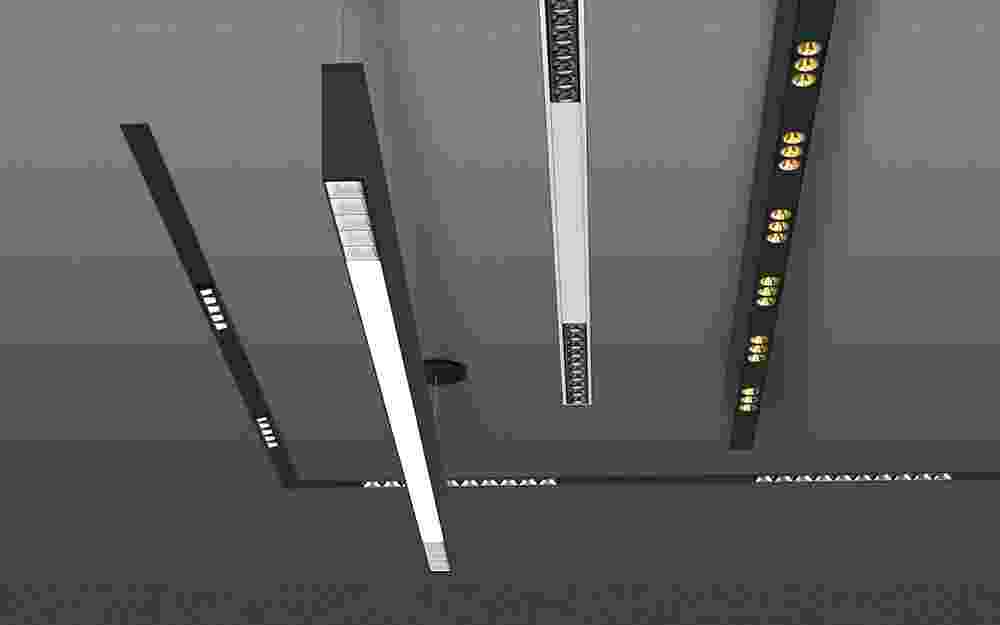

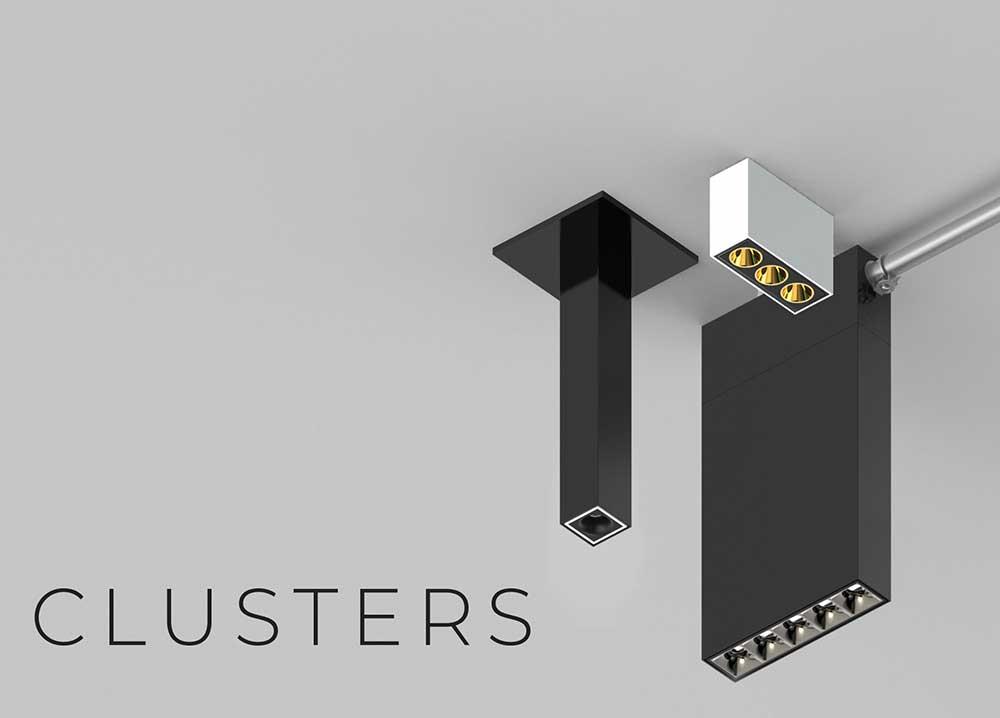

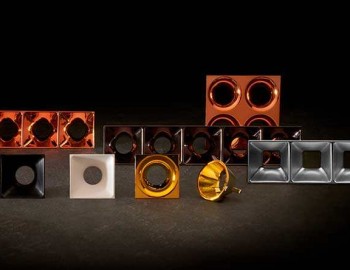

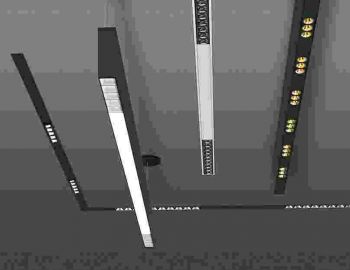

Infinite possibilities in form and shapes

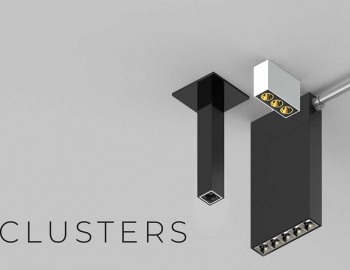

The Cluster collection illuminates in multiple dimensions. From a single cell, Clusters can scale up to linear or planar arrays for recessed, surface, or pendantmounting.

Using a narrow channel, linear Clusters can be installed in combinations and patterns with diffusers in a multifunctional system that includes optional blanks.

• 4 different optics: soft edge, sharp edge, parabolic, and wall wash
• 3 louver shapes: conical, square, and hyper parabolic
• 5 louver colors: matte black, matte white, cooper, gold, and black chrome
• UGR of <10

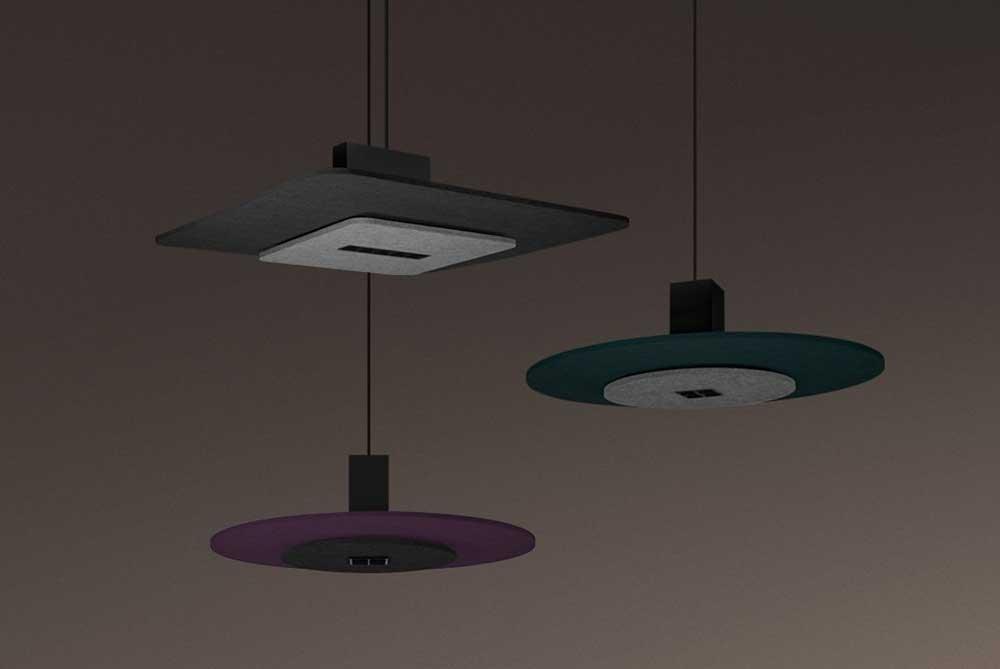

• Pendant acoustic version also available

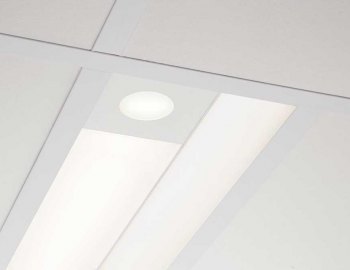

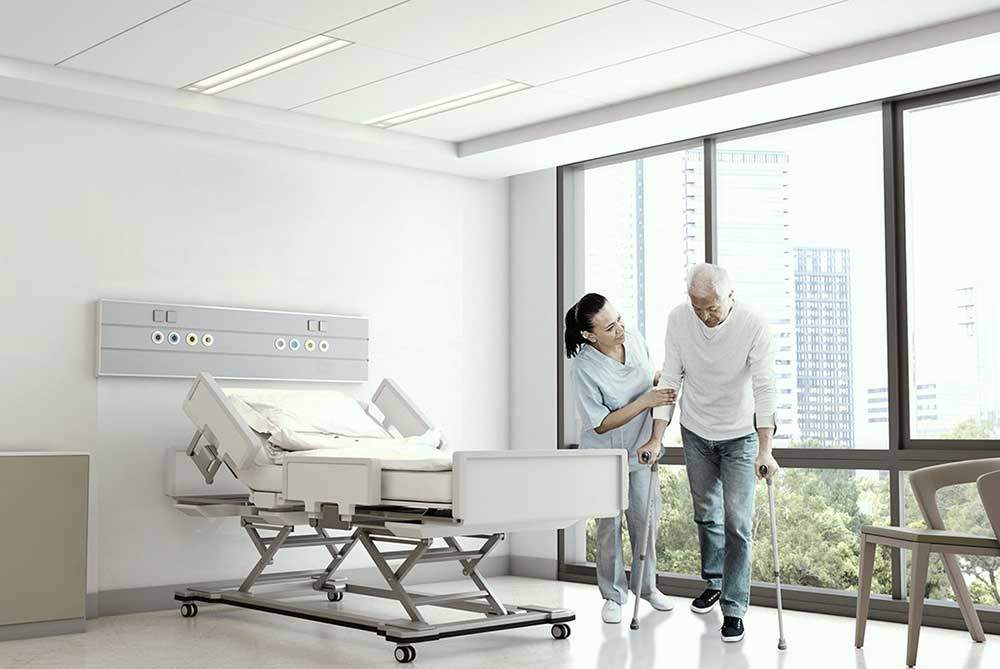

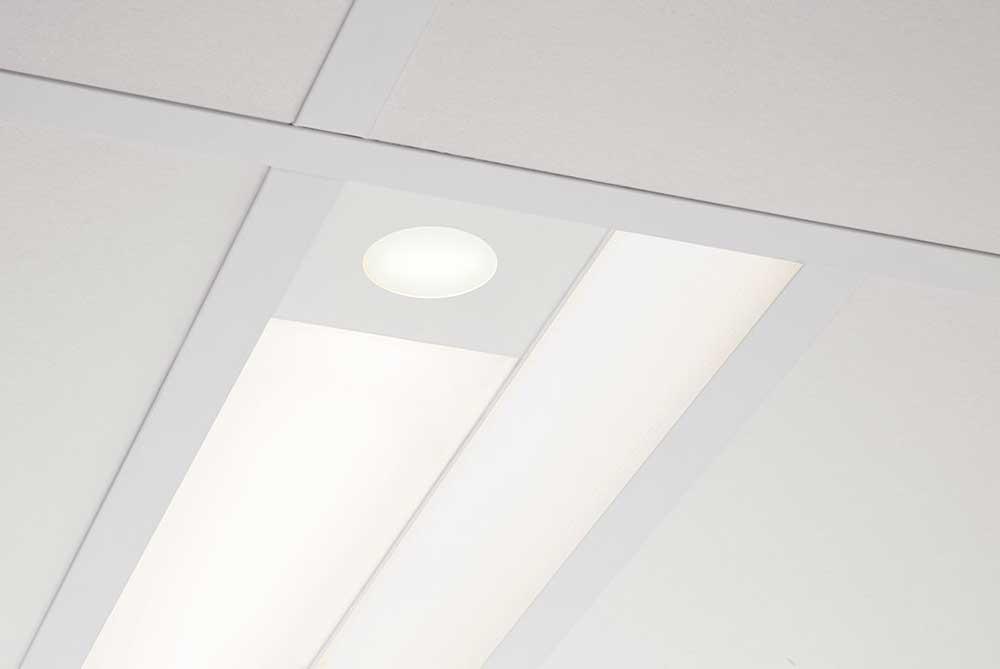

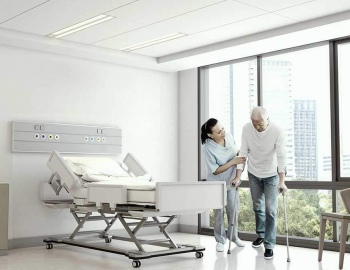

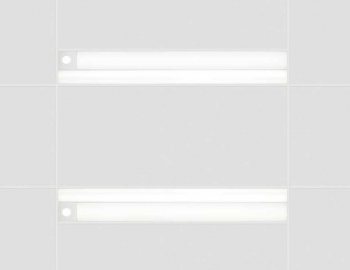

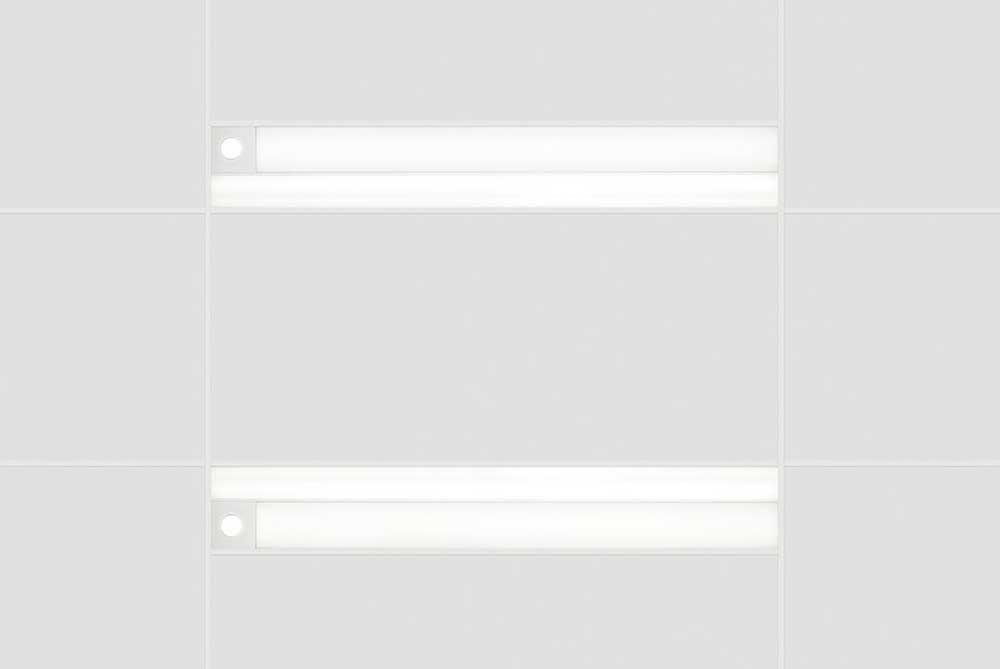

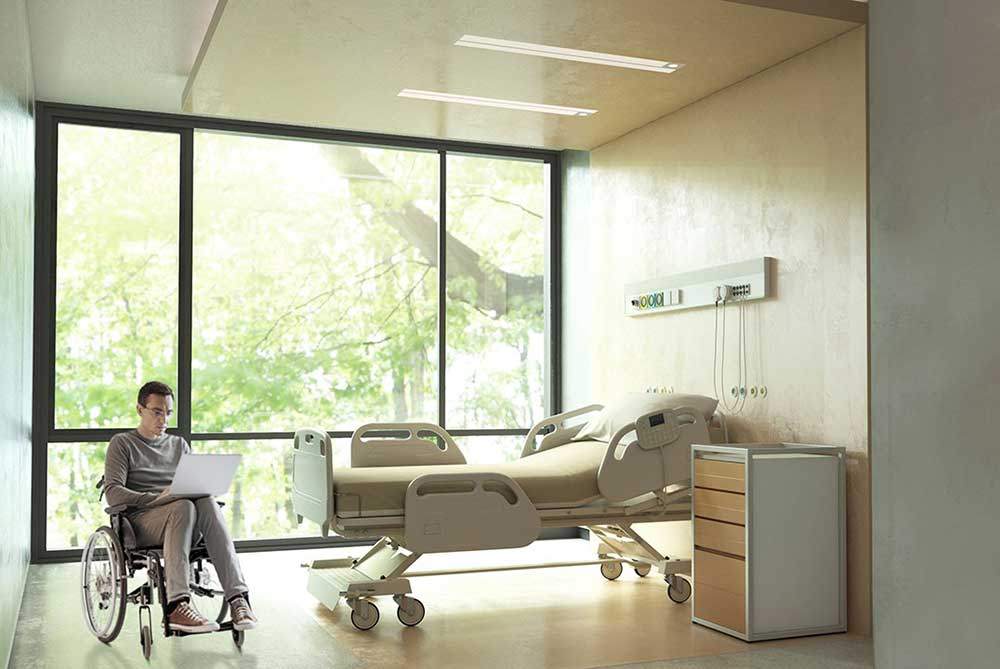

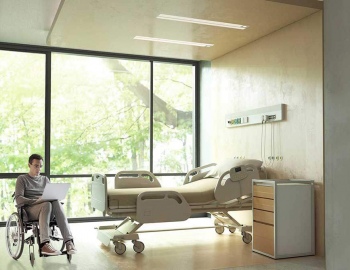

Lighting for superior patient care

The practice of healthcare is continually evolving. RIZE addresses the needs of medical practitioners and patients through advanced multi-mode lighting control. Compact, durable, and easy to install, RIZE provides ample illumination for multiple applications: ambient lighting, examination, reading, and more.

• Shallow to accommodate limited plenum space
• Color and biological tuning capabilities
• Multi-mode functions: exam, ambient, reading
• Control-ready for any system

Intelligent optical diversity

Squero, where superior craftsmanship meets optical performance and premium sound absorption. Made from fine-cut acoustic felt, Squero offers four standard optics for advanced illumination—Matte Parabolic Louver, Specular Parabolic Louver, MiniatureReflector Optics, and High Lambertian Optics—plus adjustable accent modules.

• Multiple optic options: mini reflector, parabolic louver, diffusion lens
• Flush lens to highlight the detail of the optic
• <10 UGR (Unified Glare Rating)
• Up to 116 lm/W illumination
• Contemporary square-cut acoustical felt
