StencilFlex™ & F.L.E.X Technology™
Flex your creative muscles. You are about to experience design freedom like never before.
Many say flexibility cannot be achieved without the complexity and high installed cost of low-voltage trask systems and remote drivers.
By thinking outside the fixture, Axis had engineered something that might just change everything about architectural pendant lighting.
Watch the three videos below to learn more.
Lighting Inserts
Layers of Light Reinvented
Layers of Light Reinvented
WHAT IS STENCILFLEX™?

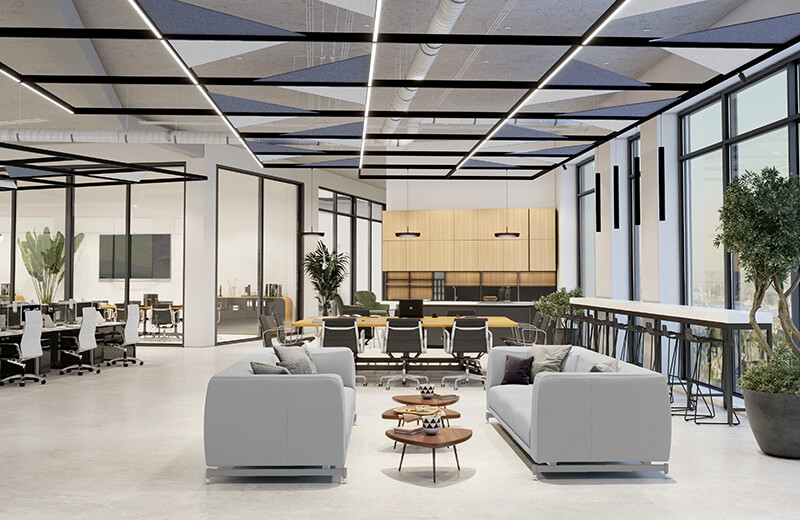

A framework for limitless lighting design
Based on the Stencil® form factor, StencilFlex is a simple, cost-effective pendant delivery system for the layers of light – and sound attenuation – you want, where you want them. StencilFlex incorporates all the benefits of F.L.E.X Technology™, including cost-effective line-voltage lighting solutions at scale and trouble-free energy code compliance.
HOW DOES IT WORK?
A framework you build on
The beauty of StencilFlex™ is in its design simplicity and freedom. Building-block design enables a true building-scale solution, as it allows several professionals to work on the project concurrently. And, unlike with low‑voltage lighting, F.L.E.X™ lighting systems are very energy‑efficient regardless of the layout, with low lighting power densities that ensure compliance with local energy codes based on ASHRAE/IESNA standards.
- Framework & Controls
- Lighting Inserts (Linear, AxisTrak™ & MPI)
- Track Elements & Decoratives
- Universal adaptor
- Acoustic Panels (SoftZone Horizontal)
F.L.E.X™ lighting systems incorporate a broad range of layers of light and, in the case of StencilFlex™, layers of sound attenuation, as well.
Framework
INNOVATIVE GRID STRUCTURE
Creating neighborhoods of light
The StencilFlex™ design process begins with the framework, a cost-effective line‑voltage structure featuring patent‑pending IMW™ (Integral Modular Wiring) technology. Frameworks are built using prewired segment extrusions and Hubs (shown below) to create different linear grids and repeatable patterns. Depending on lighting requirements and design intent, a StencilFlex layout can include several frameworks, each one a neighborhood light, or it can form a single, large-scale framework with multiple neighborhoods of light.
- Cables and wire-in terminals for inserts are already built into segments.
- Wiring is standard 277 V with standard 4” j-box at each power drop.
- Power/control cabling is concealed in suspension stems.
- Integrated emergency lighting capability, unlike for low-voltage systems.
Where there is no need for lighting, blank inserts in the StencilFlex™ framework add a sophisticated, minimalist touch to the overall design.

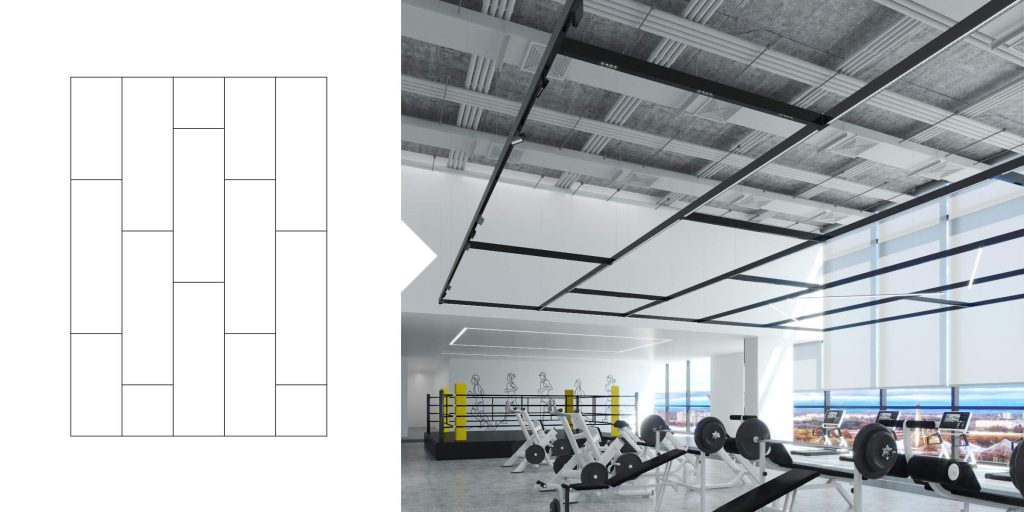

LINEAR
RECTANGLE
PARALLELOGRAM

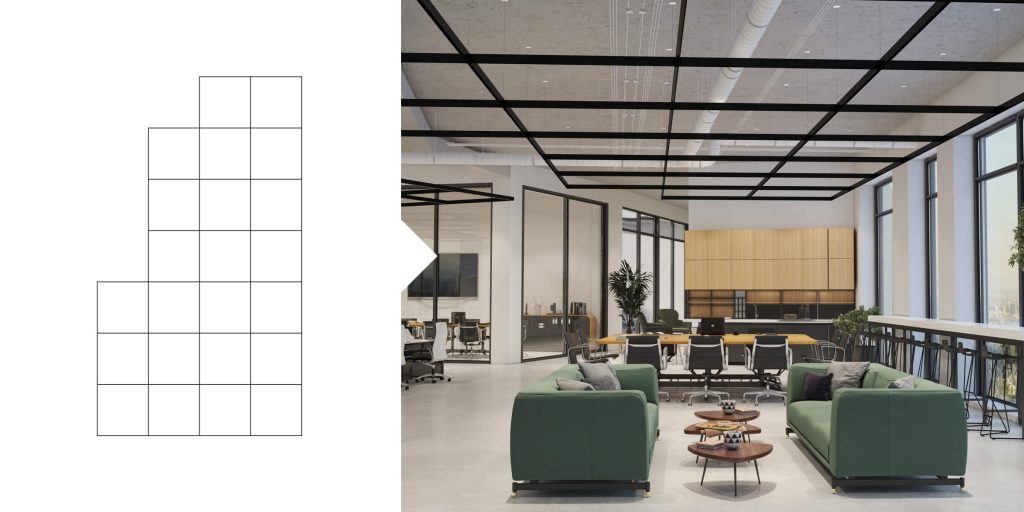

SQUARE

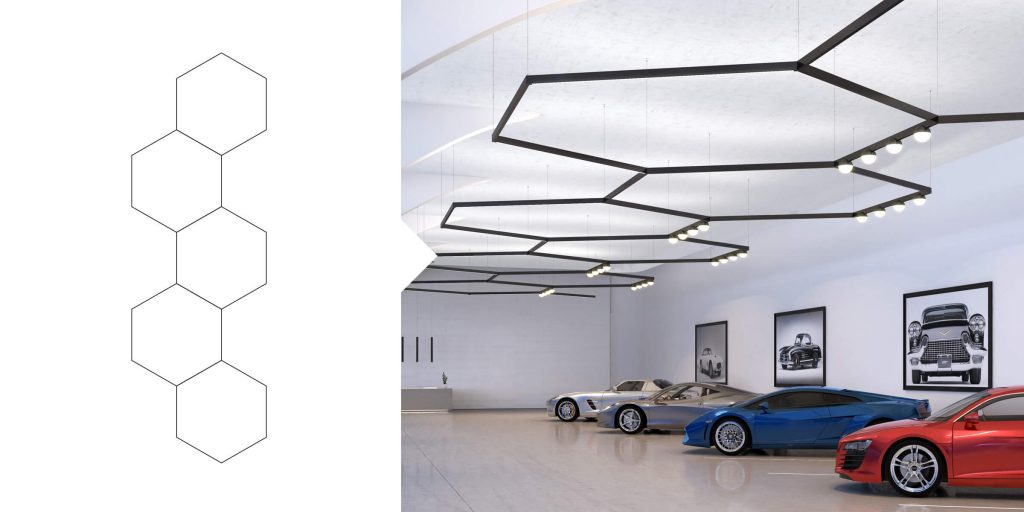

Hexagon
Controls
Choose between standard 0-10V and high‑precision Empower wireless technology to meet lighting control requirements.
WIRED CONTROLS

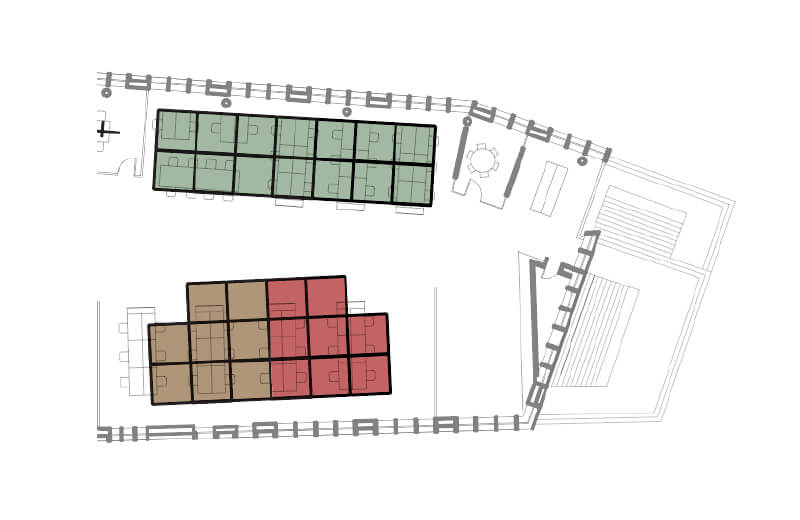

Standard 0-10V zoning
In its most basic form, StencilFlex™ lets you control lighting using a prewired framework with pre zoned inserts. StencilFlex is also compatible with all circuit-based wireless control systems. With a 0-10V wired system, lighting control is circuit-based. So you can control groupings of light in a specific area. Direct and Indirect Nomadic™ inserts are on different circuits.
- Control area groupings of lighting inserts
- Integral mini line-voltage driver in every Nomadic insert
- Integral wiring throughout StencilFlex framework
- Supports multiple fixed circuits with separate D/I control
- Conceals cables for power drops with Stem Mount

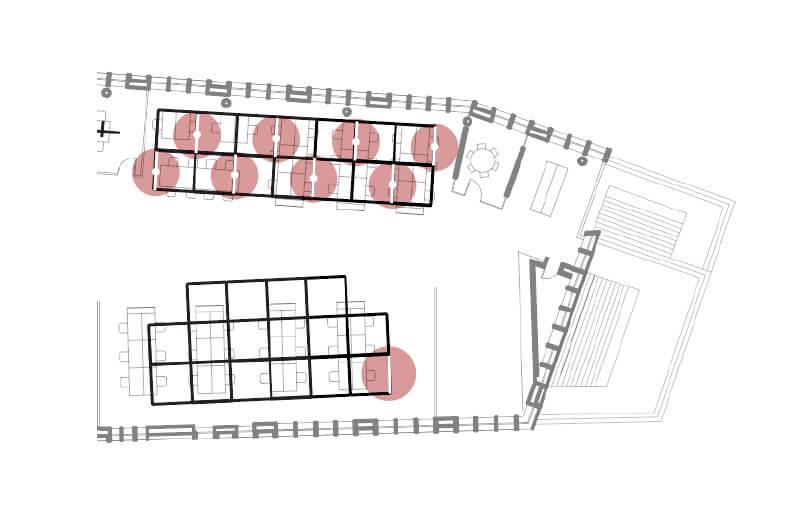

WIRELESS CONTROLS
Featuring Empower
Developed by Axis, Empower is a worry‑free wireless platform that is easy to use. It leverages open‑standard design flexibility and individually controlled inserts, ensuring more freedom to create visually engaging lighting that is smart and connected.
- Every insert features a mini driver and an Empower mini control module compatible with leading lighting control manufacturers.
- Open protocols facilitate wireless programming through application software provided by qualified Empower partners.
- Built-in intelligence means that wireless control is available in every insert, at all times… Move the insert, the control moves with it.
Lighting Inserts
Innovative IMW™ line-voltage frameworks and Nomadic™ lighting inserts herald a new approach to luminaire wiring that brings down the cost of architectural lighting.
LIGHTING INSERTS
Orchestrating layers of light
Lighting inserts snap into framework segments and connect with IMW™ wiring harnesses. Inserts feature Nomadic™ technology to facilitate interchangeability (assistance of certified electrician required). Each insert is equipped with an IMW wire-in terminal and a hassle-free mini line‑voltage driver, eliminating the need to install remote drivers.
- Linear Lighting Inserts (direct, indirect, direct-indirect, including MikroLite® downlighting and wall washing elements).
- AxisTrak™ Inserts allowing for the integration of AxisTrak™ track lighting elements, Axis decorative pendants and third-party pendants anywhere along the rail.
- Mini Power Inserts (MPIs) accepting Axis decorative pendants and third-party pendants.
MikroLite®

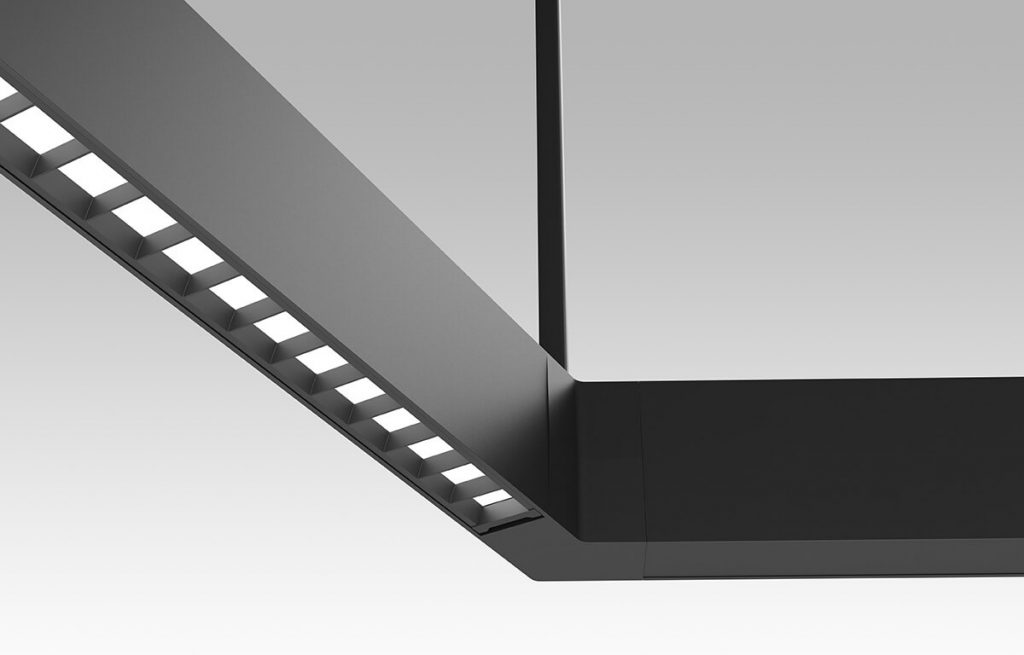

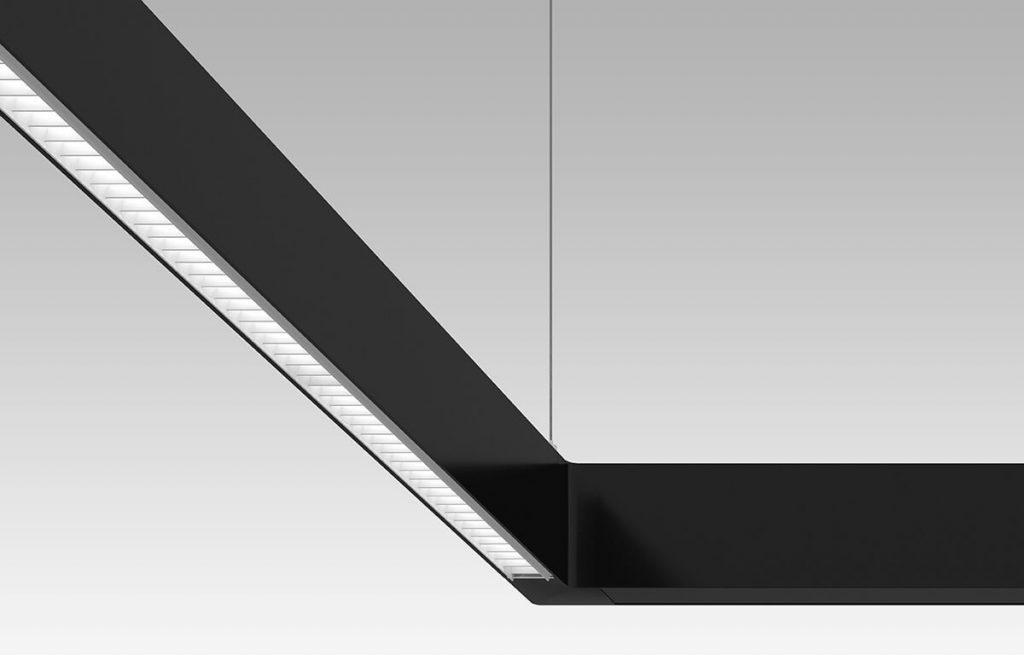

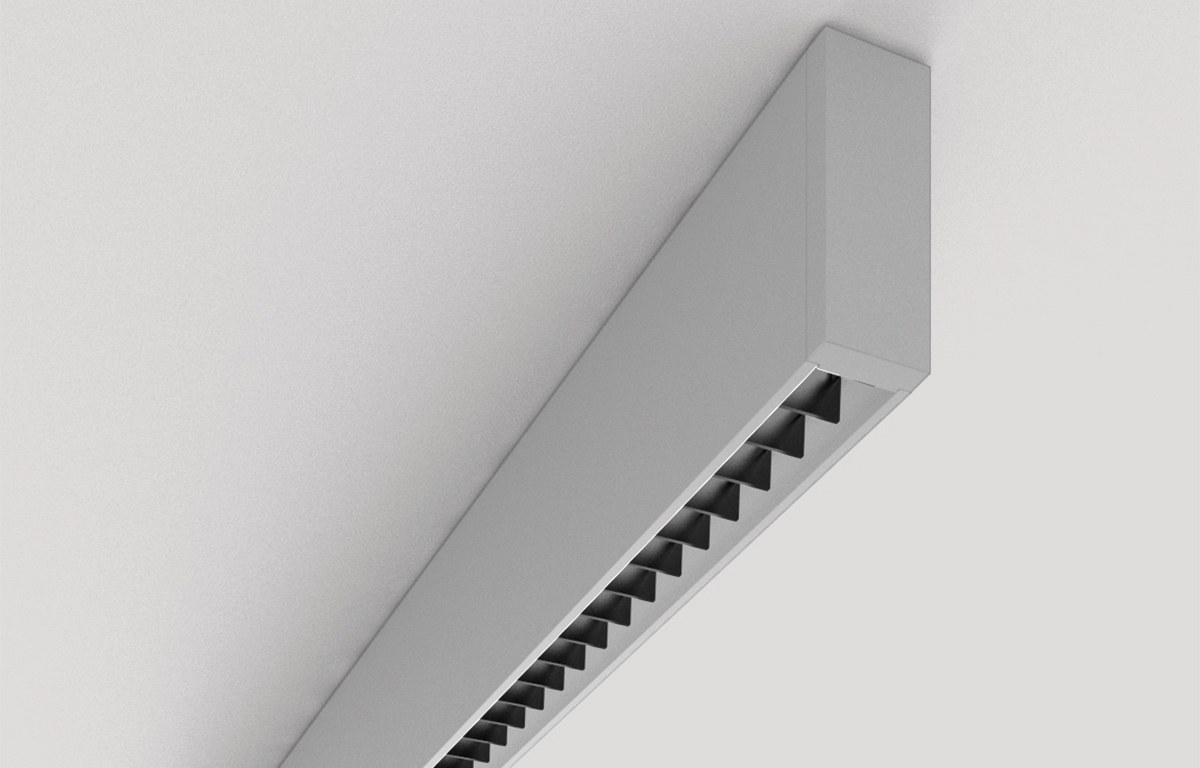

Louver 60
Louver 70
Flush Lens
Regressed Lens

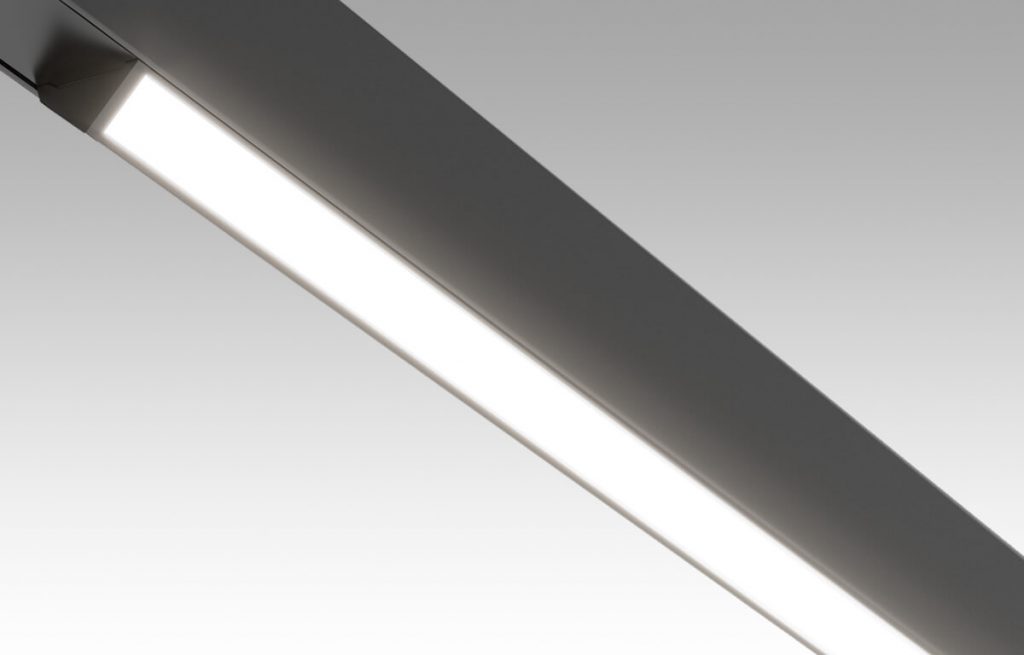

Wall Wash

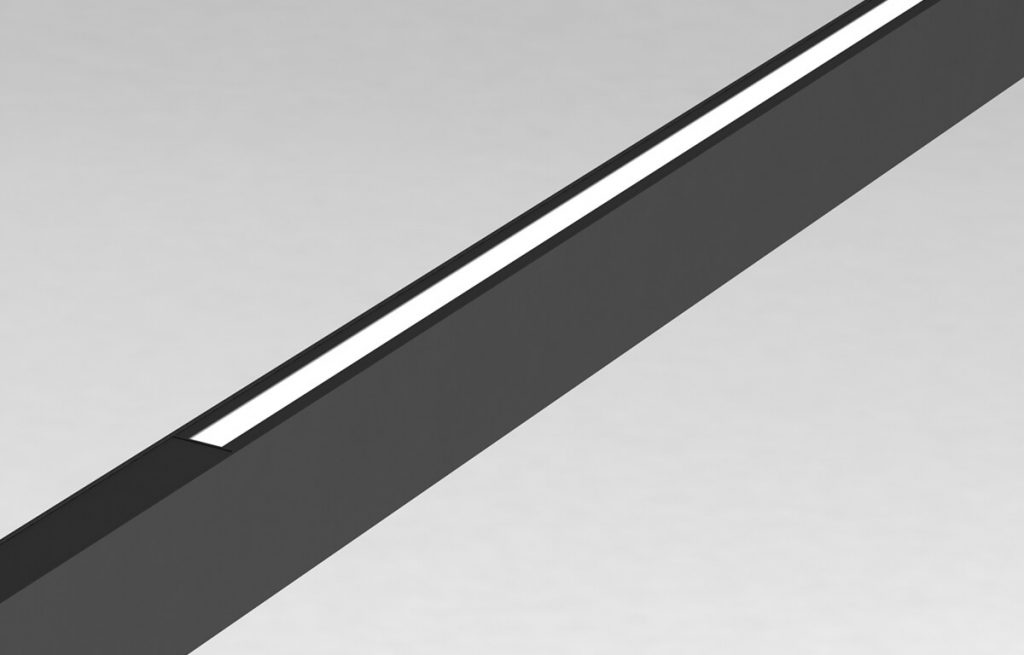

Indirect (SurroundLite™)
AxisTrak™ Insert
TRACK LIGHTING INSERT
AxisTrak™ at a glance
Newly developed by Axis, AxisTrak technology is a cost‑effective alternative to standard track lighting. AxisTrak Inserts combine the engineering value of StencilFlex™ line-voltage frameworks with the precise aiming and flexibility of low-voltage track lighting. This innovation translates into a price tag and installed cost that is far lower than for standard track systems.
- AxisTrak lighting elements come prewired with AxisTrak on-track adaptors.
- Lightweight minimalist design with no remote drivers
- AxisTrak inserts from 3’ to 8’ (to fit segments)
- IMW™ connectability with StencilFlex segments
- Integral constant-voltage driver (48V)
- Multiple power levels (15 W/ft to 7.5 W/ft) to ensure code compliance
Track lighting elements
Compatible with AxisTrak™ inserts

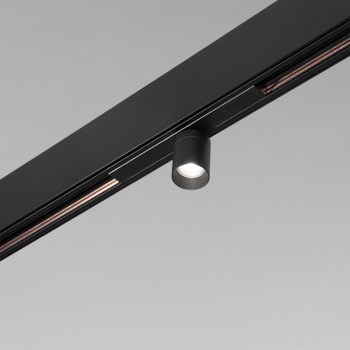

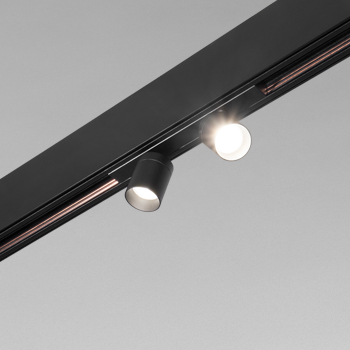

Stella spot 32 – Single

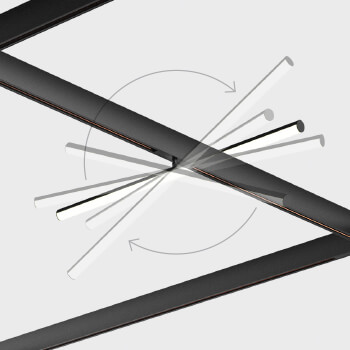

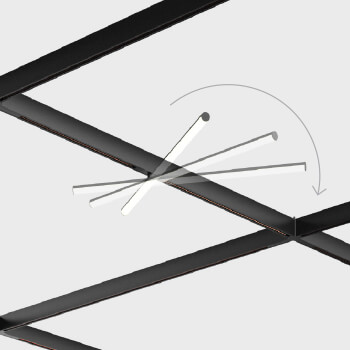

Orbit Tube – Pivot

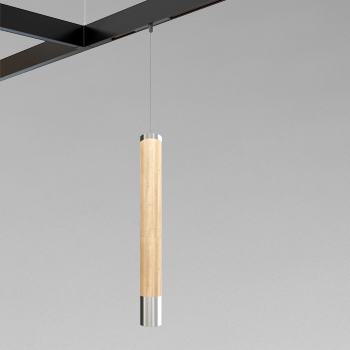

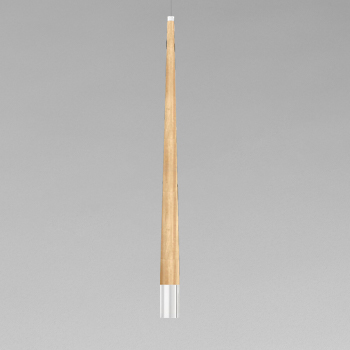

Chime Cylinder
Stella spot 32 – Double

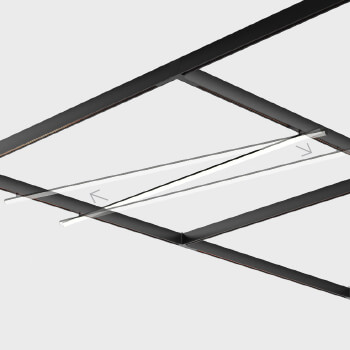

Orbit Tube – Bridge

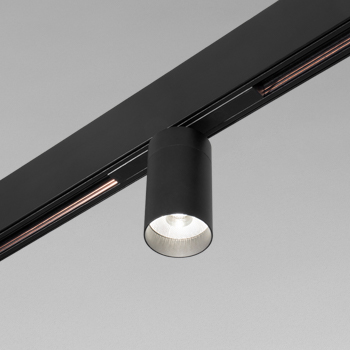

Stella spot 55
Orbit Tube – Stagger

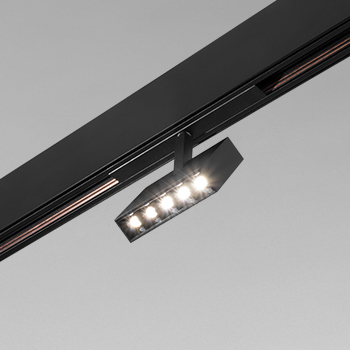

Constellation projector

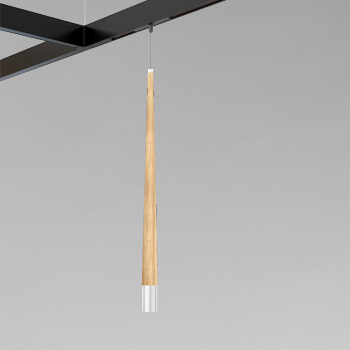

Chime Taper
DECORATIVE PENDANT OPTIONS
Expanding lighting design possibilities
Axis has developed a new line of decorative pendants to coincide with the launch of StencilFlex. These prewired luminaires feature three mounting options:
- In AxisTrak Inserts, with full adjustability along the low-voltage rail.

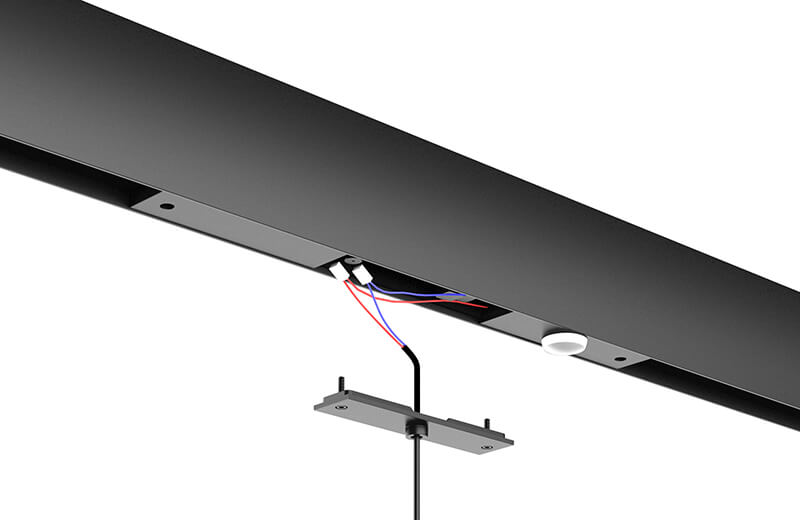

- Directly in segments using cost-effective MPIs (Mini Power Inserts).
- Standalone mounting directly on standard junction box (canopy provided; no need for remote drivers).
Decorative pendants
Compatible with AxisTrak™ inserts, MPI inserts and J-box mounting

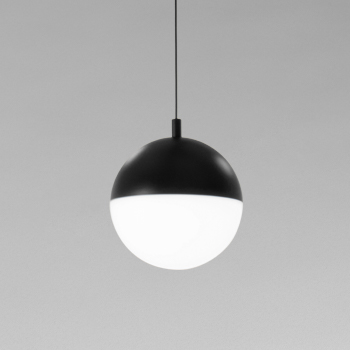

Luna Orb – pendant

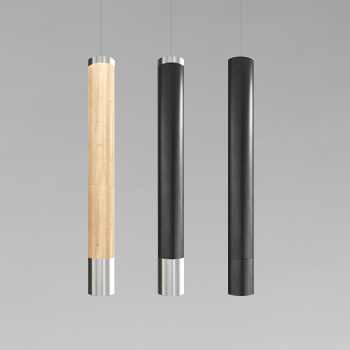

Chime Cylinder
Chime Taper

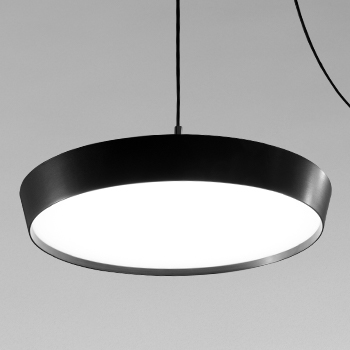

Helios Disk
Bring your decorative pendant exactly where you need it with available Swag Mounting.

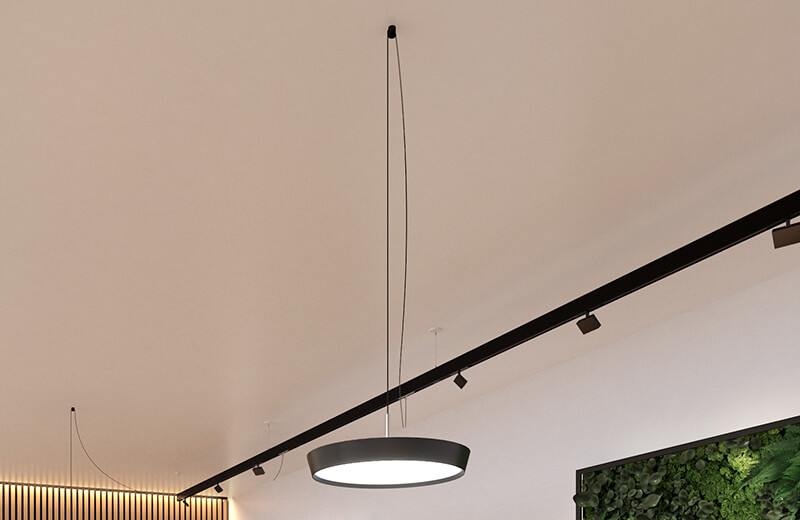

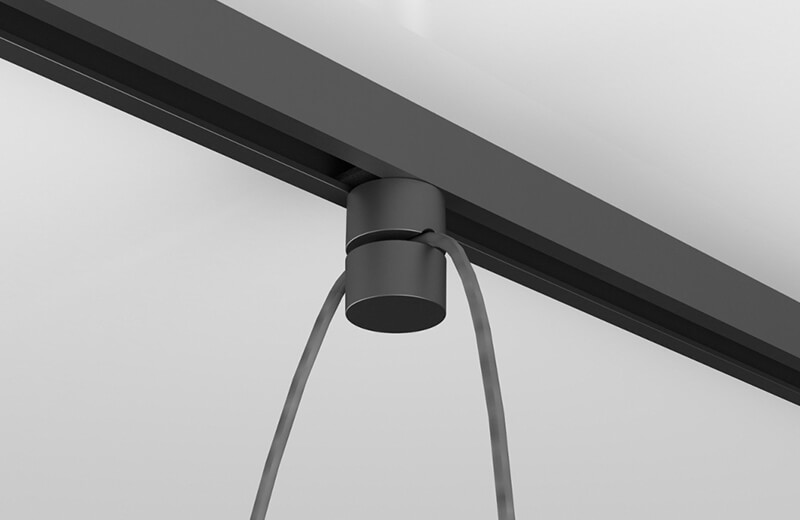

SWAG HOOK
SWAG RAIL WITH SLIDING HOOK

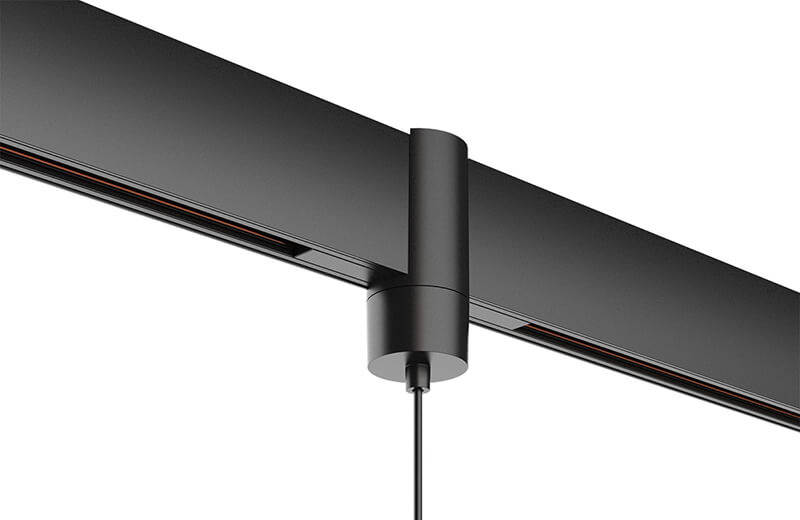

Universal Adaptors
In recognition that certain lighting projects require very specific esthetics, Axis also allows for the addition of third-party pendants to StencilFlex layouts, resulting in unlimited decorative lighting options. In other words, you can add ANY brand of decorative pendant, thanks to universal adaptors for AxisTrak and for MPIs (requires wiring by certified electrician).
UNIVERSAL AXISTRAK ADAPTOR
UNIVERSAL MPI ADAPTOR
Acoustic Panels
(SoftZone Horizontal)
ACOUSTIC PANELS
The SoftZone® difference
SoftZone provides unparalleled design flexibility for integrating acoustics in your StencilFlex layout. With SoftZone, you can create neighborhoods of intimacy where needed. SoftZone horizontal panels improve acoustics by trapping sound. The more sound absorption you need, the more SoftZone panels you use in the space. Features include a modular approach to meet evolving needs and 40 colors to choose from.
SOFTZONE
Easy-to-clean panels
Made from polyester fill with natural anti-microbial properties
- Periodic dusting with vacuum or dry cloth recommended.
- For stain removal, use a small amount of soap or detergent on a wet cloth.
- For added disinfection, use bleach solution (5 tablespoons per gallon of water), spray onto surface and gently wipe to spread all over.
STENCILFLEX™
The advantages of line voltage. The appeal of low voltage.

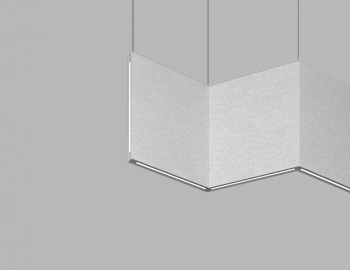

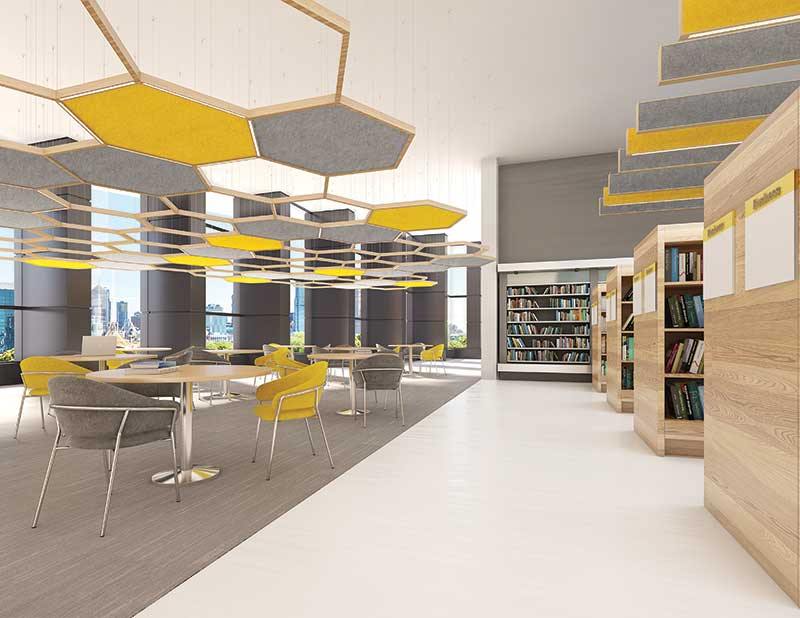

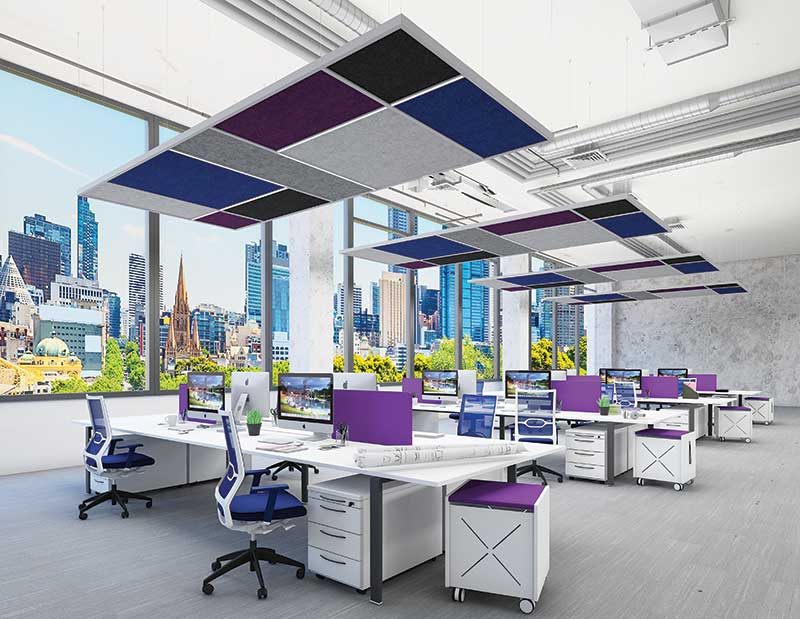

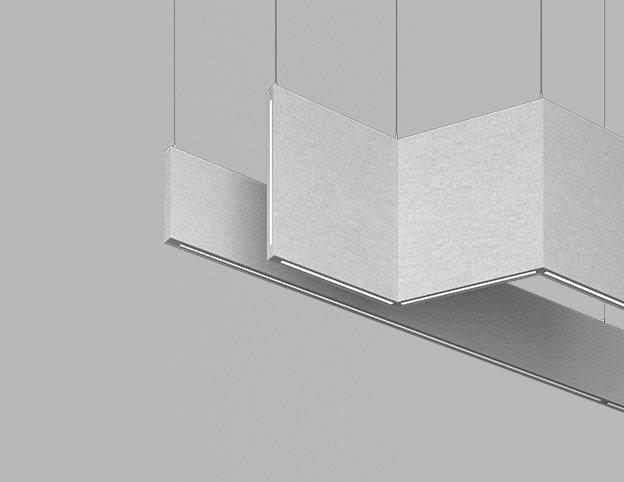

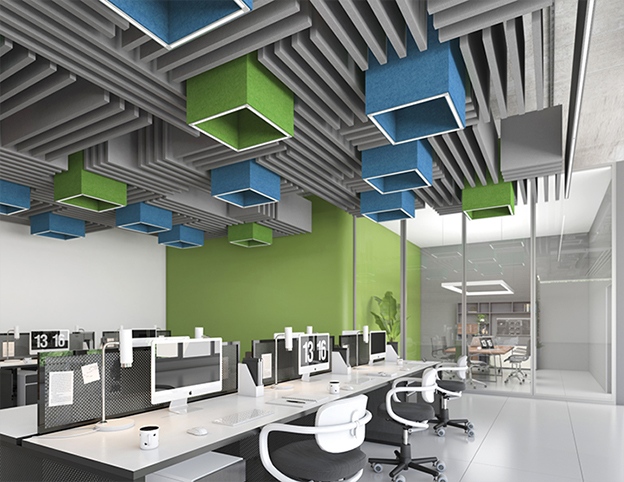

Spatial SoftZone & Sculpt™ SoftZone additions

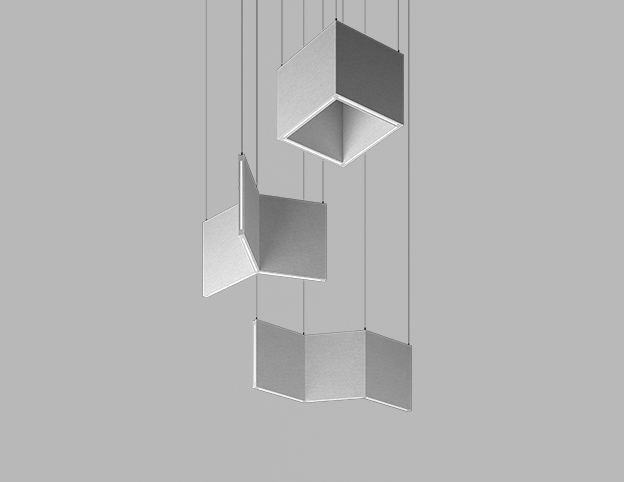

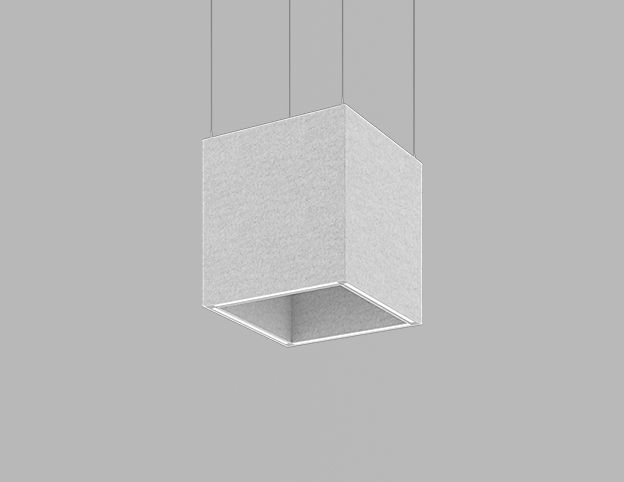

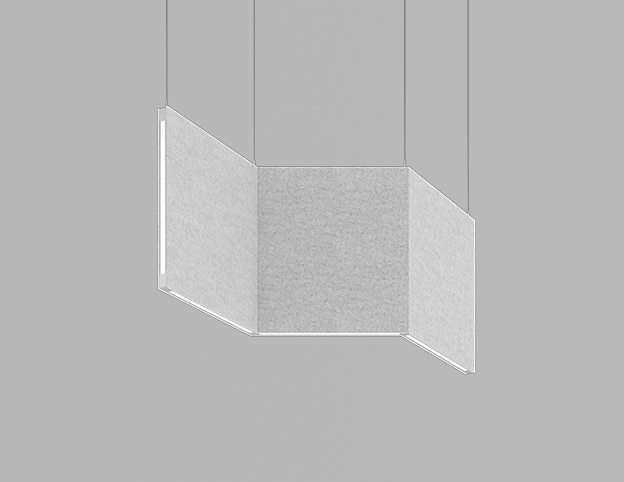

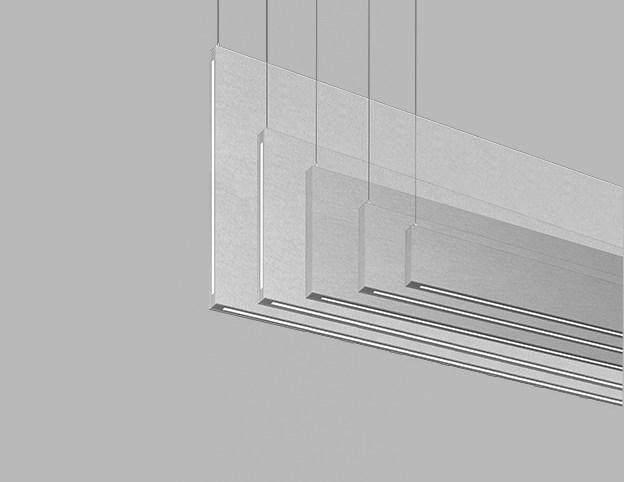

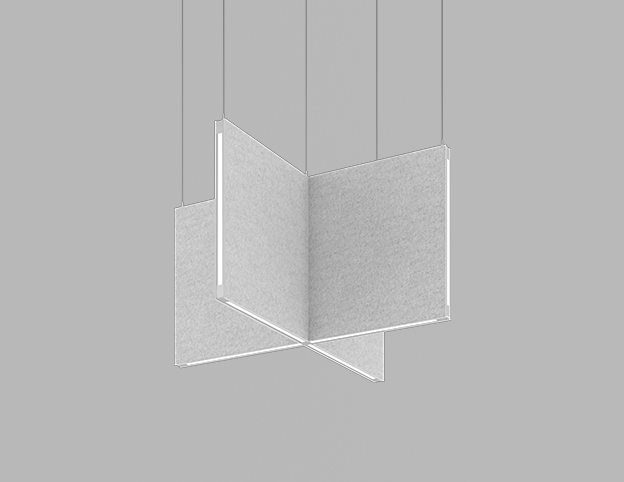

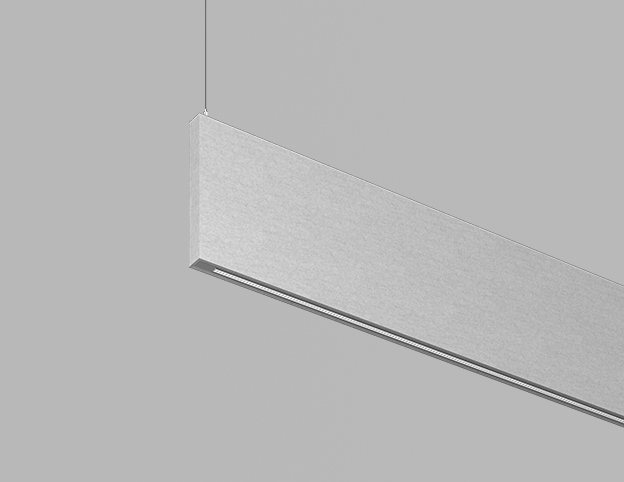

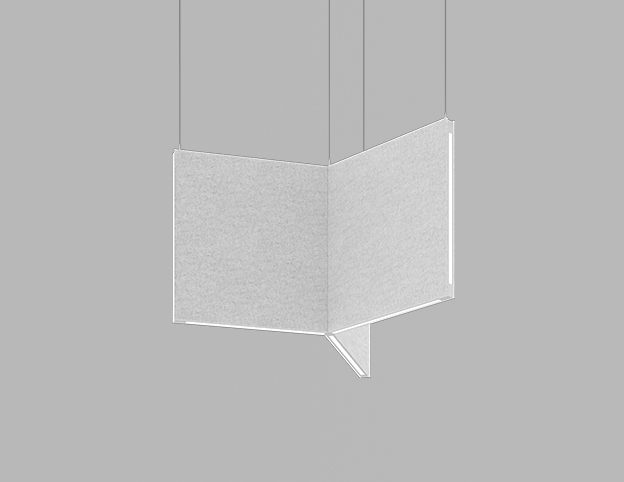

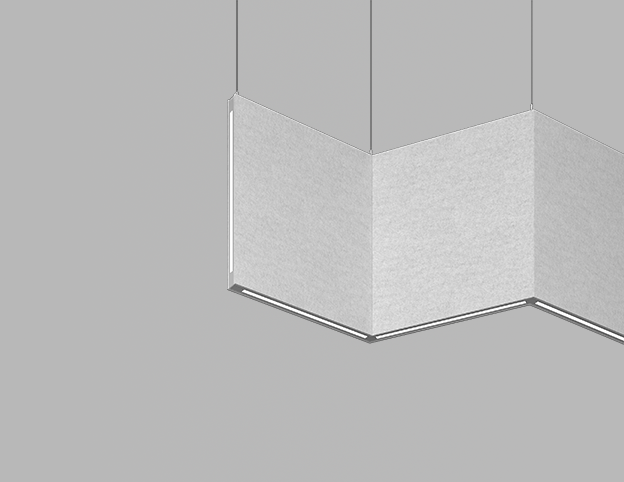

All-new Spatial SoftZone features the thin 1” aperture, proven lighting performance and superior design flexibility of Stencil®. Choose from an assortment of unique 3D elements, including linear solutions, squares, zigzags, open shapes and continuous forms.

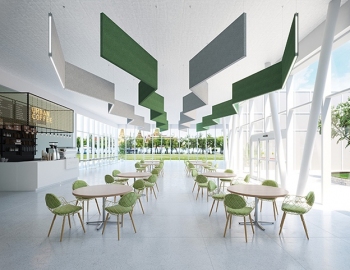

Spatial SoftZone offers a full range of lighting distributions, including direct, indirect and edge lighting configurations, a first in vertical acoustic lighting. In addition to sending light in different directions, you can have fully unlit segments.
Architectural Adaptability
Segments and panels come in varying lengths (up to 7’ standalone) and heights (up to 3’), extending the possibilities for coordinated layouts. Hairline panel joints make for practically seamless continuous runs, enhancing architectural integration.
Sculpt™ SoftZone Additions

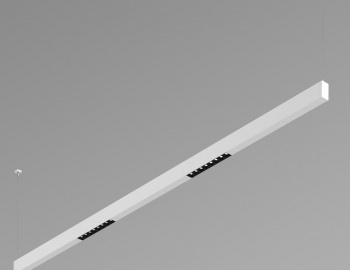

Combine SoftZone vertical panels with Sculpt Pendant luminaires to design appealing acoustic lighting environments that add linear rhythm while softening ambient noise levels.
Now available in long continuous runs (longer than 8’) with minimal hairline joints and 8” panel height!
Extended Custom Palette
Extended custom color palette panels available upon request.
Consult your Axis representative for details.
Beam: More Options, Even More Versatility
Can you make a great product even better? Axis did.
These additions include BATWING, NARROW, and GRAZE distributions.
Spec sheets have been updated on our product webpages. Check them out:
And that’s not all. Additional updates are in process and coming to you soon:
- New Beam 2 DIRECT OPTICS: Asymmetric, Batwing, Narrow, and Graze
- New INDIRECT BATWING OPTIC on Beam 2, Beam 3, and Beam 4
Axis knows that making a good thing better is great.

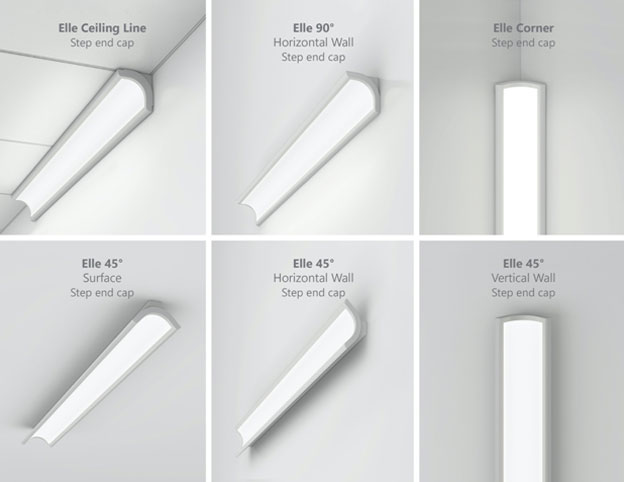

Elle™ – Graceful luminous statements

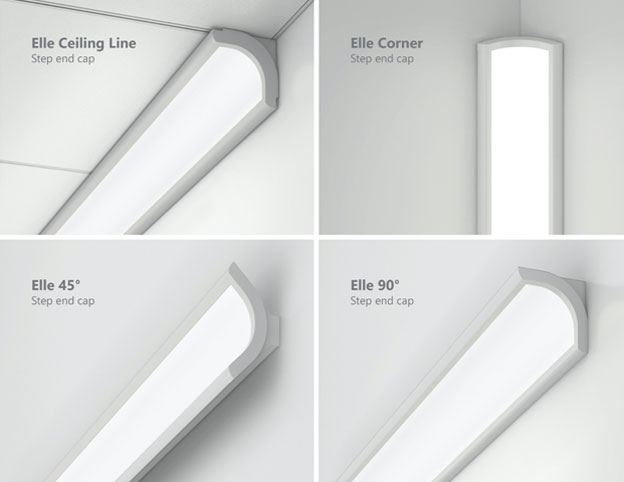

Introducing Elle, a streamlined, concave lighting instrument that blends into the space. As the feathered, esthetic glow plays off surfaces, luminaire and architecture work together and become the lighting system.
Compared to similar-sized luminaires, Elle can deliver the same light output over a greater surface area owing to the curved form of the lightguide. This results in softly feathered luminance and superior visual comfort.
Stylish Alternatives: One Look, Multiple Mounting Options
Designed to mimic moldings, Elle is a welcome addition to the architectural lighting toolkit, with lines of light, corner lighting and wall sconces. Given its streamlined look and wide-ranging functionality, Elle is a perfect fit for a wide range of lighting applications.
Illuminating Insights: Paul Daniel
Boasting a long list of lighting design achievements, particularly in the medical sector, Paul Daniel discusses the impact of technology on the lighting and design of healthcare spaces, and how lighting is a key asset in healing.
Pose® – Ribbons of Light
Beautiful can also be practical. One or two illuminated sides. Two mounting surfaces. Three mounting planes. Endless design possibilities.
Esthetics. Performance. Versatility.
Combining superior esthetics, quality performance and unparalleled versatility, Pose offers new opportunities to capture the beauty and benefits of true asymmetric lighting without angled optics or bulky mounting hardware.
With its clean lines and lightweight aluminum construction, Pose appears to be floating. Its streamlined look is enhanced by a smooth, pixilation-free uniform lens.Go for one or two illuminated sides, and choose between two optics – true SurroundLite™ asymmetric distribution or a soft Lambertian glow – for a total of eight combinations to choose from. On any of its three mounting planes, Pose can be installed with the driver compartment pointing up or down, horizontally or vertically. In addition to continuous runs, Pose can be used in patterns and corners, as well as in coves.
SoftZone® – Architectural Acoustic Lighting Solutions
Acoustics play an important role in occupant performance and well-being in office interiors. Noisy, open office areas, sound-reflecting surfaces and other low-absorption design elements can increase the background din, distract occupants and contribute to lower productivity in the workplace.

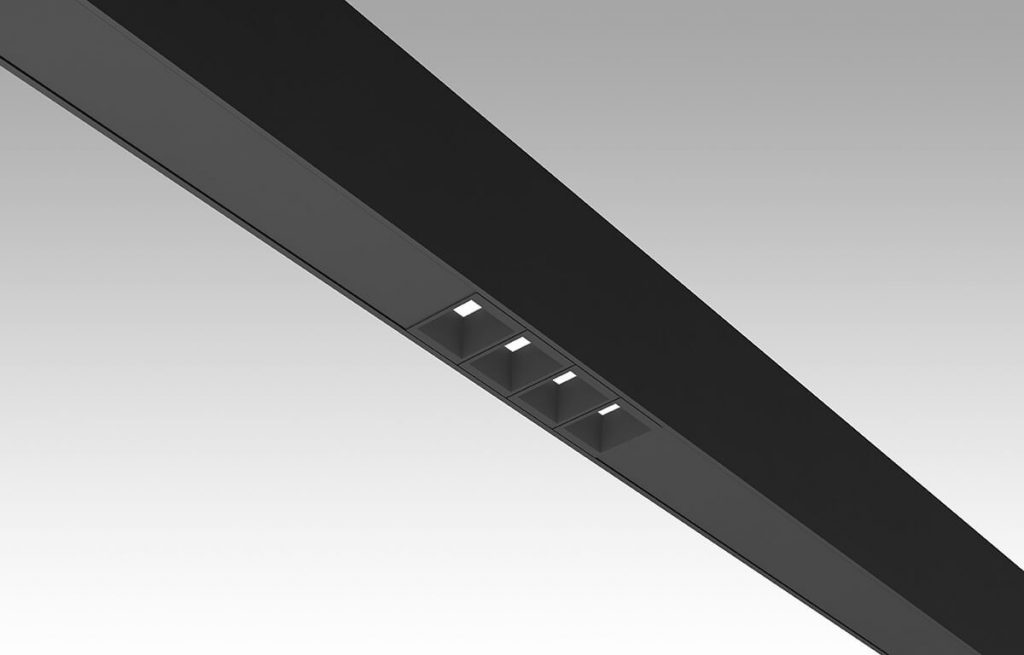

MikroLite™ – Visually Discreet and Yet so Powerful
Miniature linear downlight technology delivering exceptional efficacy and superior design flexibility… Another leading-edge innovation from Axis Lighting.
Zen Family – Architectural Downlight featuring SurroundLite®
Zen’s and Zen Square’s patented inverted “U” form provides soft, comfortable LED lighting. It emits more downward luminance from the top than from the sides.
Illuminating Insights: Peter Hugh (I.I.)
With a creative approach rooted in Zen and Daoism principles, Chicago-based lighting designer Peter Hugh shares his views on how theatre has influenced his craft and on the importance of developing genuinely people oriented luminous environments. In addition, Hugh discusses the current state of the lighting industry, offering insights on the need for manufacturers to evolve with more adaptable products and on the new challenges for reps. Unafraid to bend the rules to deliver lighting for people rather than for effect, Hugh also mentions stepping back during the pandemic to rethink his trade, revealing boldness through vulnerability in his quest for renewal and new ideas.
BalancedCare™: Healthcare lighting without compromise
Axis Lighting is proud to introduce BalancedCare™ – Healthcare Lighting Without Compromise. Finally – lighting solutions that address ALL the requirements of today’s complex healthcare environment, including exceptional visual comfort with a pleasing aesthetic:
- High-performance BeWell™ Optics
- Certifications and listings that matter in healthcare applications
- BeWell™ Technologies that include intelligent patient bed control compatibility and spectral programmability provided by Axitune™ and BIOS SkyBlue® technologies
- Ease of installation and maintenance with BeSealed™ Construction
- Options for circadian support that enhance wellness and improve patient outcomes
Illuminating Insights: Barbara Horton (HLB)
In a career that spans more than 30 years, Barbara Horton is a driving force in the lighting industry. We sat down with Barbara for an intimate conversation about her career path, inspirations and advice for those starting out in the business. Horton, the H in HLB Lighting Design, is especially energized about what she and her team have been doing during the pandemic to pivot the business and develop new opportunities.

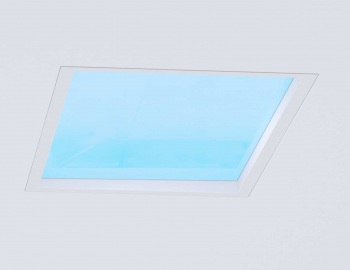

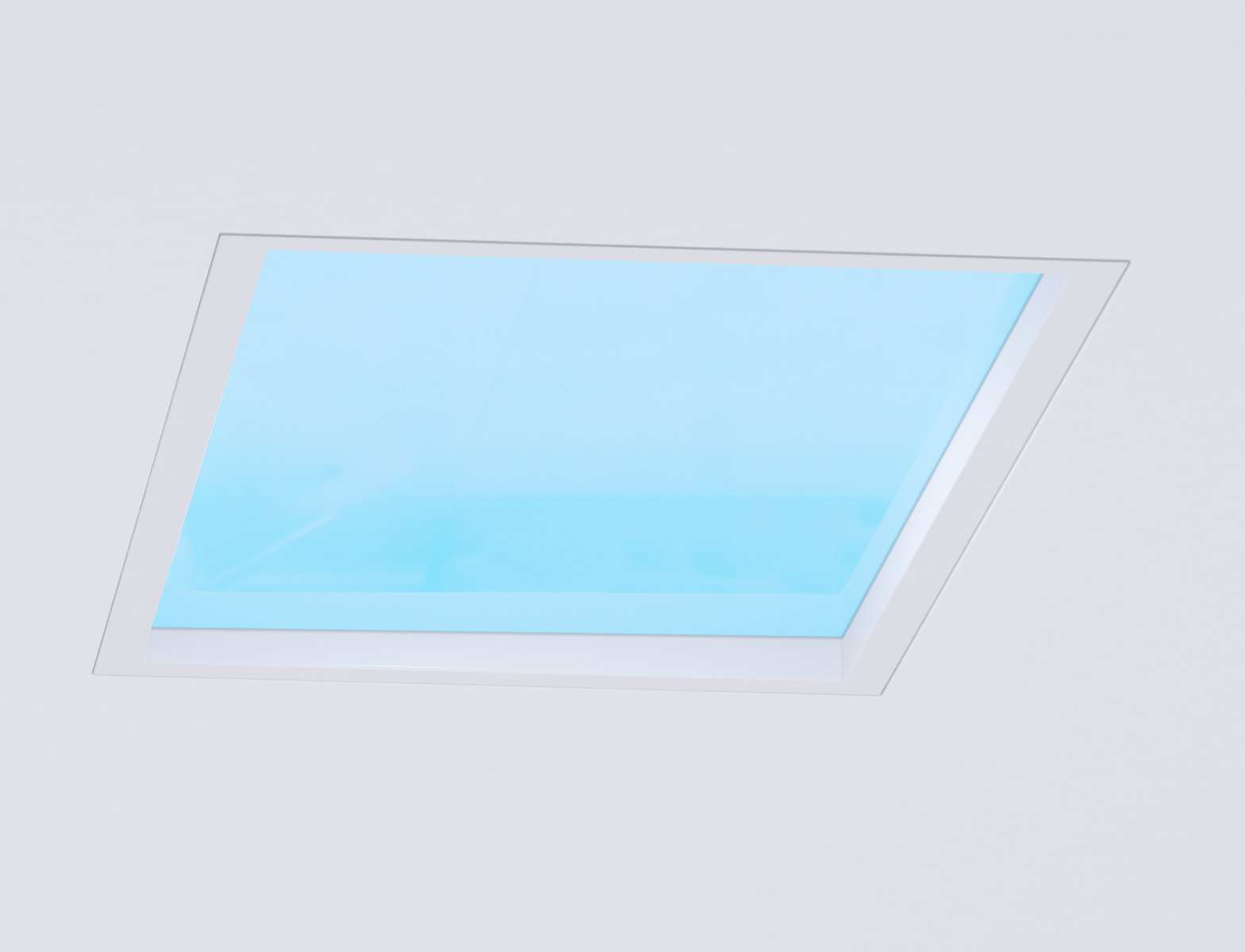

CoeLux®
Turn on the sky

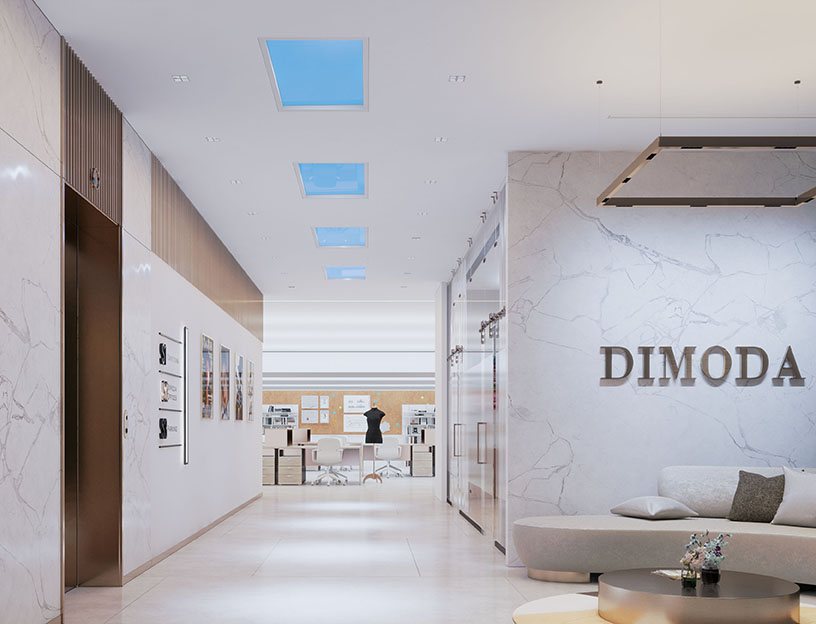

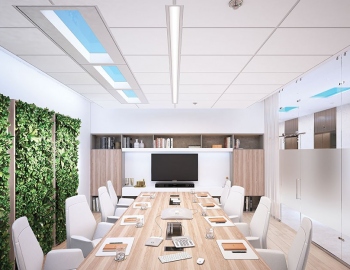

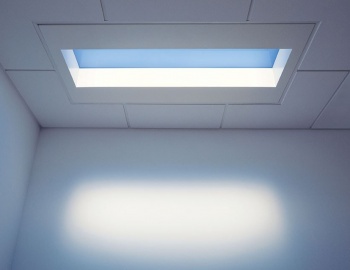

Thanks to exclusive technology from Italy, CoeLux reproduces the sun’s movement, the sky’s infinite depth and the associated beneficial effects of natural light like no other product in the world. You feel the physical effects of daylight because the experience is so real. The CoeLux system tricks the mind by reproducing the Rayleigh scattering effect, using LEDs to create the full spectrum of sunlight and mimicking the distance between sun and sky.
The Long Sky (LS) systems come in three versions with skylight openings that measure approximately 4’ x 1’. They can be used individually or aligned in runs to form a hallway of light delivering more depth perception.
A 45-degree beam and sliver of light transforms your experience of indoor illumination by precisely creating the look and feel of blue skies on a sunny day. When standing in the light beam, you can see the sun “follow” you as you walk along the length of the skylight – just like you do in real life.
The new HT 25 system is the first of a family of low-profile luminaires by CoeLux®. Its distinctive 9.8” (25 cm) depth is ideal for shallow plenums. The HT 25 features a zenithal sun peaking through a slightly frosted sky. The infinite sun overhead allows for a seamless array of fixtures, as the sun appears to emanate from the same source no matter the angle of the viewer. This immerses the user in the full experience and reinforces the illusion of looking at the real sky. The 2’ x 4’ luminaire is suitable for recessed installation in modular and drop ceilings.

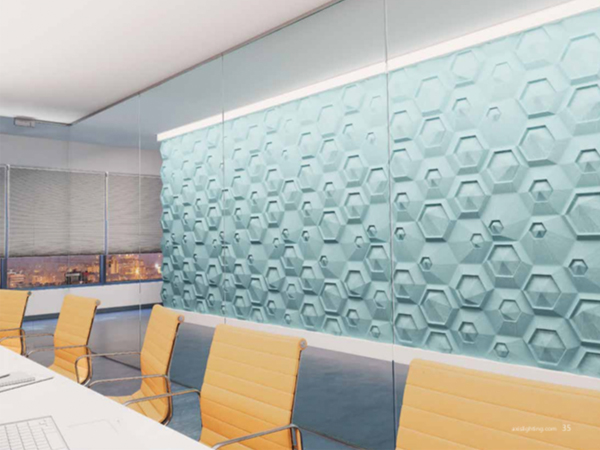

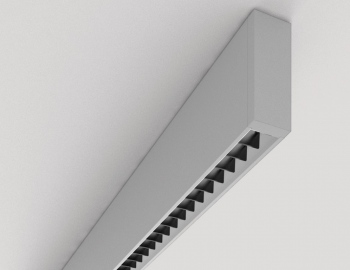

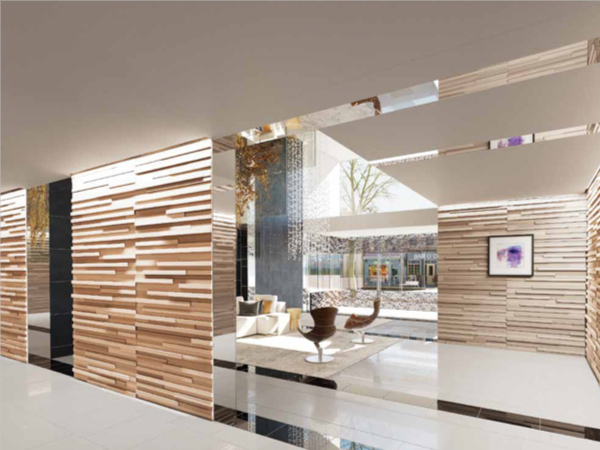

Graze Perfekt™
Innovative optics for high-appeal grazing

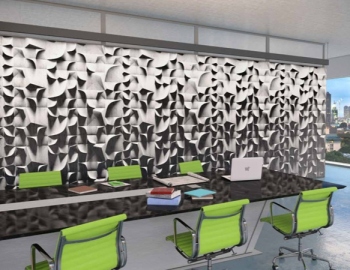

Graze Perfekt combines high-performance wall grazing optics and the 1.5″-wide aperture of the Sculpt housing. The luminaire is designed to do more than highlight wall textures and enhance the space with dramatic wall grazing effects. Its innovative and compact linear silicone TIR (total internal reflection) optic delivers a precise, consistent, wide-beam angle (10º x 100º) without color-over-angle artifacts. To facilitate and accelerate installation, Graze Perfekt features field-cuttable modules for a precise finish. With its wide spread of light, the silicone TIR optic ensures consistent graze effect between modules.
Sculpt & Stencil SoftZone™
Improve workplace acoustics with style
Increase privacy in collaborative spaces, improve speech clarity in conference rooms or reduce reverberation in an area.
SoftZone provides unparalleled design flexibility for creating architectural pendant lighting with effective sound attenuation properties (per-unit Noise Reduction Coefficient (NRC) of up to 1.05). It features a modular approach that lets you vary the quantity of panels required to achieve the desired level of sound absorption. Available in over 15 colors, SoftZone panels are made of Class A fire rated and moisture resistant polyester containing recycled PET plastic that is easy to clean and maintain.
Combine SoftZone vertical panels with Sculpt Pendant luminaires to design appealing acousting lighting environments that add linear rhythm while softening ambient noise levels.
Stencil SoftZone provides superior cost-effectiveness. The same amount of SoftZone material in horizontal panels provides almost twice the sound absorption of vertical panels. Horizontal SoftZone panels also capitalize on the exceptional design freedom of Stencil Pendant. Together, they provide an effective, one-of-a-kind design tool for creating a wide variety of forms and patterns.
MikroLite™ 1.5
Visually discreet, yet very powerful
Recognized by the 2018 IES Progress Report, MikroLite 1.5 downlights feature a 1.5” square-in-square optical system that delivers superior visual comfort and flawless color mixing. Its tunable precision optics produce streak-free vertical surfaces. It is the first high-performance (up to 111 lm/W), high-CRI (90+), glare-free, color tunable linear micro downlight that is so powerful (up to 1100 lm/ft), it can be used for both general lighting and high-ceiling applications.
MikroLite 1.5 optics can be integrated into Sculpt, Beam 2 and Beam 4 luminaires. Also available as elegant small-scale Pixel downlights.

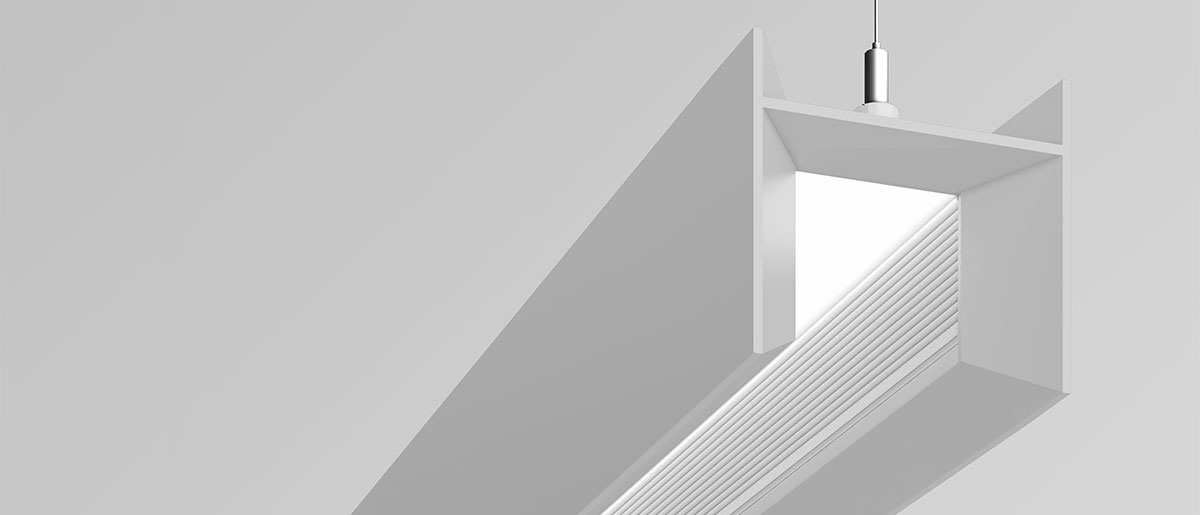

Zen Square
SLEEK LUMINAIRE DESIGN
Superior lighting power and visual comfort

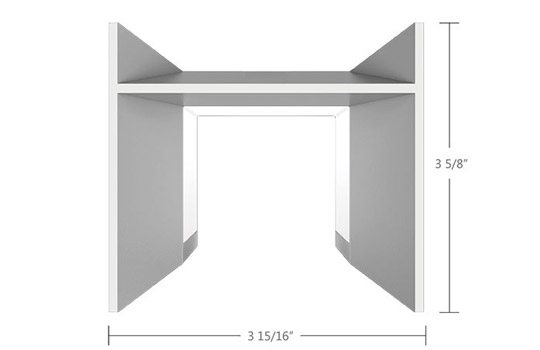

Zen Square’s patented inverted “U” form provides soft, comfortable LED lighting. It emits more downward luminance from the top than from the sides. The pendant version uses SurroundLite optics to open up the space by delivering ample, glare-free downlighting and reflected light throughout. Luminaire also available in a Zen version.
THE SURROUNDLITE STORY
Adding dimension to LED lighting
High-performance SurroundLite optics produce a visually appealing, non-Lambertian, 3D spherical batwing light distribution.
- Uniformly diffused lighting similar to daylight
- Wide planes of light in all directions: ceiling, corners, walls
- Reduced contrast on the ceiling, improving visual comfort
- Wide spacing, resulting in fewer luminaires needed to light a space

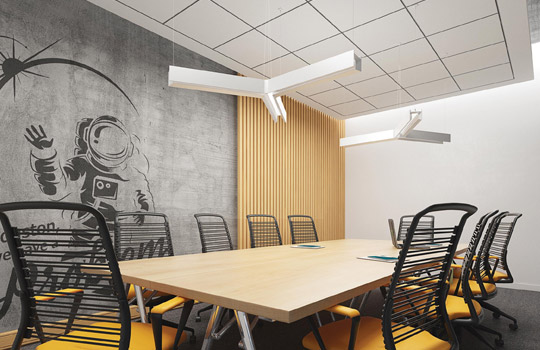

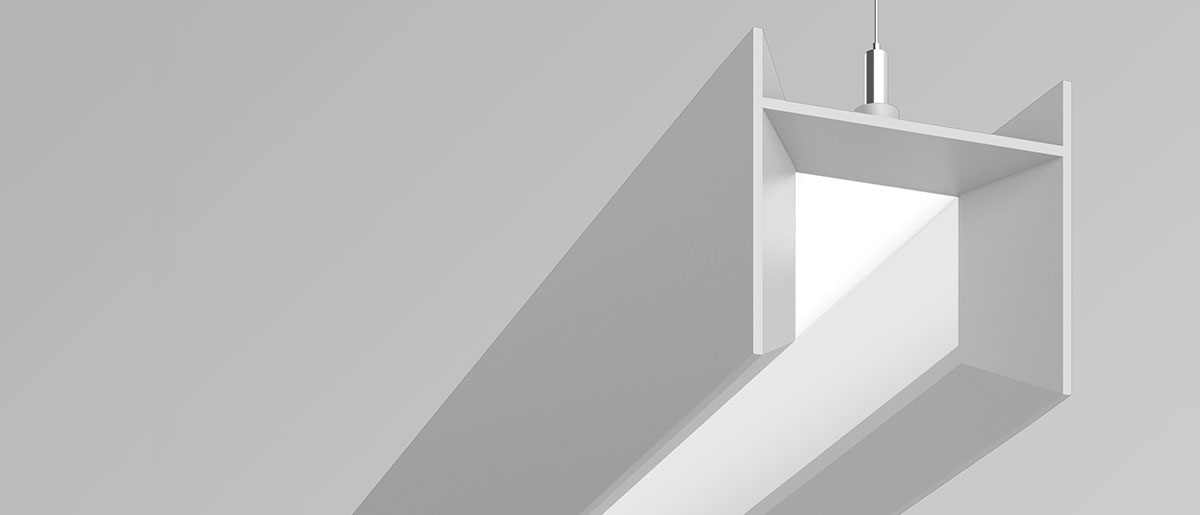

ZEN SQUARE FORMS
Powerful, elegant pendant alternatives
Take pendant lighting concepts to new heights with the graceful presence of Zen Square Forms. The available Y- and X-shaped luminaires generate significant visual interest against the ceiling line while creating opportunities for appealing neighborhoods of light, rhythmic layouts and unique configurations. Suited for low- and high‑ceiling spaces, Zen Square Forms offer three direct-indirect lighting distribution options. Outputs range from 500 to 1350 lumens/ft. Choice of open- or closed-hub designs.
CONVENIENT AND COMPACT

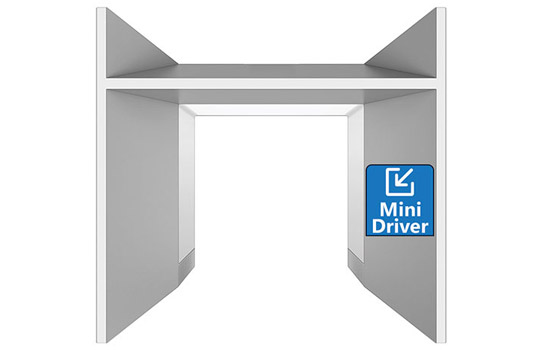

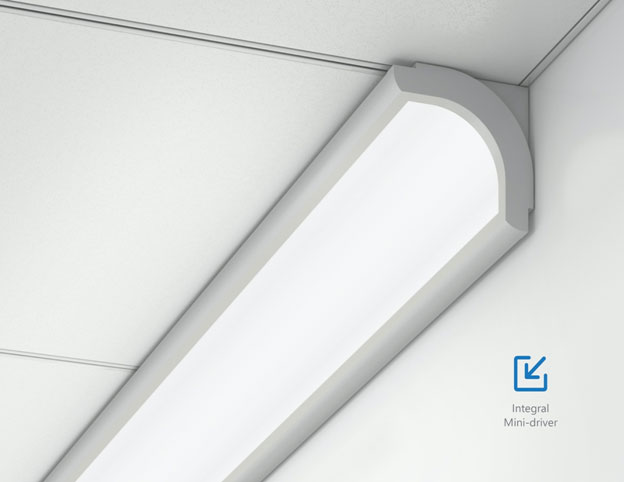

Integral LED mini-driver
