UP Family Outdoor Ingrades
Kreon Up is a range of IP67 rated luminaires characterized by its minimal appearance and optical functionality. Available in square or circularin three sizes. Finished with black or white backed toughened glass with satin stainless-steel trim. LED modules are deep-set within the luminaires and are controlled by a choice of anti-glare louvers for precise uplighting; brightness limiting diffuser for ambient or orientation lighting; wallwash optic for vertical luminance. Kreon Up is also available with several glass decorative enclosures.
Kreon Up benefits from a stainless steel trim that provides a seamless juncture to minimize integration. The units are sealed to IP67 and feature an aluminum and plastic housing to provide protection from the harsh environments. The marine grade versions are specially pre-treated for maximum protection against corrosion in salty environments.
UP Family Key Features

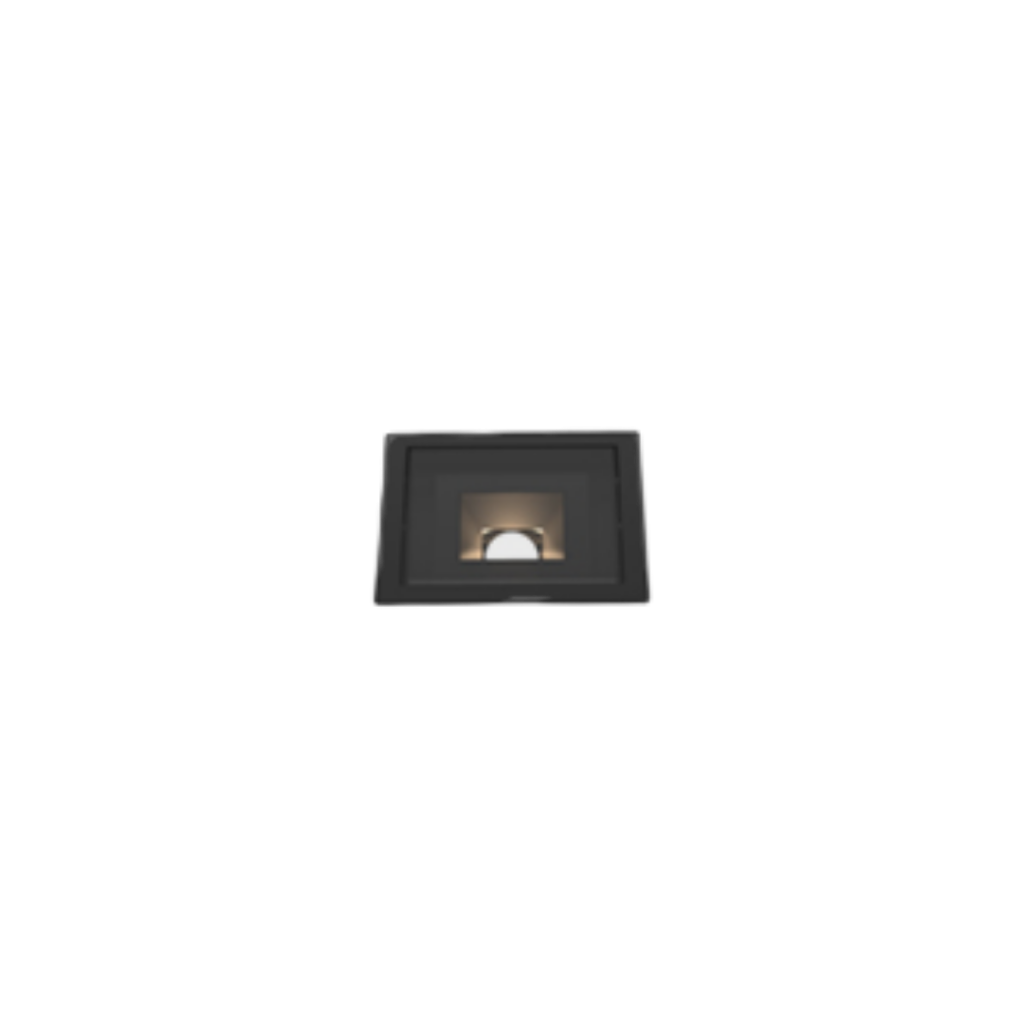

Up 40
- Recessed luminaire for floors
- Dimming: 0-10V / dim to 1% / dim to dark / ON-OFF / phase dimming
- Visible dimension: 1.5” round/square
- Output: Up to 150 Lumens
- CCT: 2700K / 3000K
- CRI: 90+
- Beam angle: spot (21°) / flood (26°)

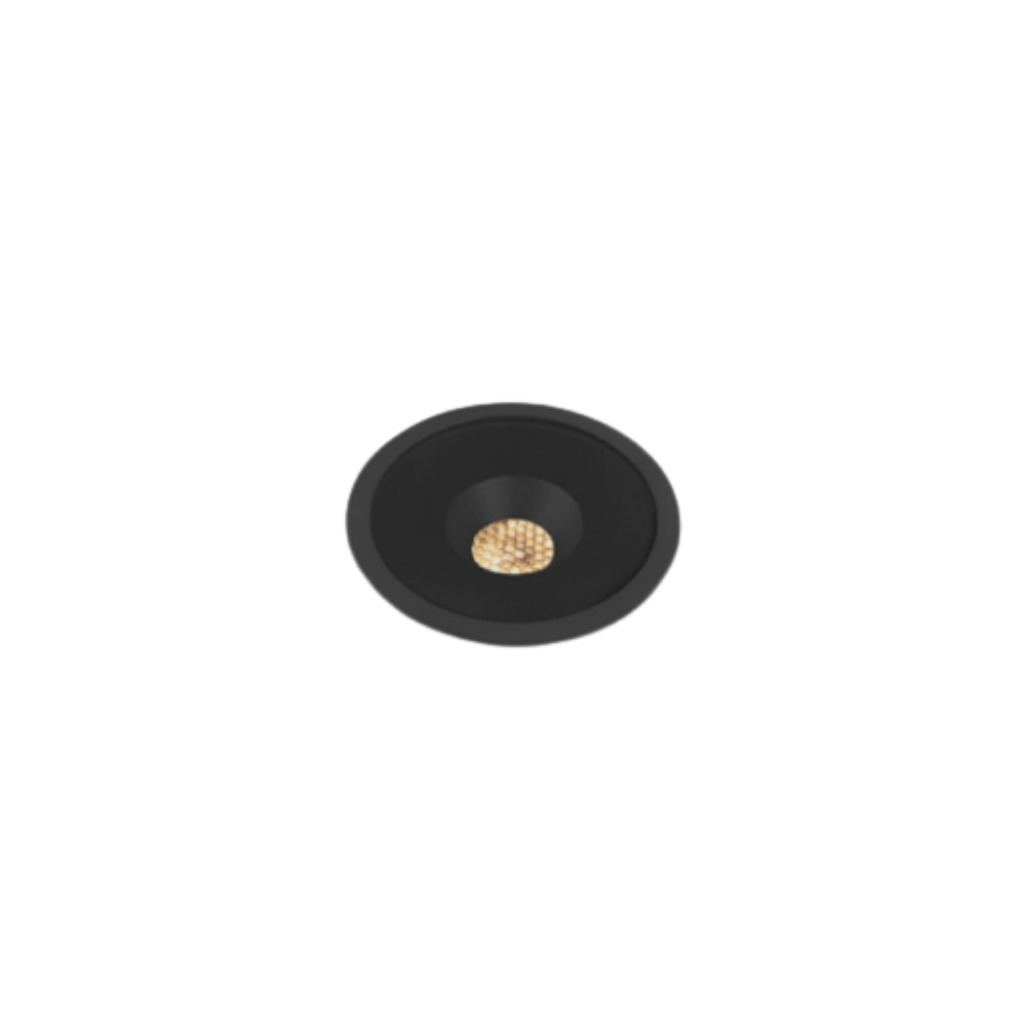

Up 80
- Recessed luminaire for floors and walls
- Visible Dimension: 3 ¾” round/square
- Output: 346lm / 263lm / 341lm / 293lm / 111lm
- CCT: 2700K / 3000K
- CRI: 90+
- Distribution: spot (21°) / wallwasher / flood (29°) / wide flood (38°) / diffused (38°)
Up 80 Circular Freeform Stub
- Semi-recessed luminaire for floors with decorative glass
- Dimming: 0-10V / DALI / dim to 1% / dim to dark / ON-OFF / phase dimming
- Dimensions: 7′ 7/8″ – 9′ 13/16″ x 2′ 13/16″
- Output: 152 Lumens
- Color temperature: 2700K
- CRI: 80+
